Radiator Cooling Fan Temperature Sensor / Switch
>>
Locations
>>

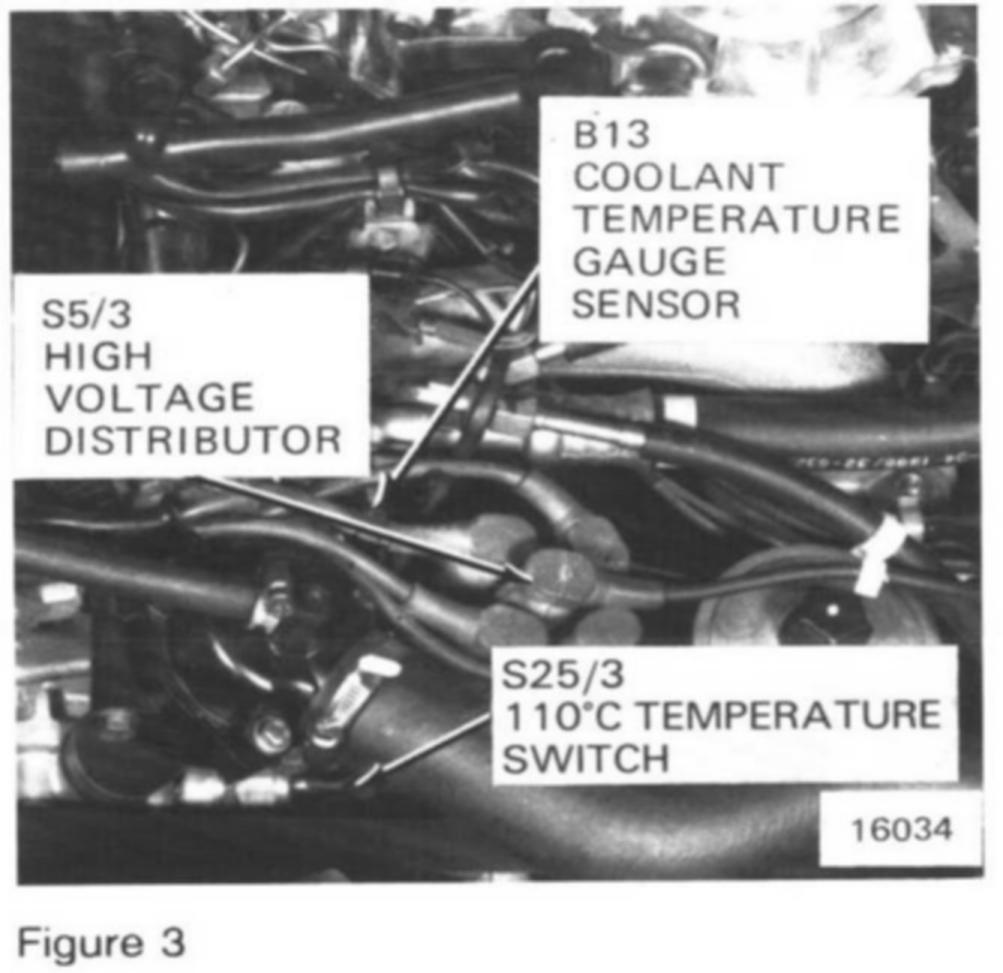

110 Degrees Temperature Switch
110 Degrees Temperature Switch
Component ID:
S25/3
Component Name:
110°C Temperature switch
Component Location:
Top front of engine
