Home >> Mercedes Benz >> 1986 >> 190E 2.3 (201.024) L4-2.3L (102.961) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Park/Tail/Marker/License

Park/Tail/Marker/License

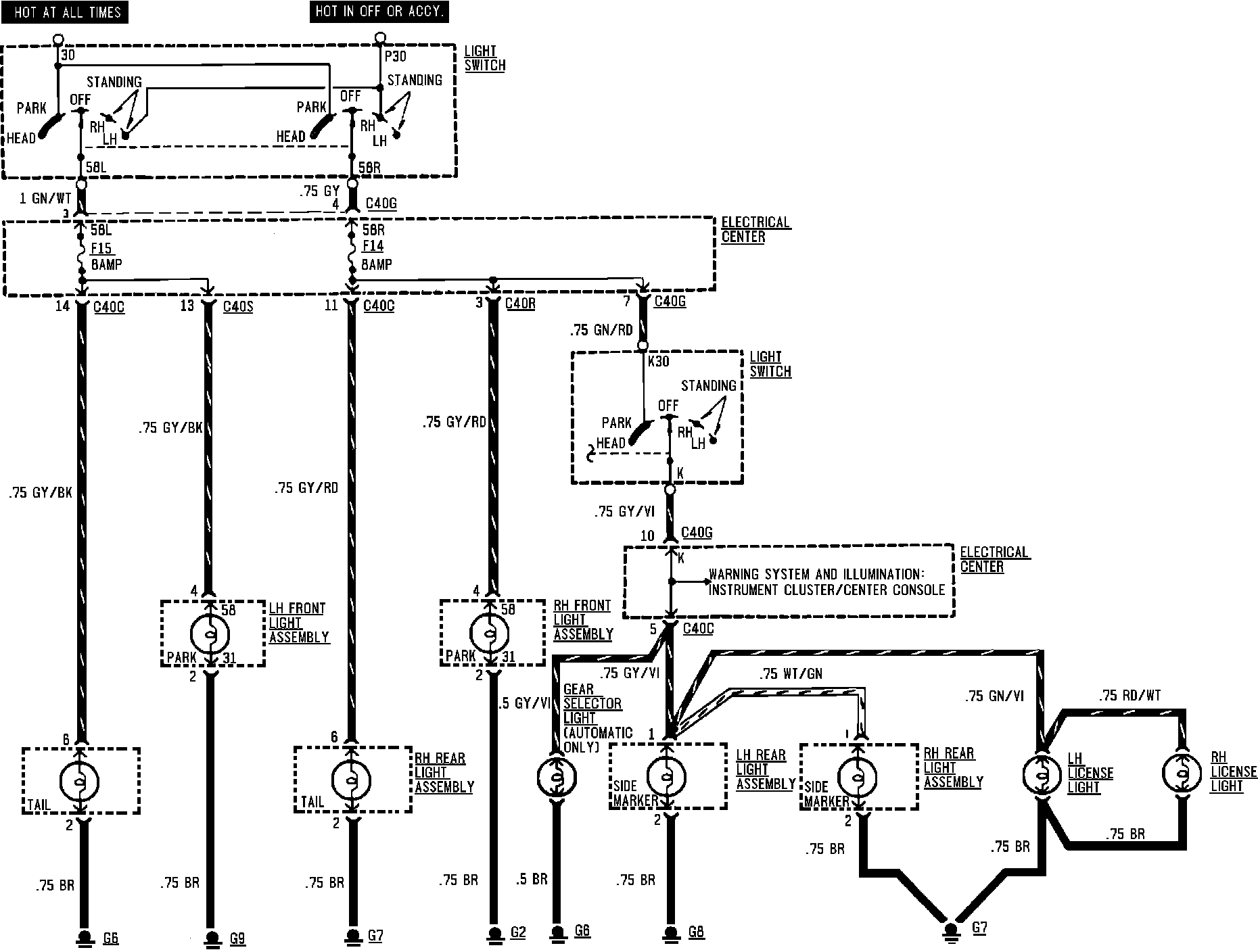

Fig. 34 License Plate, Parking, Side Marker & Tail Lamp Wiring:
