Seat Temperature Control Module: Locations

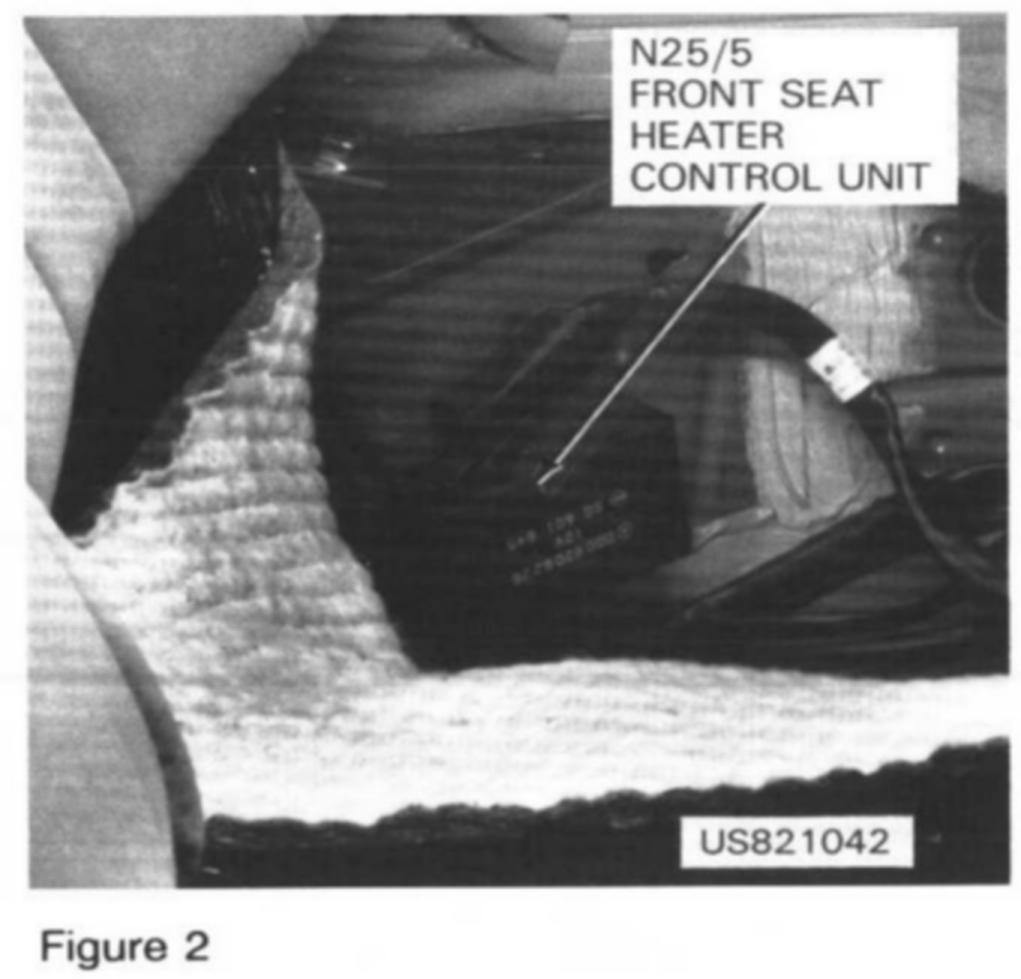

Component ID: N25/5
Component Name: Seat heater control unit (front)
Component Location: Under left side of rear bench seat
