Removing/Installing Rear Door Element

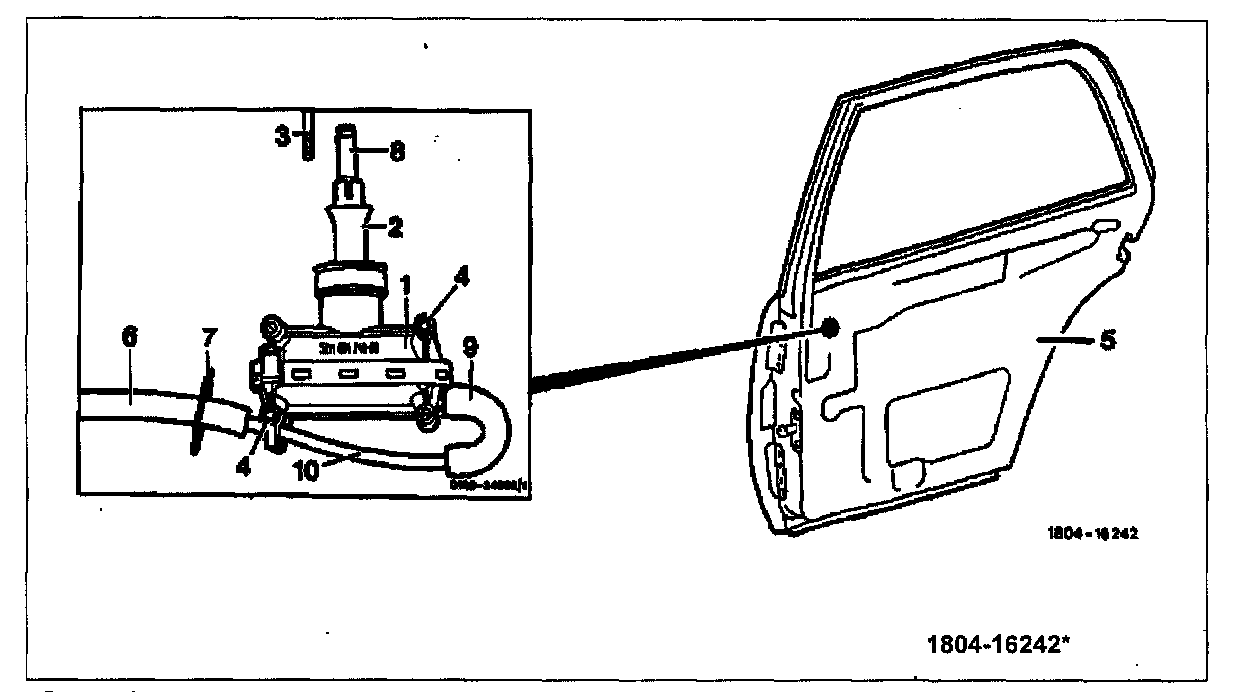

Removal and installation of rear door element





- Remove door lining (5).
- Push back sliding sleeve (2).
- Push out control rod (3).
- Loosen screws (4).
- Disconnect element (1).
- Pull off pneumatic pipe (6).
- Check pneumatic pipe (10) and shaped hose (9) for damage.
- Check pneumatic function of the element (1).
- Bring element (1) in installation position. Fully push back sliding sleeve (2) and pull control rod attachment (8) out until it engages.
- Install element (1) in reverse order.
- Shift rubber washer (7) up to the opening for the protective hose in the rear door
