Single Door System

Component arrangement

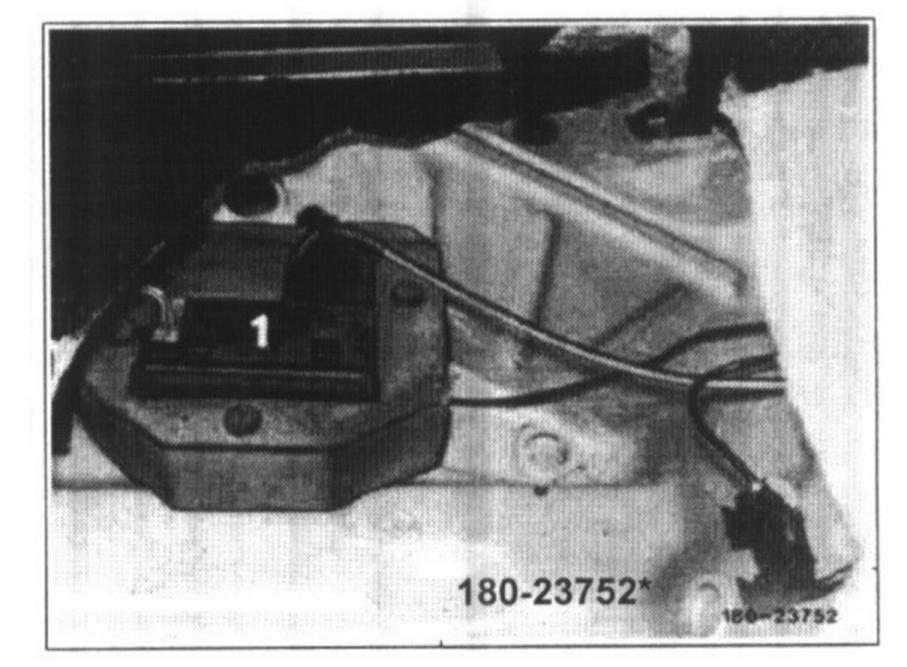

1. Supply pump



below the right rear seat

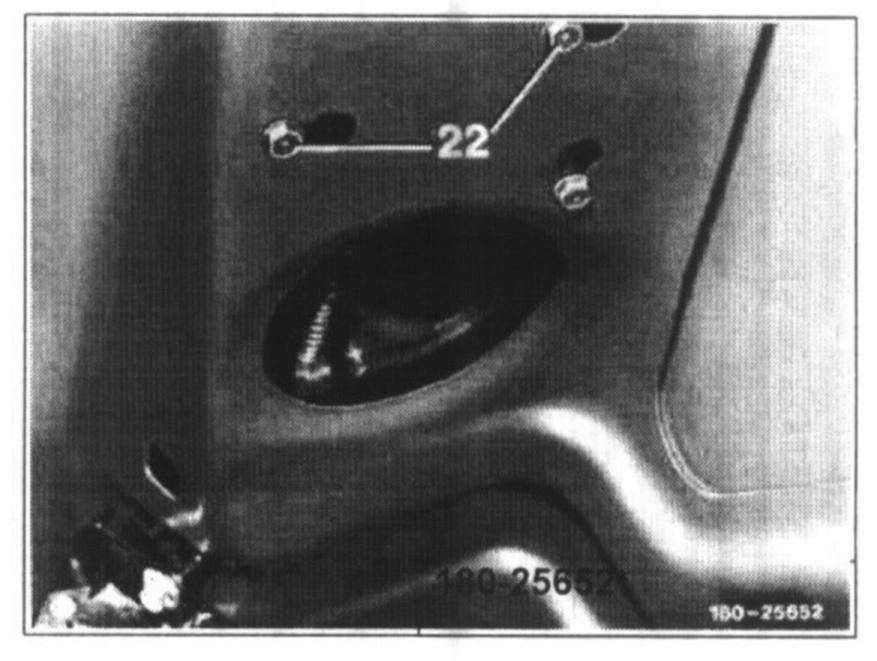

2. Switch in the driver's door



22 Mounting screws

3. Operating elements

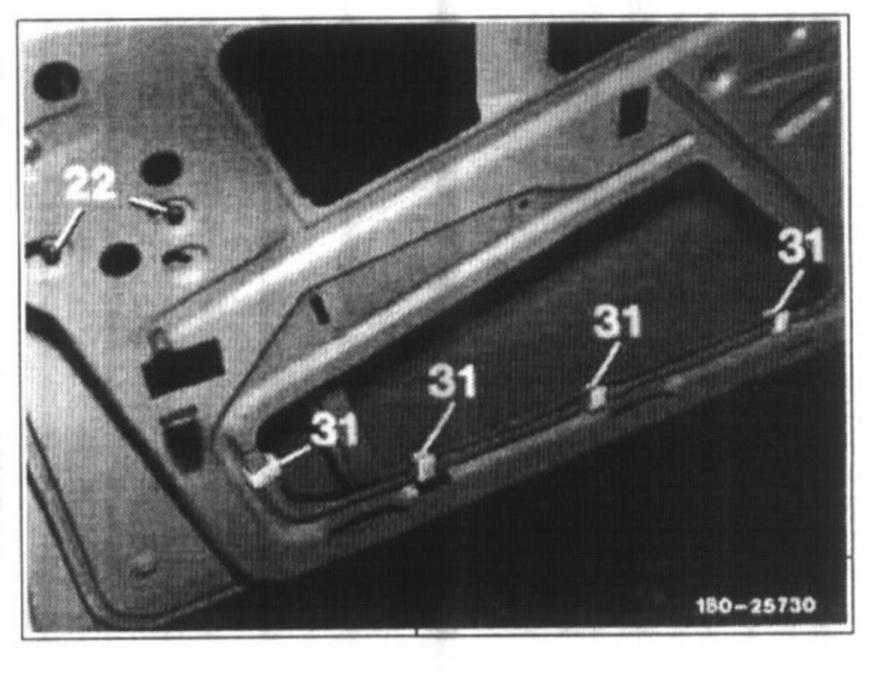

Front passenger door
22mounting screws

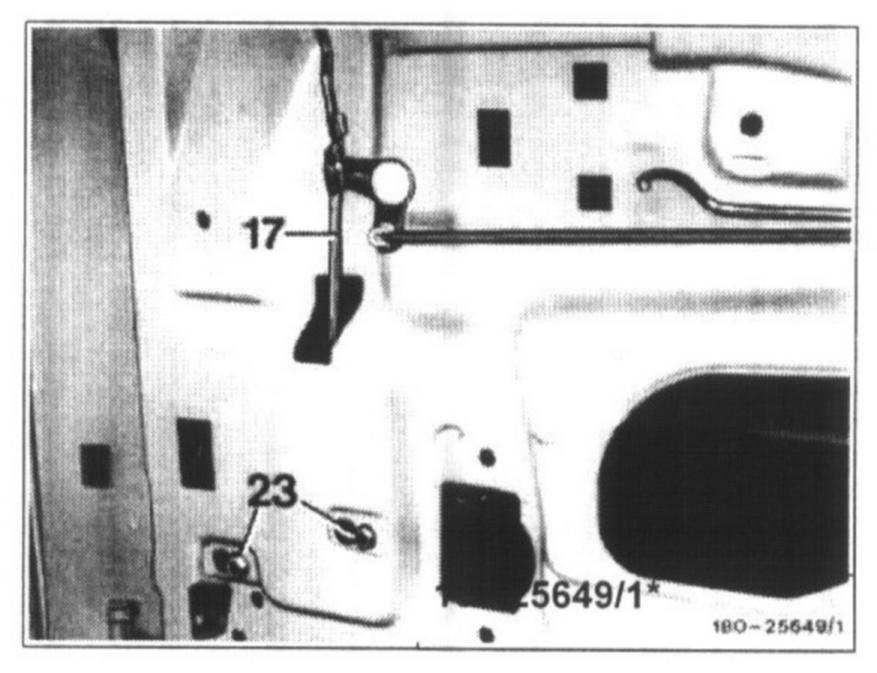

Right rear door (left side mirror image)
23 mounting screws




Fuel tank flap behind the right trunk lining




Trunk lid
22 mounting screws
