Removal and installation of cover on shift lever

Removal

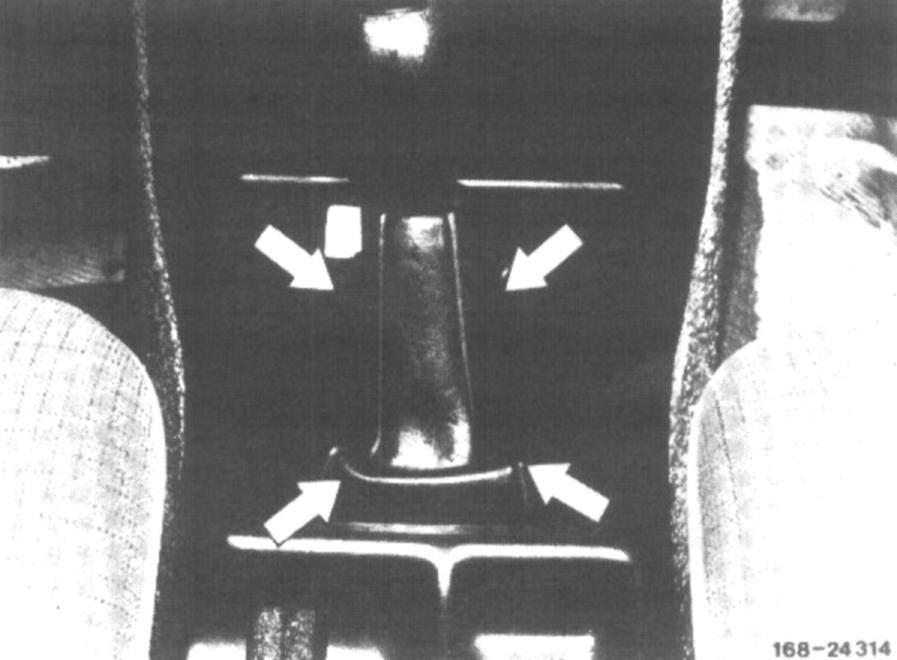

1. Disconnect rubber sleeve on cover.

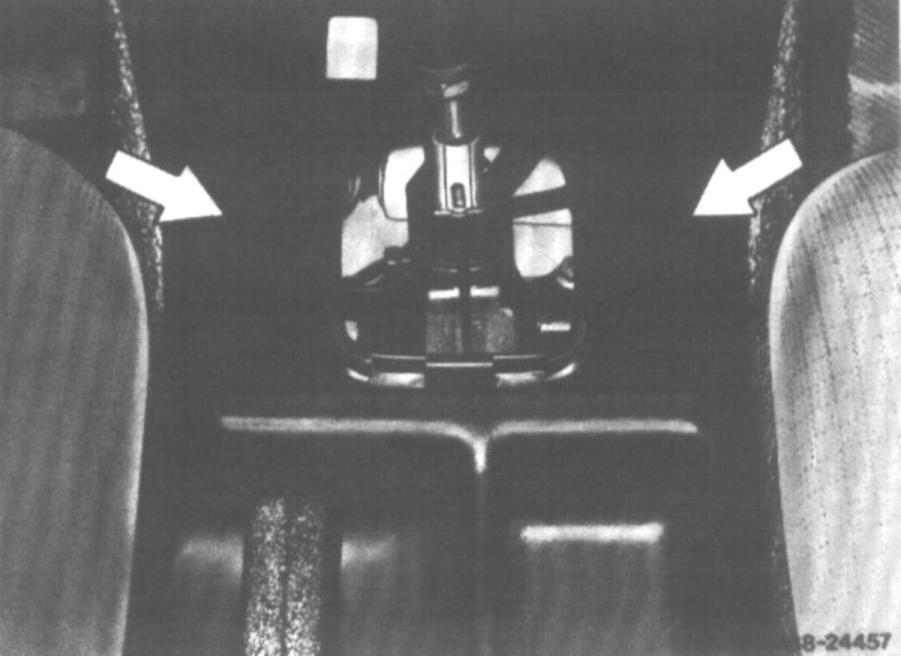

2. Pull off plug connections on switches and remove cover.
3. Separate plugs from switches and remove cover toward the rear.

Installation

4. For installation proceed vice versa
