Power Trunk / Liftgate Lock Actuator: Locations

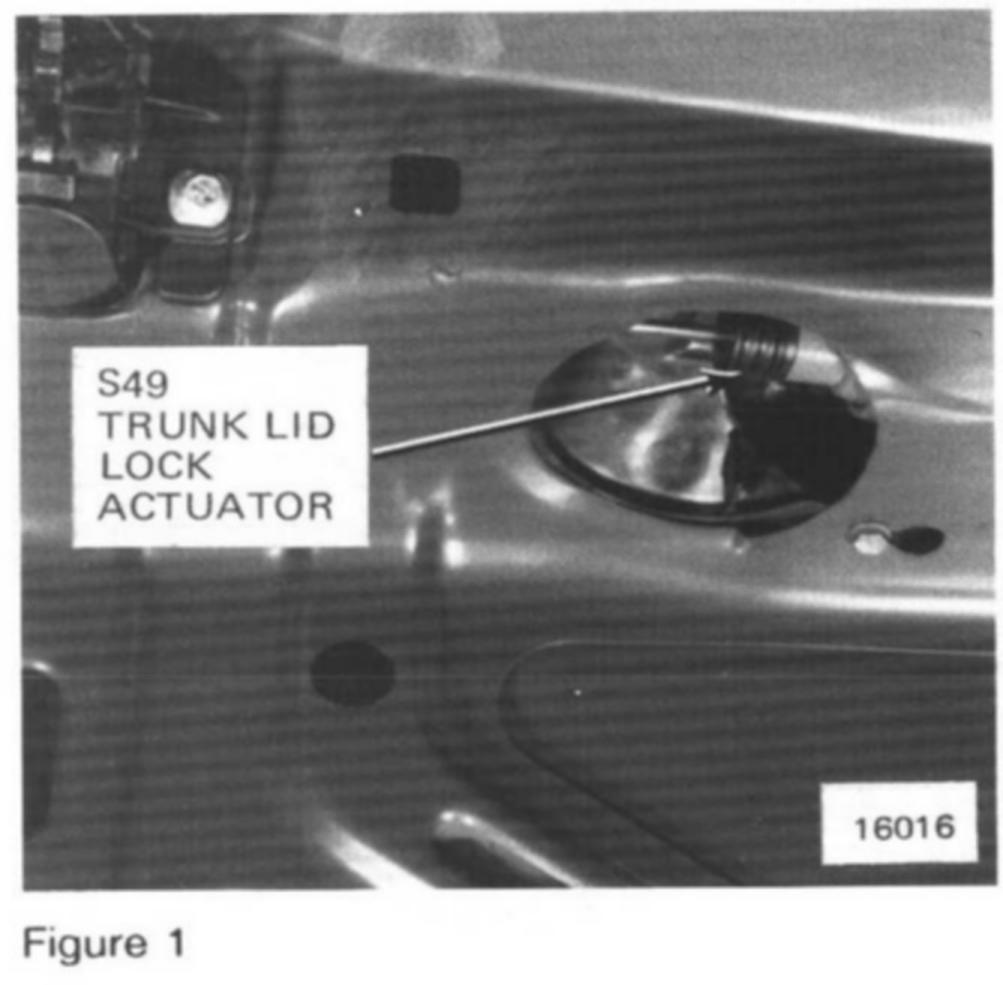

Component ID: S49
Component Name: Trunk lid lock actuator
Component Location: In rear center of trunk lid
