Home >> Mercedes Benz Truck >> 2013 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Steering Axis Inclination

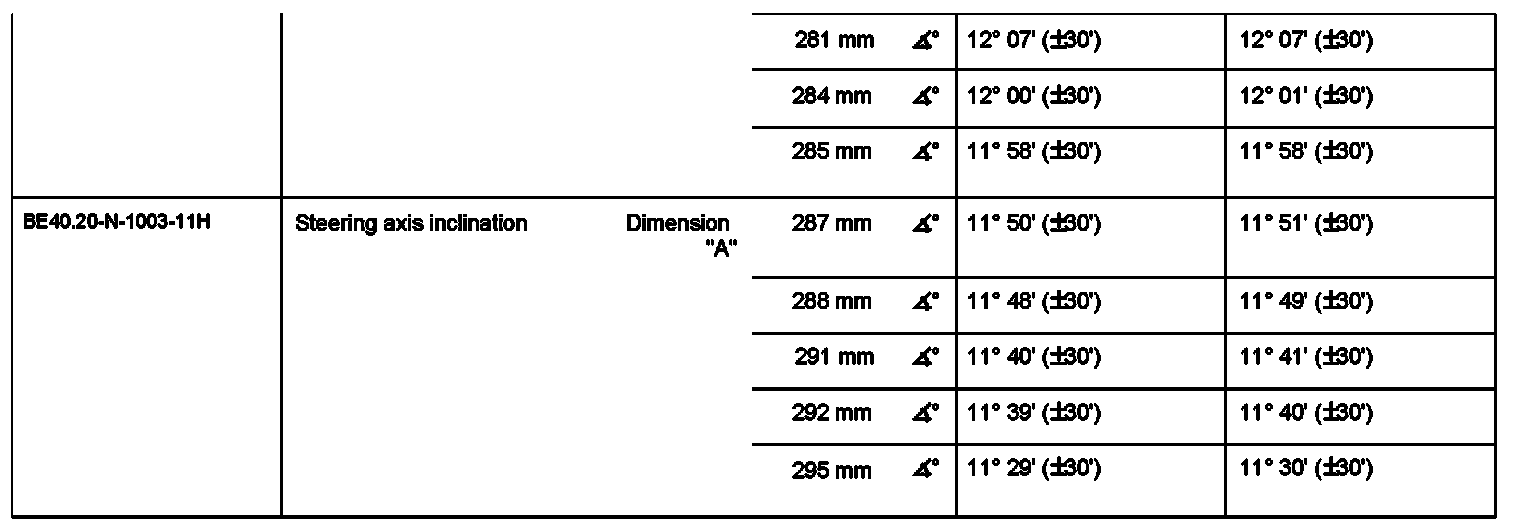

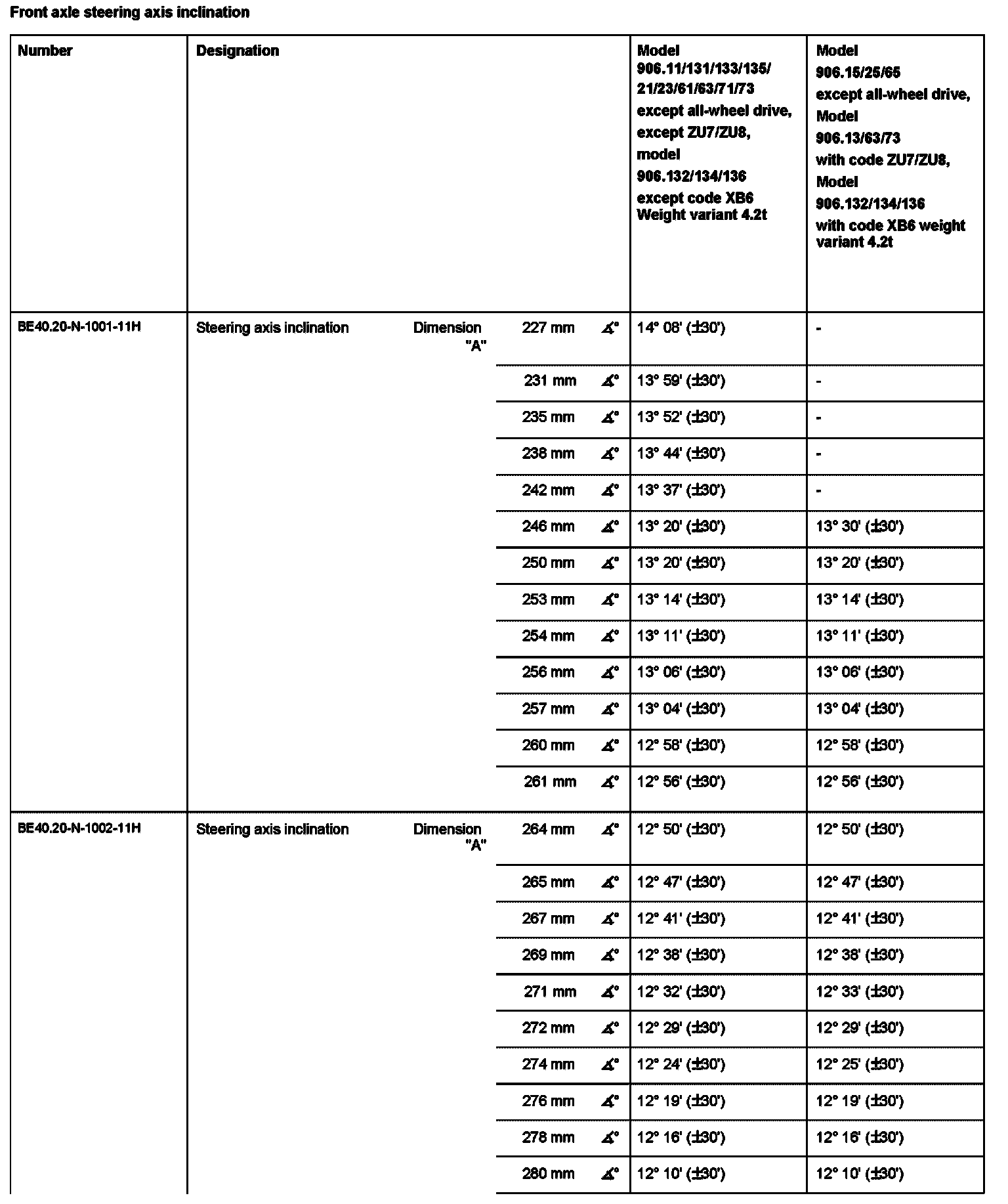

Steering Axis Inclination



BE40.20-N-1000-11H Front axle alignment
