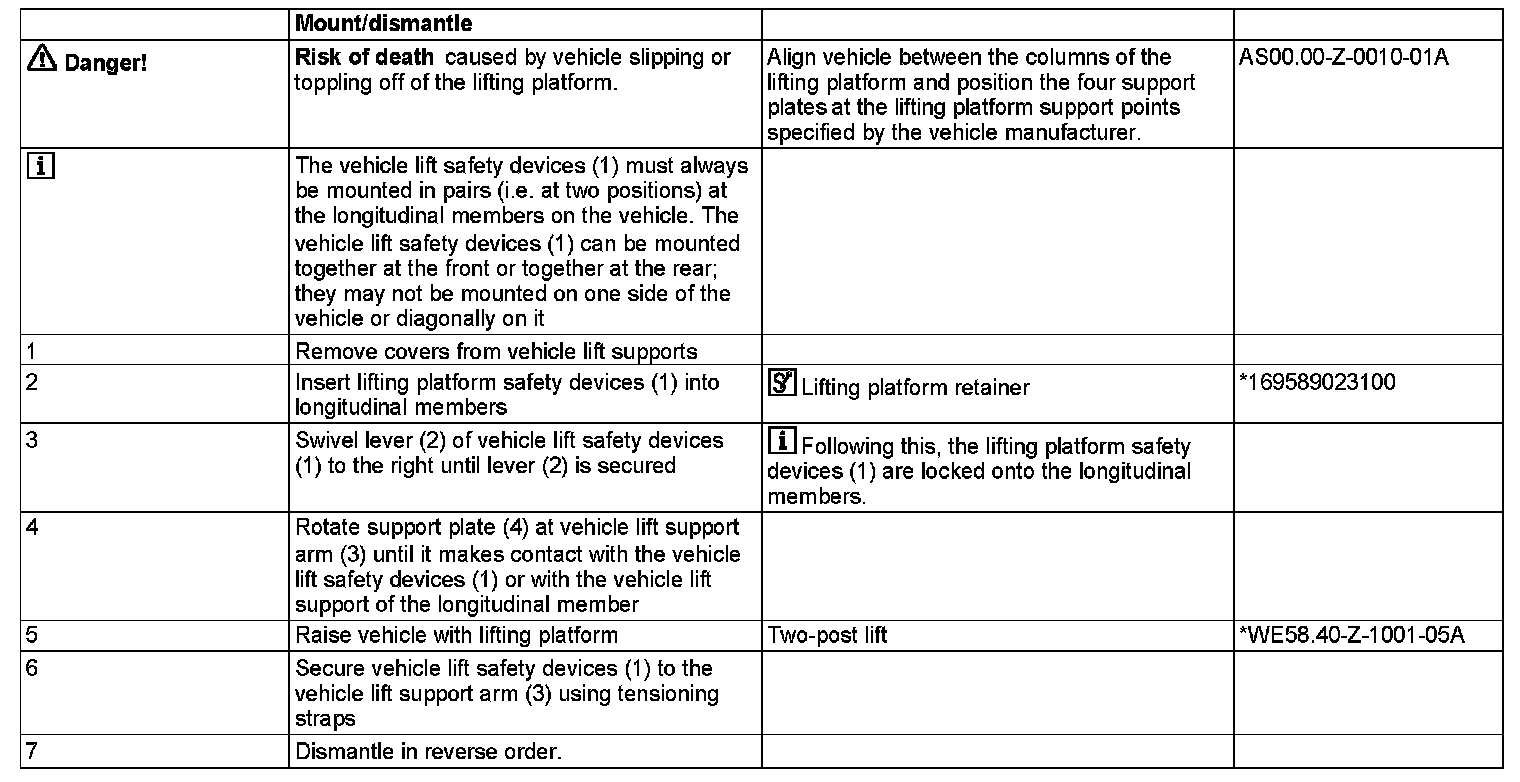

AR00.60-P-0100RT Secure Vehicle on Lifting Platform




AR00.60-P-0100RT Secure Vehicle On Lifting Platform
- MODEL 251

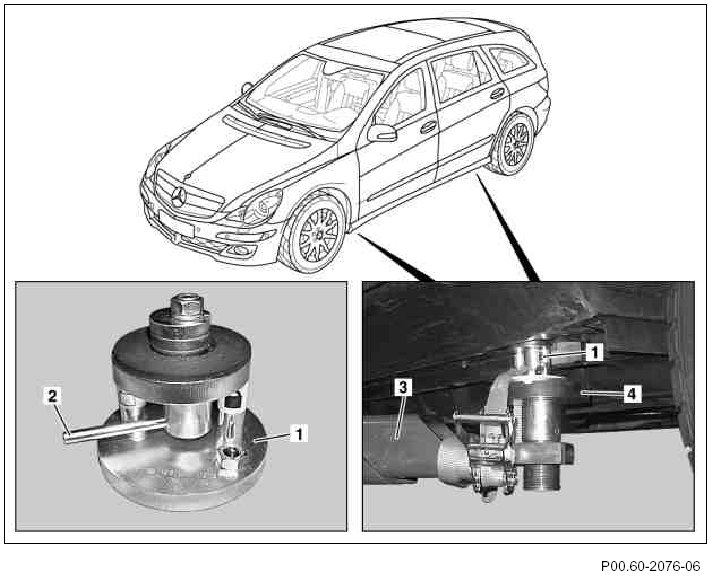

1 Lifting platform retainer
2 Lever
3 Lifting platform support arm
4 Support plate







169 589 02 31 00, Lifting platform retainer
