Mercedes Benz Truck
>>
2013
>>
ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>

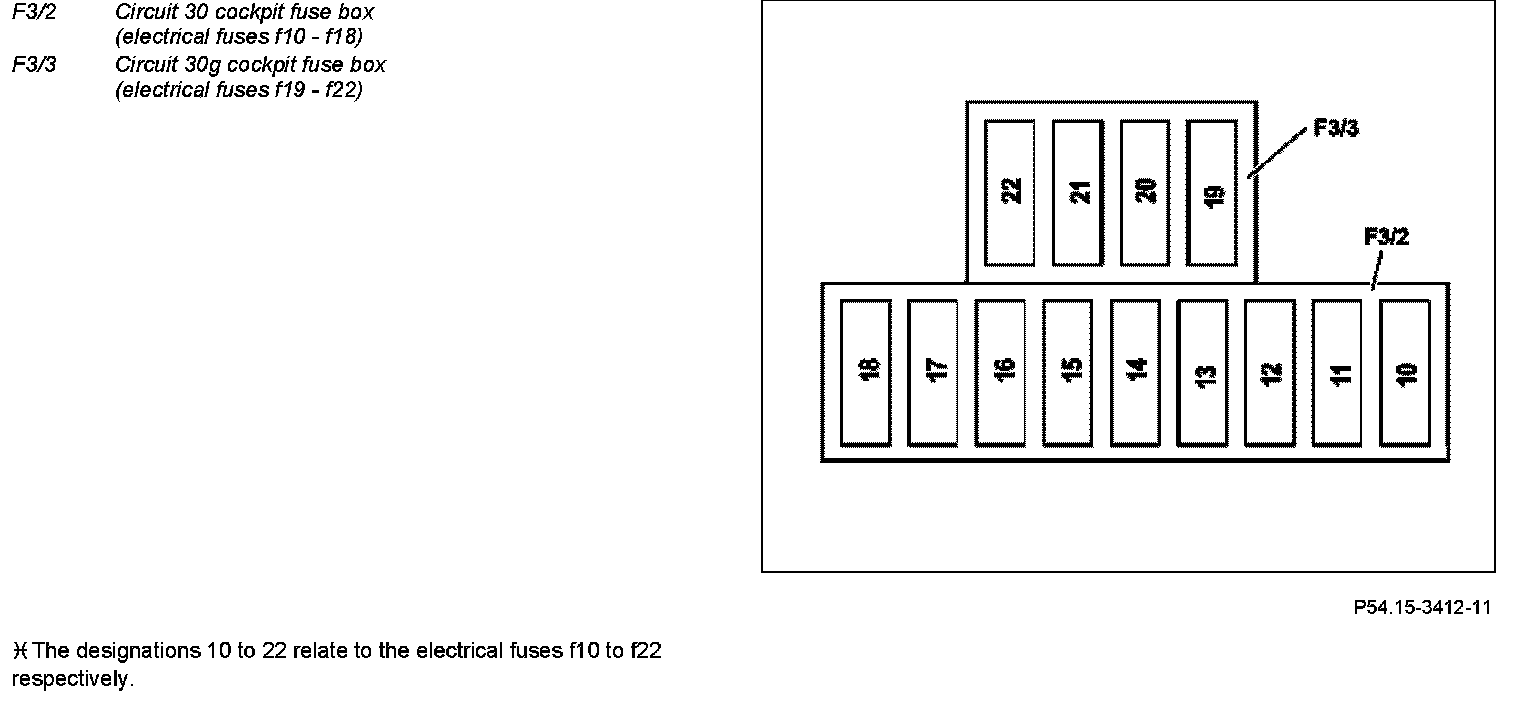

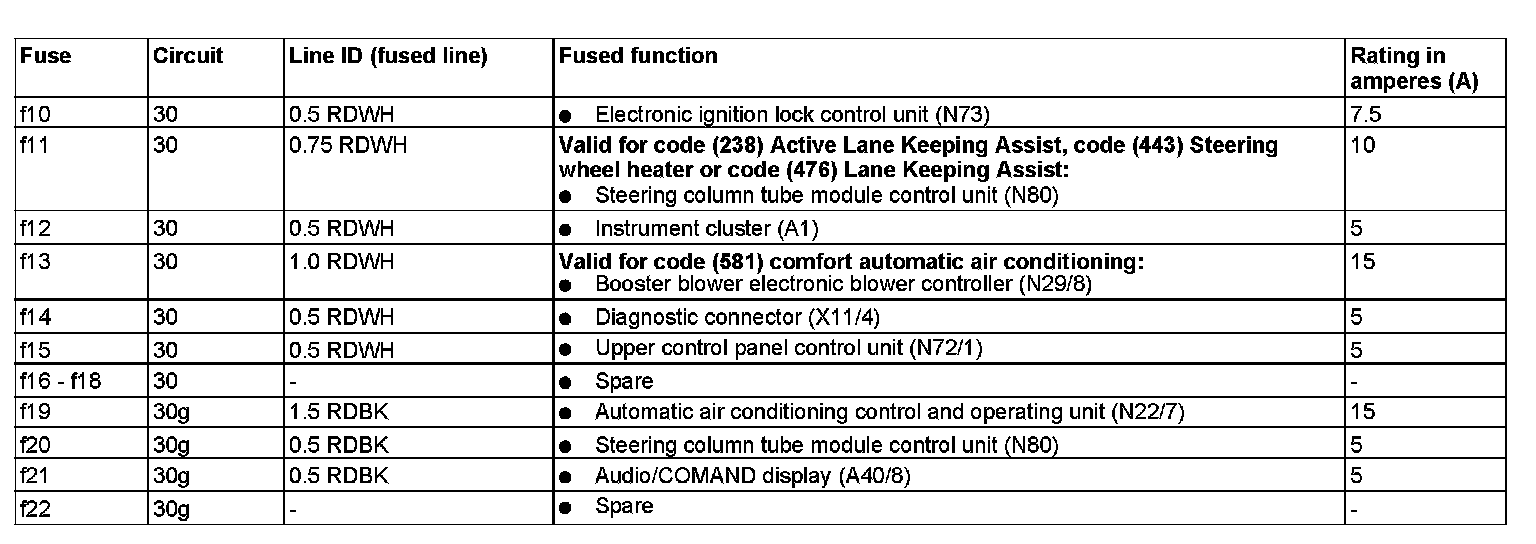

GF54.15-P-1256-22GR Fuse Assignment of Cockpit Fuse Box
GF54.15-P-1256-22GR Fuse Assignment of Cockpit Fuse Box
GF54.15-P-1256-22GR Fuse Assignment of Cockpit Fuse Box
