Home >> Mercedes Benz Truck >> 2013 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Front Axle Toe >> Without Code 489 (Airmatic (Air Suspension With Continuous Damper Adjustment))

Without Code 489 (Airmatic (Air Suspension With Continuous Damper Adjustment))

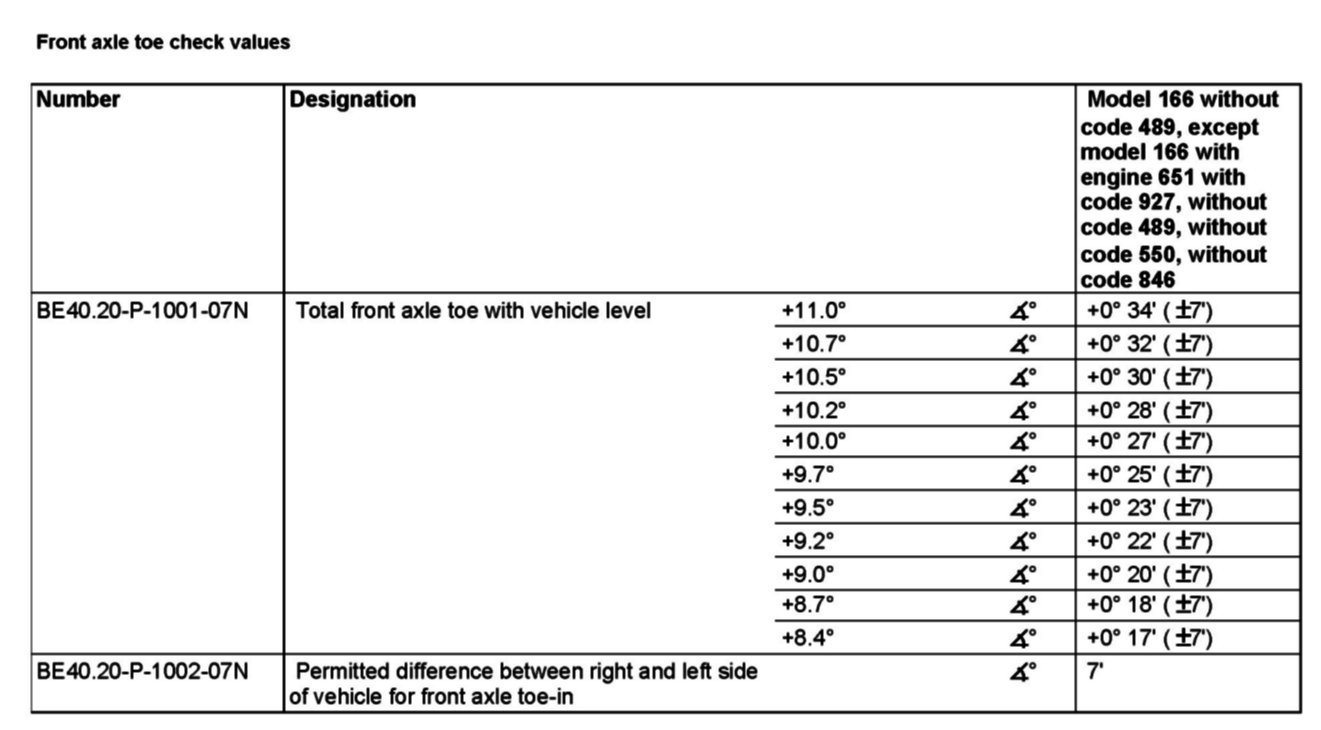

BE40.20-P-1000-07N Front axle toe
