Impairment of electrical folding function of 2nd seat row (SA code 843)

Topic number LI91.12-P-055797

Version 1

Design group 91.12 Rear seats

Date 03-26-2013

Validity Model series X166 with SA code 843 (2nd seat row,
electrically folding)

Reason for change

Complaint:
The electrical folding function of the 2nd seat row can malfunction partially or completely (SA code 843).

Cause:
The cable (Bowden cable) of the electrical folding function can detach from the counterholder.

Remedy:
Installation of felt tape on the vinyl ring of the cable, as shown in the picture in the attachment.

Risk of injury: For all work, observe AS00.00-Z-0009-01A!

1. Remove exterior lining, steps 1-10, as described in AR91.12-P-0100GQ

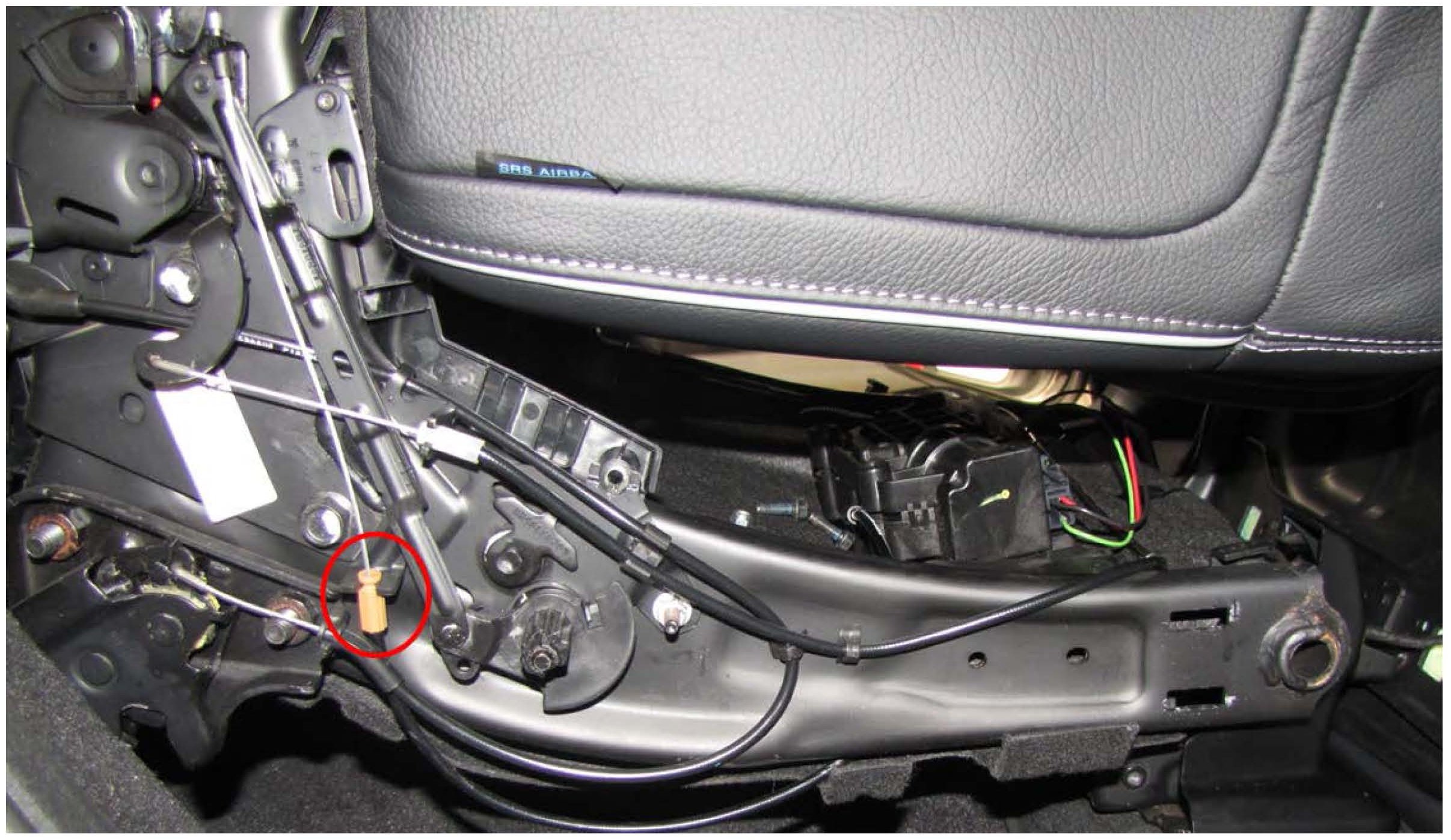

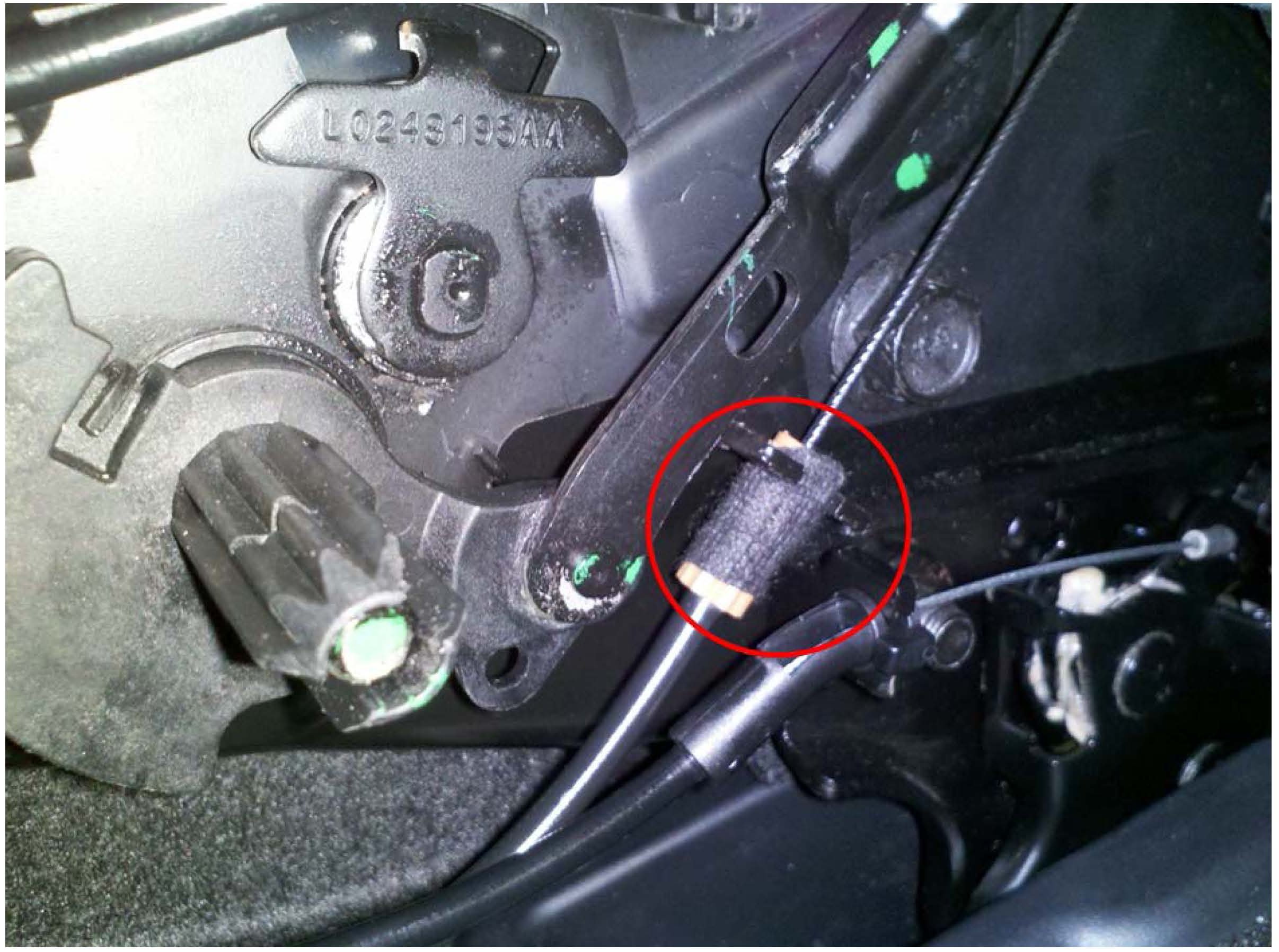

2. Wrap vinyl ring with felt tape and then press into counterholder of seat structure and fix in place. See Figure 1! Trim felt tape as required.

3. Install outer lining in the reverse order.

Move rear seat to default position and check the effectiveness of the repair!

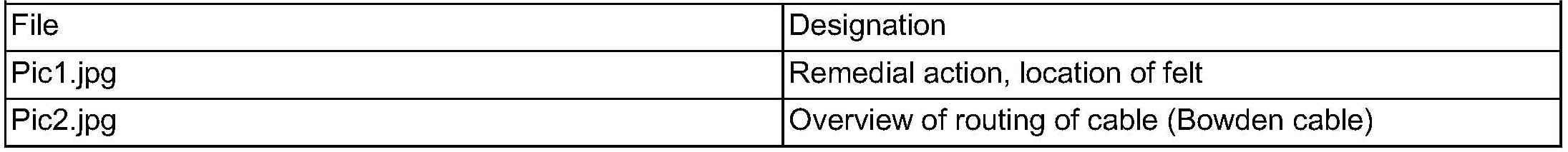

Attachments





Symptoms





Parts

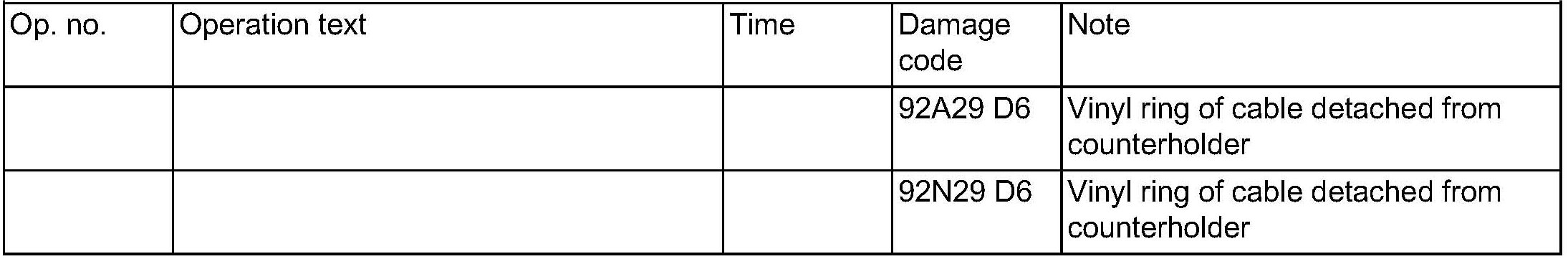

Work units
