Parking Assist Distance Sensor: Service and Repair

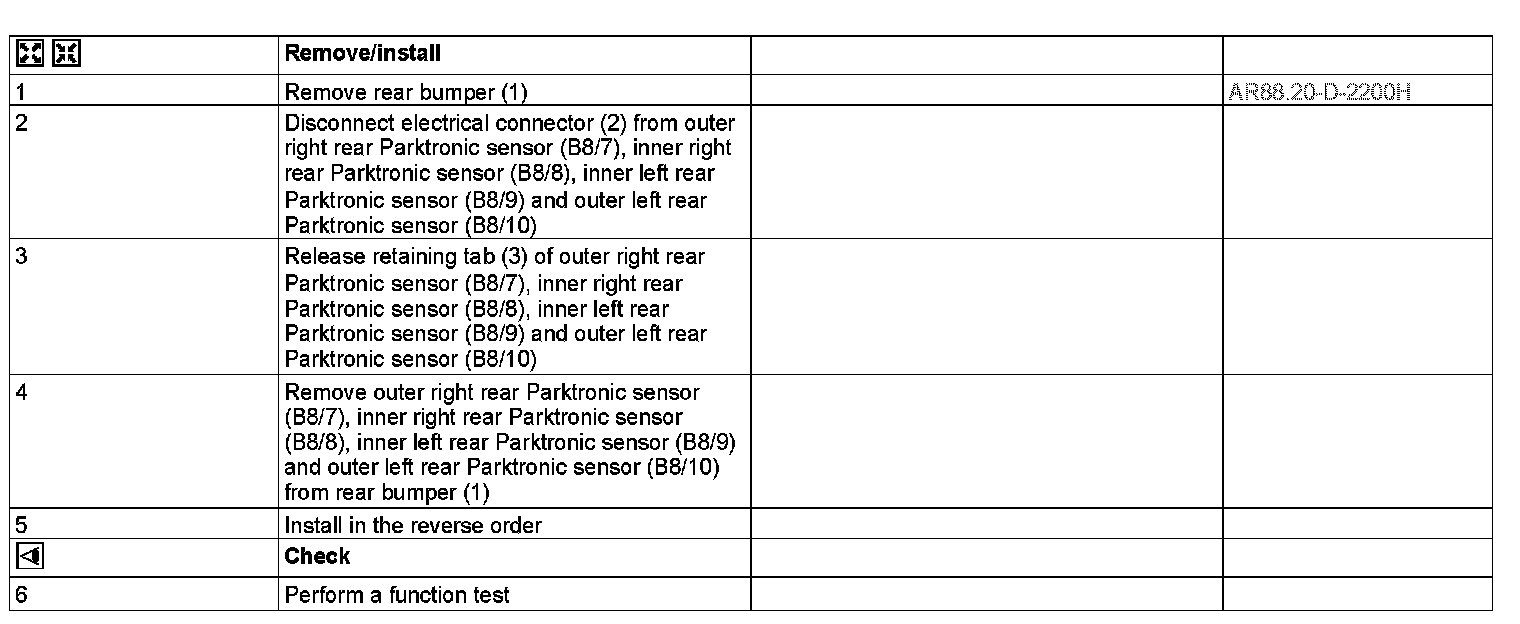

AR54.65-D-0002H Remove/Install Parktronic System (PTS) Sensors In Rear Bumper

- with CODE (EZ8) Parktronic system (PTS)

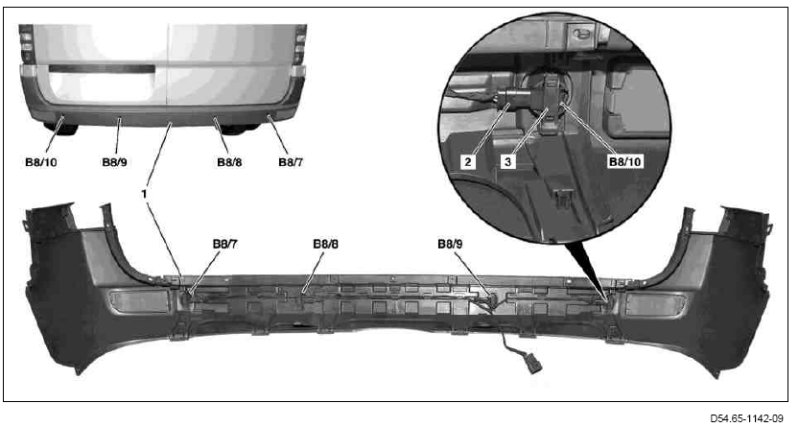

1 Rear bumper
2 Electrical connector
3 Retaining tab
B8/7 Outer right rear Parktronic sensor
B8/8 Inner right rear Parktronic sensor
B8/9 Inner left rear Parktronic sensor
B8/10 Outer left rear Parktronic sensor
