Power Window Motor: Service and Repair

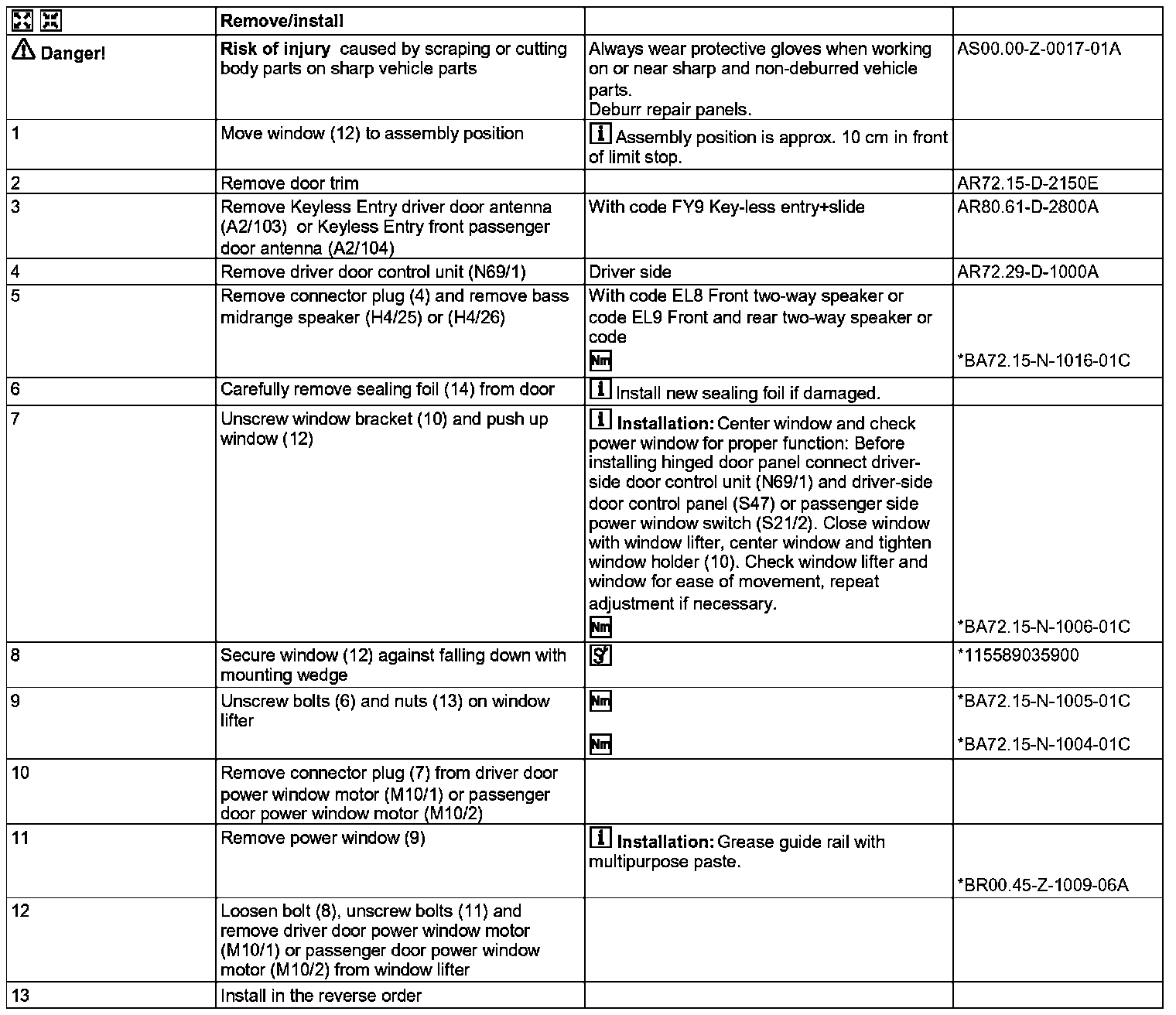

AR72.15-D-5701A Remove/Install Hinged Door Power Window Motor

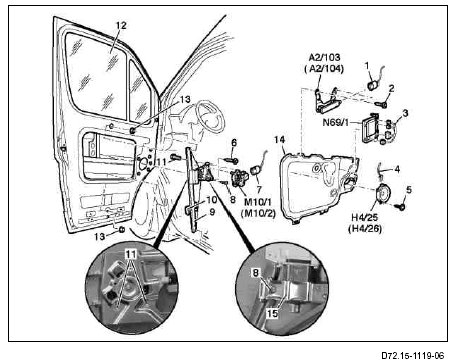

1 Plug connector
3 Plug connector
4 Plug connector
7 Plug connector
8 Screw
9 Power window
10 Window bracket
11 Bolts
12 Window(s)
13 Nut
14 Sealing foil
15 Clip
A2/103 Keyless Entry driver door antenna
A2/104 Keyless Entry front passenger door antenna
H4/25 Bass midrange speaker
H4/26 Bass midrange speaker
M10/1 Driver door power window motor
M10/2 Front passenger door power window motor
N69/1 Driver door control unit













115 589 03 59 00, Long wedge
