Removal and Replacement

AR26.10-D-0020H Remove/Install Transmission

TRANSMISSION 711.680 in MODEL 906
TRANSMISSION 711.685 in MODEL 906
TRANSMISSION 711.680 in MODEL 900
TRANSMISSION 710.510 in MODEL 8AC906.133 /153 /155 /631 /633 /635 /655 /657
- with CODE (ZL3) National version for Latin America

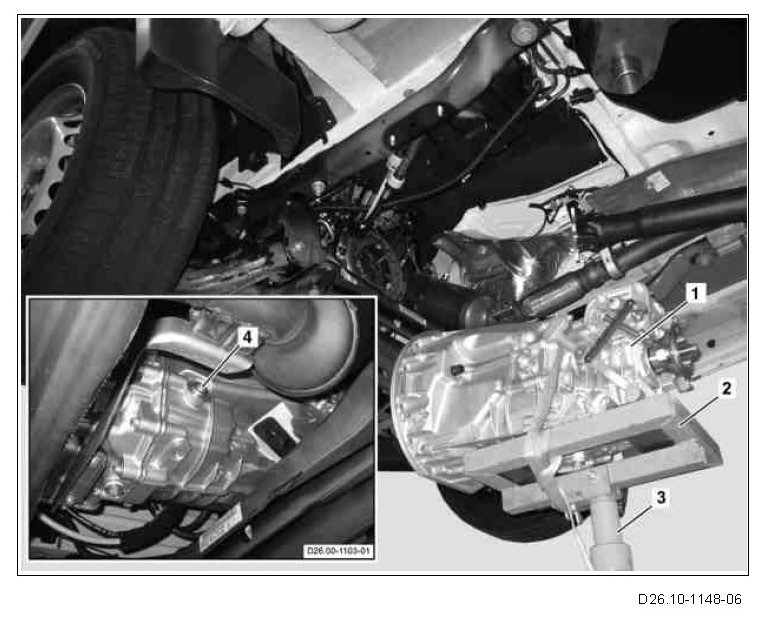

Shown on transmission 711.680






1 Transmission
2 Transmission platform
3 Transmission jack
4 Oil filler plug

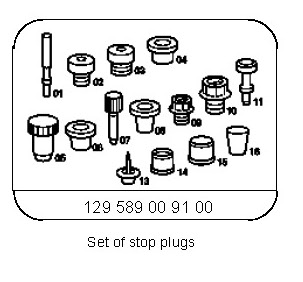

129 589 00 91 00, Set of stop plugs
