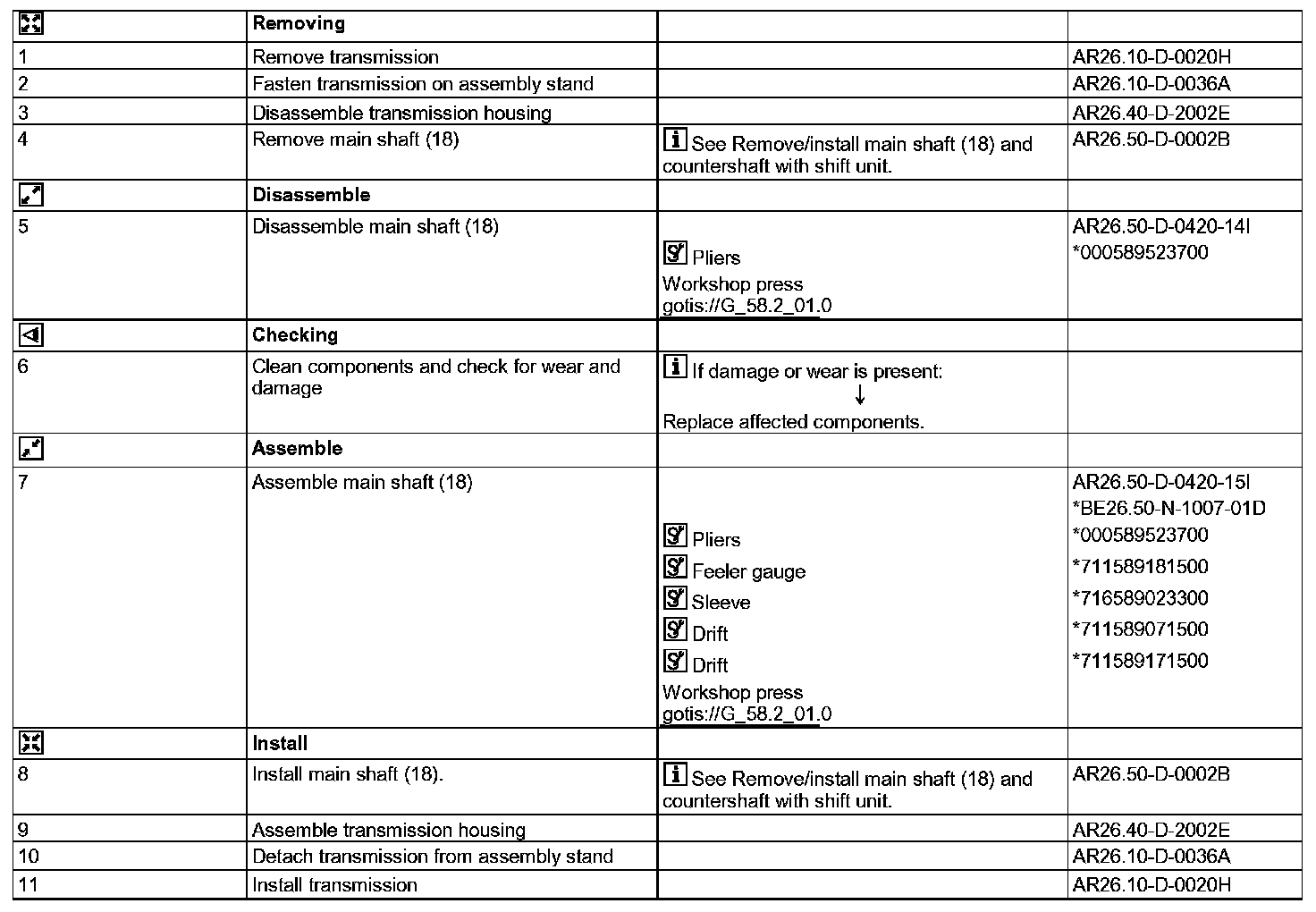

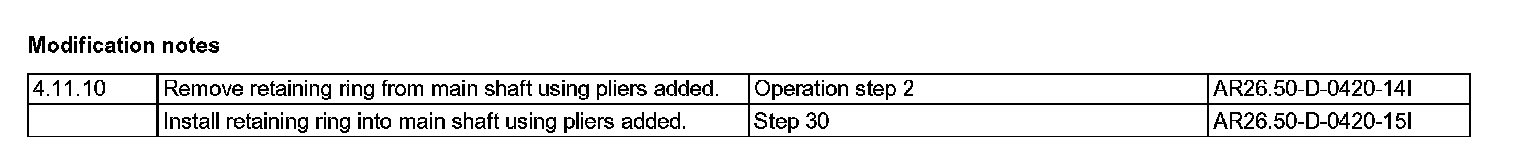

AR26.50-D-0420H Disassemble and Assemble Main Shaft

AR26.50-D-0420H Disassemble and Assemble Main Shaft
- TRANSMISSION 711.680 in MODEL 906
- TRANSMISSION 711.685 in MODEL 906

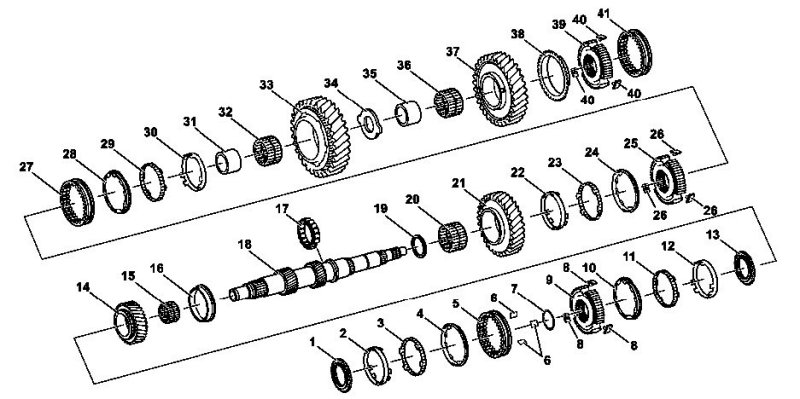

1 Clutch body
2 Friction ring
3 Cone ring
4 Synchronizer ring
5 Sliding sleeve
6 Blocking pieces
7 Retaining ring
8 Thrust piece
9 Synchronizer body
10 Synchronizer ring
11 Cone ring
12 Friction ring
13 Clutch body
14 3rd gear idler gear
15 3rd gear needle roller bearing
16 Outer bearing race (only transmission 711.685)
17 Roller bearing intermediate plate (only transmission 711.685)
18 Main shaft
19 Spacer washer
20 2nd gear needle roller bearing
21 2nd gear idler gear
22 Friction ring
23 Cone ring
24 Synchronizer ring
25 Synchronizer body
26 Thrust piece
27 Sliding sleeve
28 Synchronizer ring
29 Cone ring
30 Friction ring
31 Bearing sleeve
32 1st gear needle bearing
33 1st gear idler gear
34 Thrust plate
35 Bearing sleeve
36 Reverse gear needle roller bearing
37 Reverse gear idler gear
38 Synchronizer ring
39 Synchronizer body
40 Thrust piece
41 Sliding sleeve














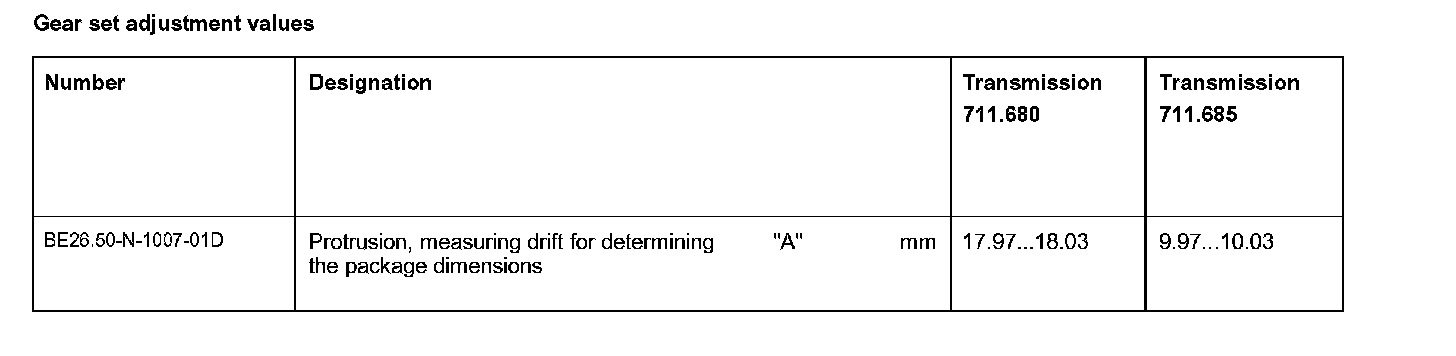

711 589 18 15 00
Feeler





716 589 02 33 00
Sleeve





711 589 07 15 00
Drift





711 589 17 15 00
Drift





000 589 52 37 00
Pliers
