AP35.00-D-3501A Rear Axle - Oil Change

AP35.00-D-3501A Rear Axle - Oil Change

MODEL 636, 639
MODEL 667
- with REAR AXLE 741.131

MODEL 668, 670
- with REAR AXLE 742.50

MODEL 670
- with REAR AXLE 742.487

MODEL 690.6
- with REAR AXLE 741.130 /408 /409

MODEL 900
- with REAR AXLE 741.412 /413 /414 /420

MODEL 901, 902
- with REAR AXLE 741.407

MODEL 903
- with REAR AXLE 741.408

MODEL 903.663
- with REAR AXLE 741.409

MODEL 904
- with REAR AXLE 741.130

MODEL 905
- with REAR AXLE 741.980

MODEL 906
- with REAR AXLE 741.412 /413 /414 /415 /416 /417 /420

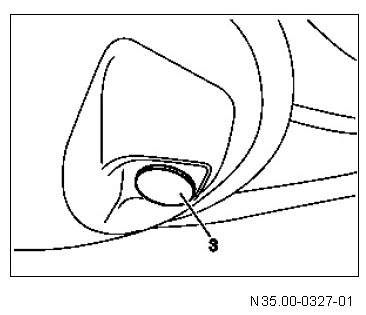

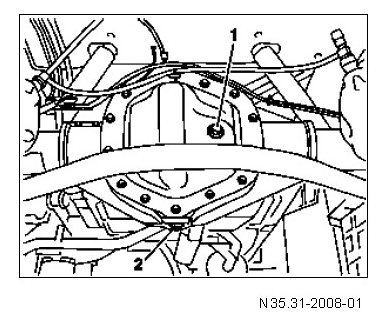

Shown on rear axle model 668, 670









1 Oil filler plug
2 Oil drain screw
3 Plug

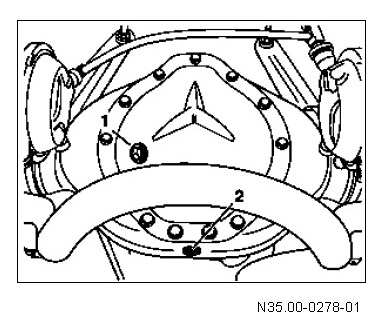

Shown on rear axle model 905






1 Oil filler plug
2 Oil drain screw

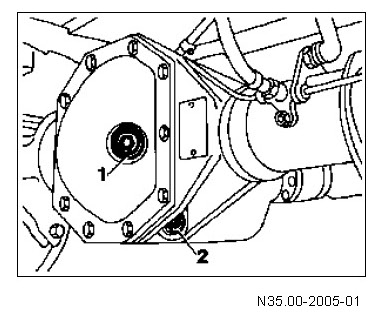

Shown on rear axle model 667, 670, 690.6, 901, 902, 903, 904









1 Oil filler plug
2 Oil drain screw
3 Plug

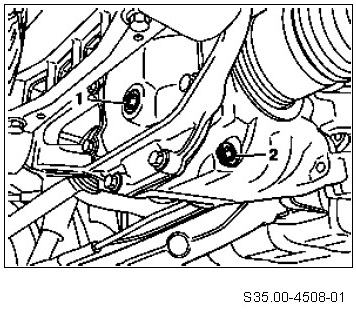

Shown on rear axle model 636, 639






1 Oil filler plug
2 Oil drain screw

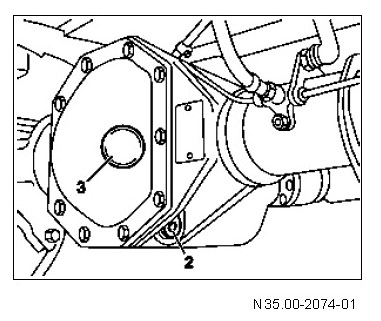

Shown on rear axle model 900, 906






2 Oil drain screw
3 Plug
