Overhaul

AR35.30-D-4815H Remove And Install Drive Pinion And Ring Gear With Differential

REAR AXLE 741.412 /415 in MODEL 906.11 /21 /61 /71 /13 /23 /63 /73
REAR AXLE 741.413 /414 /416 /420 in MODEL 906.15 /25 /65
REAR AXLE 741.415 in MODEL 900.63
REAR AXLE 741.413 /414 /420 in MODEL 900.65
REAR AXLE 741.428 in MODEL 8AC906.133 /631 /633 /635
- with CODE (ZL3) National version for Latin America

REAR AXLE 741.429 in MODEL 8AC906.153 /155 /655 /657
- with CODE (ZL3) National version for Latin America

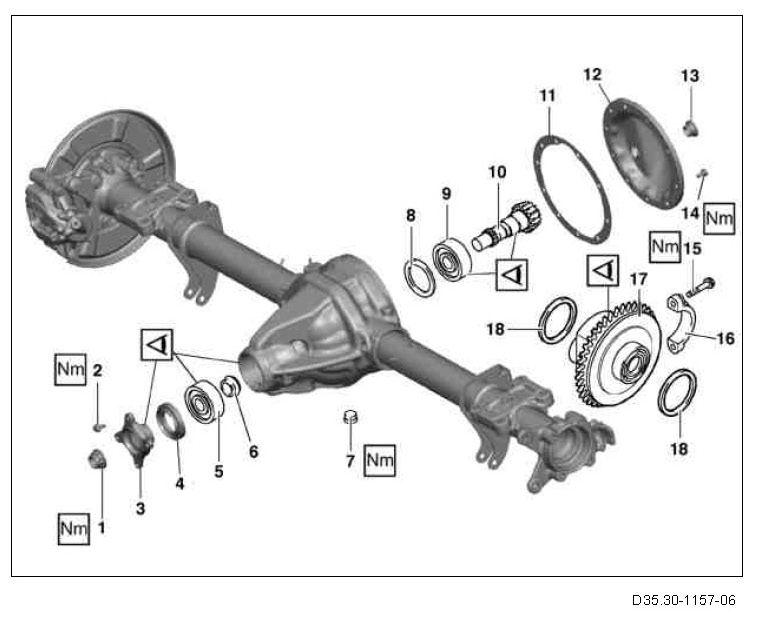

Shown on rear axle 741.415






1 Collar nut
2 Screw
3 Joint flange
4 Radial shaft sealing ring
5 Outer tapered roller bearing
6 Compressed ring
7 Oil drain screw
8 Spacer washer
9 Inner tapered roller bearing
10 Drive pinion
11 Gasket
12 Housing cover
13 Oil filler plug
14 Screw
15 Screw
16 Bearing bracket
17 Ring gear with differential
18 Spacer washer

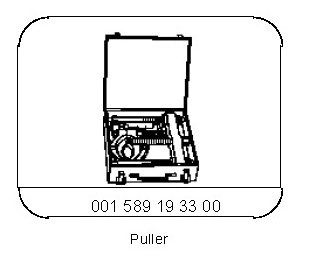

001 589 19 33 00, Puller

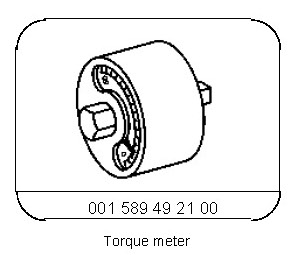

001 589 49 21 00, Torque meter






001 589 53 21 00, Dial indicator






035 589 01 33 00, Puller






123 589 08 33 00, Puller






140 589 16 23 00, Measuring plate

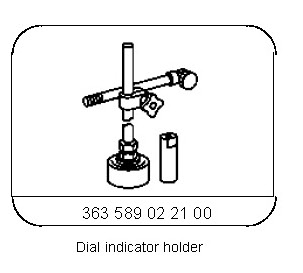

363 589 02 21 00, Dial indicator holder






711 589 01 15 00, Drift






717 589 00 31 00, Retainer wrench






741 589 00 43 00, Insertion tool






741 589 01 63 00, Pressing-on tool






741 589 02 15 00, Drift






741 589 02 63 00, Holding device






741 589 03 63 00, Spreader






906 589 01 21 00, Adjustment device
