Differential Cover: Service and Repair

AR35.31-D-0554H Remove/Install End Cover At Differential

REAR AXLE 741.412 /415 in MODEL 906.11 /13 /21 /23 /61 /63 /71 /73
REAR AXLE 741.413 /414 /416 /420 in MODEL 906.15 /25 /65
REAR AXLE 741.415 in MODEL 900.63
REAR AXLE 741.413 /414 /420 in MODEL 900.65
REAR AXLE 741.428 in MODEL 8AC906.133 /631 /633 /635
- with CODE (ZL3) National version for Latin America

REAR AXLE 741.429 in MODEL 8AC906.153 /155 /655 /657
- with CODE (ZL3) National version for Latin America

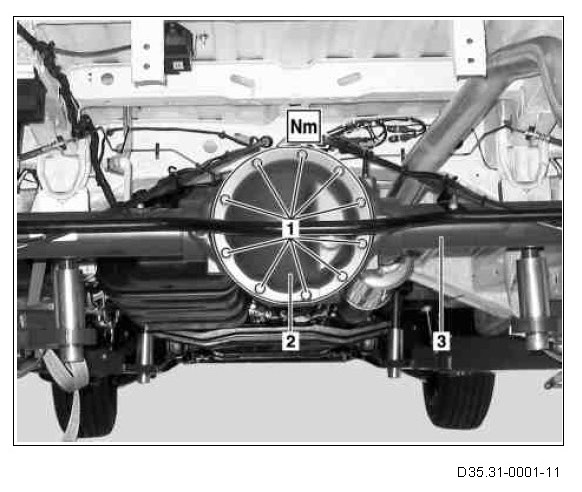

Shown on model 906.633 with rear axle 741.412






1 Bolts
2 End cover
3 Rear axle
