Seals and Gaskets: Service and Repair

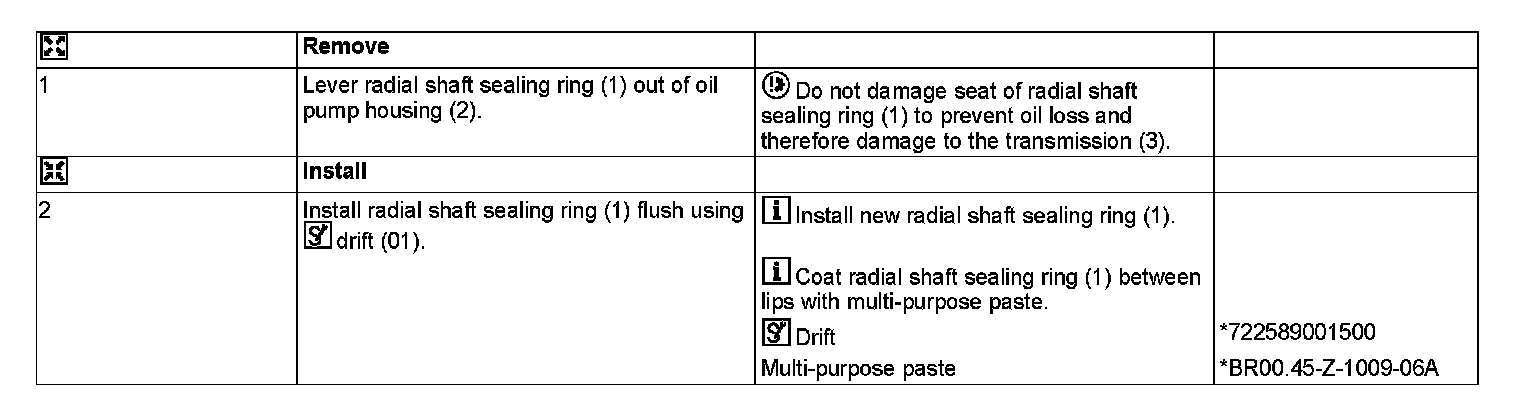

AR27.40-P-0300A Remove/Install Oil Pump Radial Shaft Sealing Ring
TRANSMISSION 722.6 /9 /9
Drehmomentwandler ausgebaut

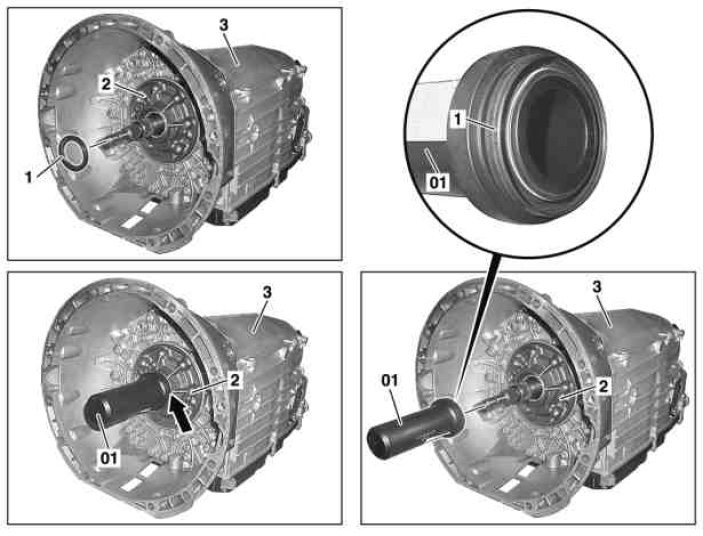

01 Drift
1 Radial shaft sealing ring
2 Oil pump housing
3 Transmission








722 589 00 15 00
Drift
