Fluid Pan: Service and Repair

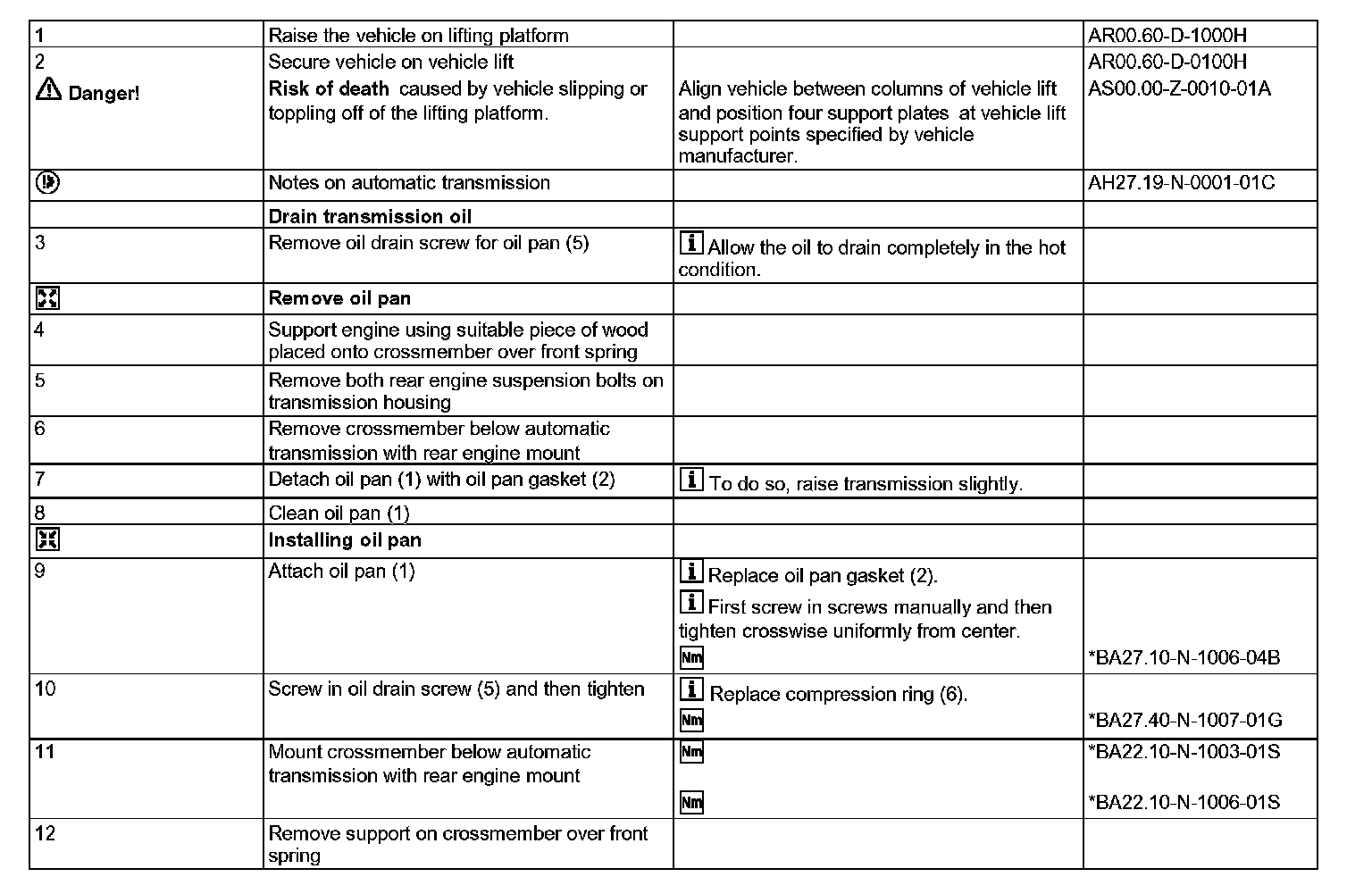

AR27.10-D-7030H Remove/Install Automatic Transmission Oil Pan
TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7

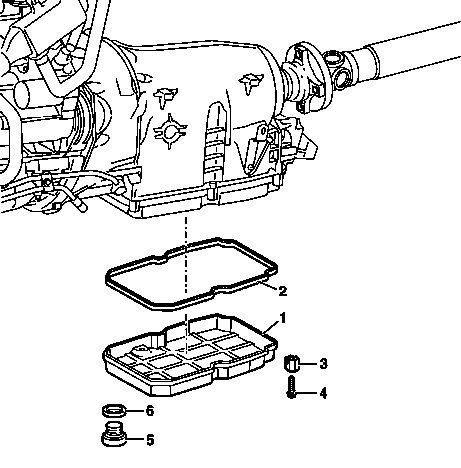

1 Oil pan
2 Oil pan gasket
3 Thrust piece
4 Screw
5 Oil drain screw of oil pan
6 Sealing ring
