Fluid Filter - A/T: Service and Repair

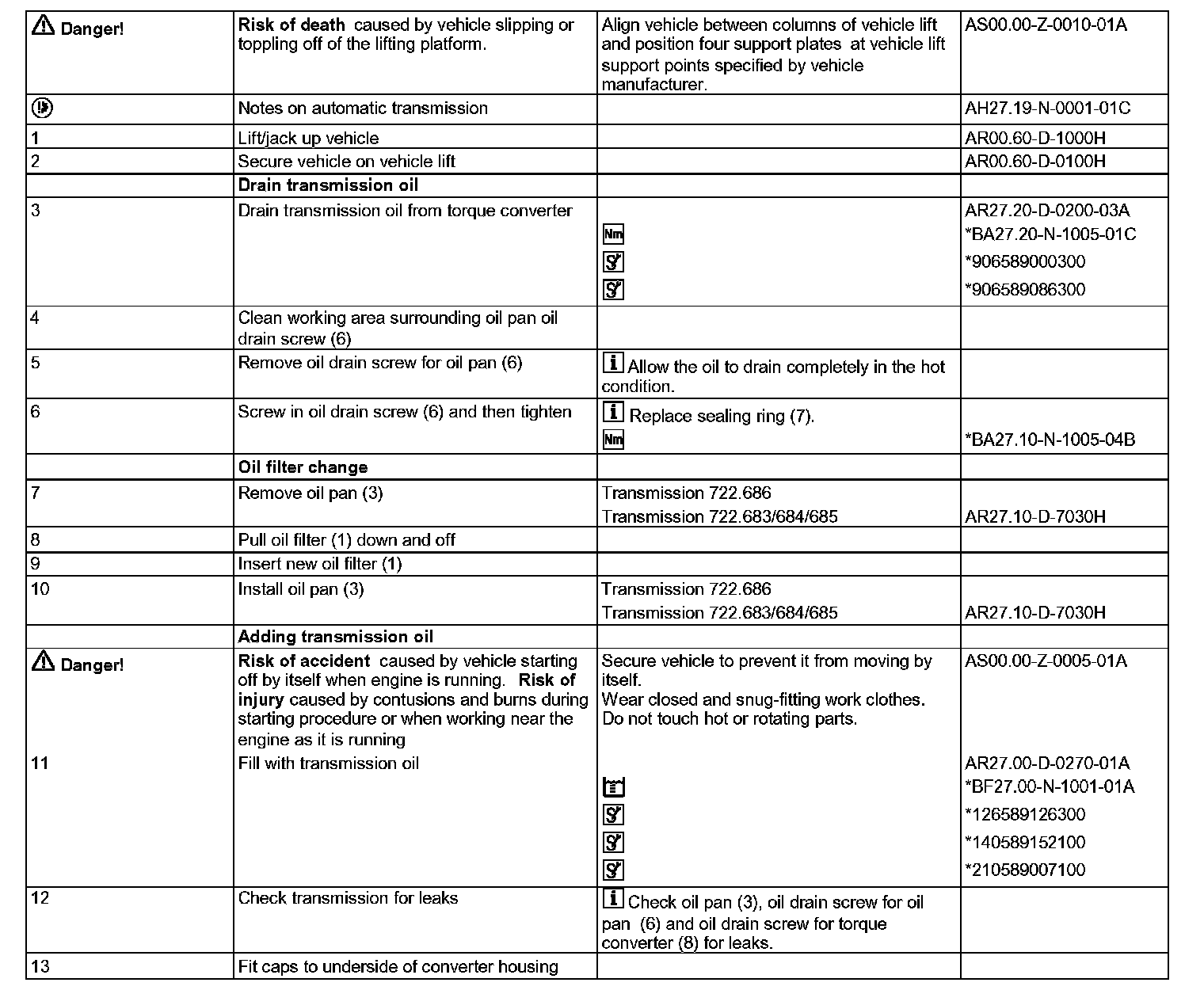

AP27.00-D-2702H Automatic Transmission - Oil and Filter Change
- TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.686 in MODEL 906.1 /2 /6

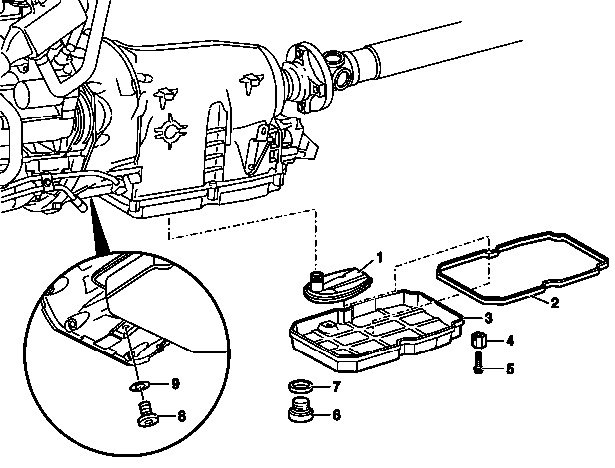

1 Oil filter
2 Oil pan gasket
3 Oil pan
4 Thrust piece
5 Screw
6 Oil drain screw of oil pan
7 Sealing ring
8 Torque converter oil drain screw
9 Sealing ring




















906 589 00 03 00
Ratchet box wrench





906 589 08 63 00
Drain plate





126 589 12 63 00
Funnel





140 589 15 21 00
Dipstick





210 589 00 71 00
Hand pump
