AR32.20-D-0230H Remove/Install Rear Spring
AR32.20-D-0230H Remove/Install Rear Spring
MODEL 906.11 /21 /61 /71
- with REAR AXLE 741.412 /415
MODEL 906.13 /23 /63 /73
- with REAR AXLE 741.412 /415
- except CODE (PL9) Air suspension, VB-Air suspension company
MODEL 906.15 /25 /65
- with REAR AXLE 741.413 /414 /416 /420
- except CODE (PL9) Air suspension, VB-Air suspension company
MODEL 900.63
- with REAR AXLE 741.415
MODEL 900.65
- with REAR AXLE 741.413 /414 /420
MODEL 8AC906.133 /631 /633 /635
- with REAR AXLE 741.428
- with CODE (ZL3) National version for Latin America
MODEL 8AC906.153 /155 /655 /657
- with REAR AXLE 741.429
- with CODE (ZL3) National version for Latin America

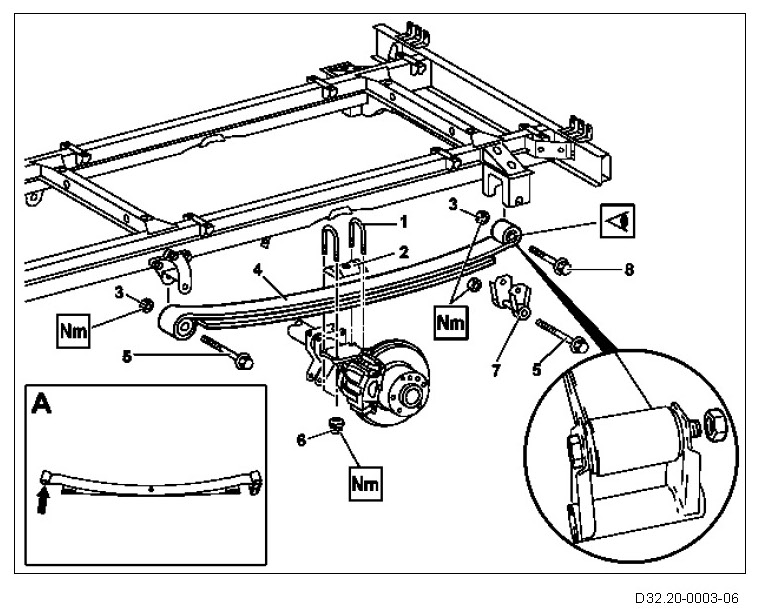

1 Spring U-bolt
2 Spring plate
3 Nuts
4 Rear spring
5 Screw
6 Nut
7 Spring shackle
8 Screw
A Installation position of rear spring

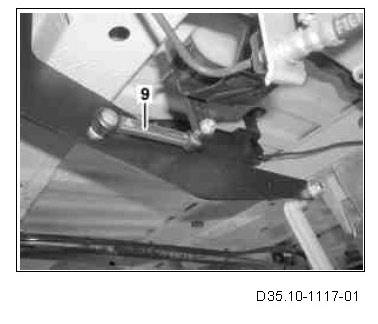

9 Link rod (with code (LG0) Bi-xenon headlamp or code (LG1) Bi-xenon headlamp with cornering lights)
