Steering: Testing and Inspection

AP46.00-D-4650A Checking Condition Of Steering Mechanism

MODEL 636, 638, 639
MODEL 900, 901, 902, 903, 904, 905, 906
MODEL 690.6
MODEL WD1, WD2, WD3, WD6, WD7, XD1, XD2, XD3, XD4, XD5, XD6, XD7, YD1, YD2, YD3, YD4, YD5, YD6, YD7

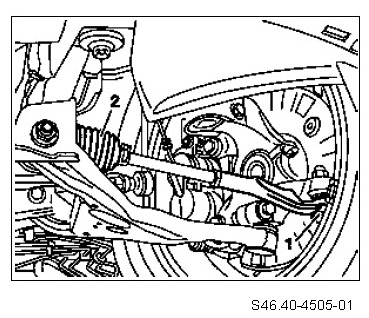

Shown on model 638






1 Tie rod ends
2 Bellows

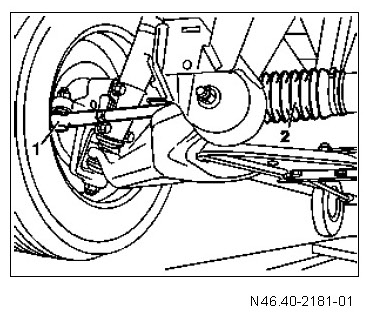

Shown on model 636, 639






1 Tie rod ends
2 Bellows

Shown on model 690.6, 900, 901, 902, 903, 904, 905, 906






1 Tie rod ends
2 Bellows
