Home >> Mercedes Benz Truck >> 2012 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Wheel >> Service and Repair

Steering Wheel: Service and Repair

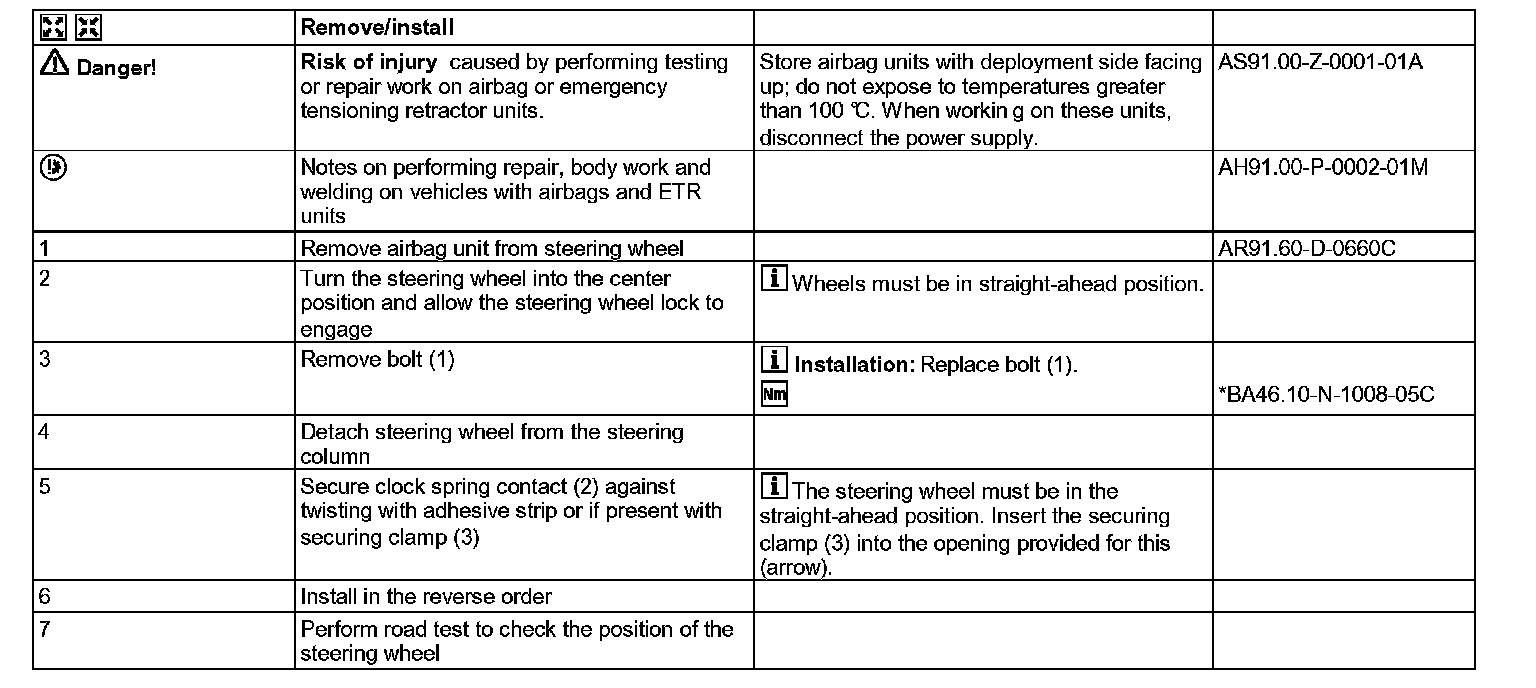

AR46.10-D-0100E Remove/Install Steering Wheel









1 Screw
2 Clock spring contact
3 Securing clamp
