Home >> Mercedes Benz Truck >> 2012 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Steering and Suspension >> Alignment >> Service and Repair >> AR40.30-D-0402HC Carry Out Distance and Comparison Measurements on Front and Rear Axles

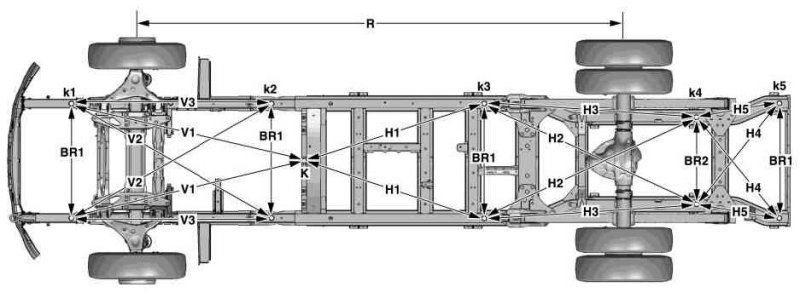

AR40.30-D-0402HC Carry Out Distance and Comparison Measurements on Front and Rear Axles




AR40.30-D-0402HC Carry Out Distance and Comparison Measurements on Front and Rear Axles
























906 589 09 63 00
Adapter
