Battery: Testing and Inspection




AR54.10-D-1129A Check Condition Of Battery

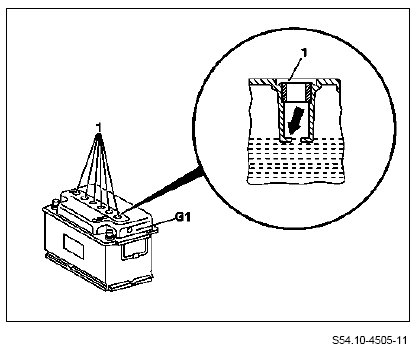

Shown on starter battery
1 Plug
G1 Battery
