Home >> Mercedes Benz Truck >> 2012 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> System Specifications >> BA35.30-N-1000-02A Rear Axle Drive

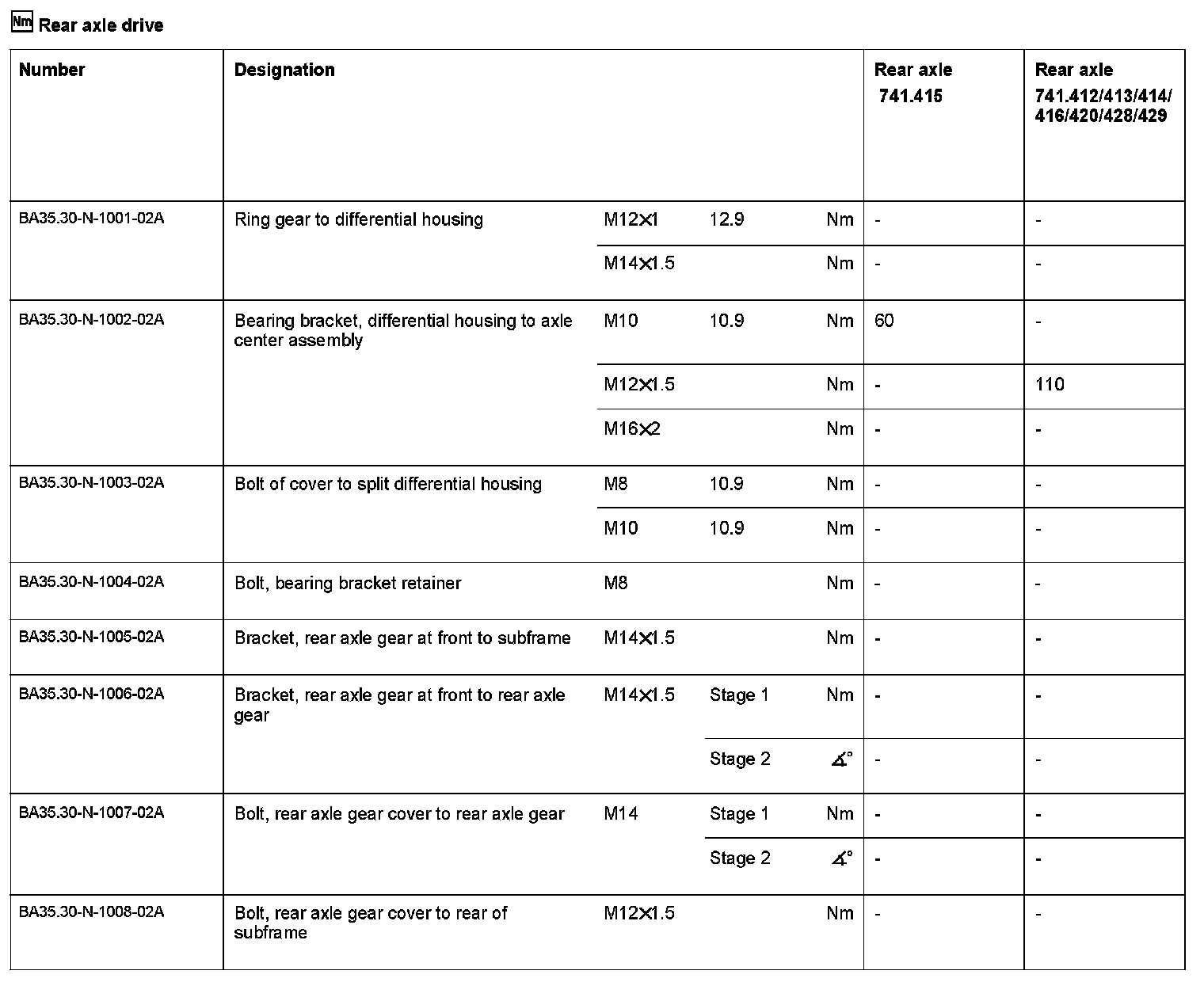

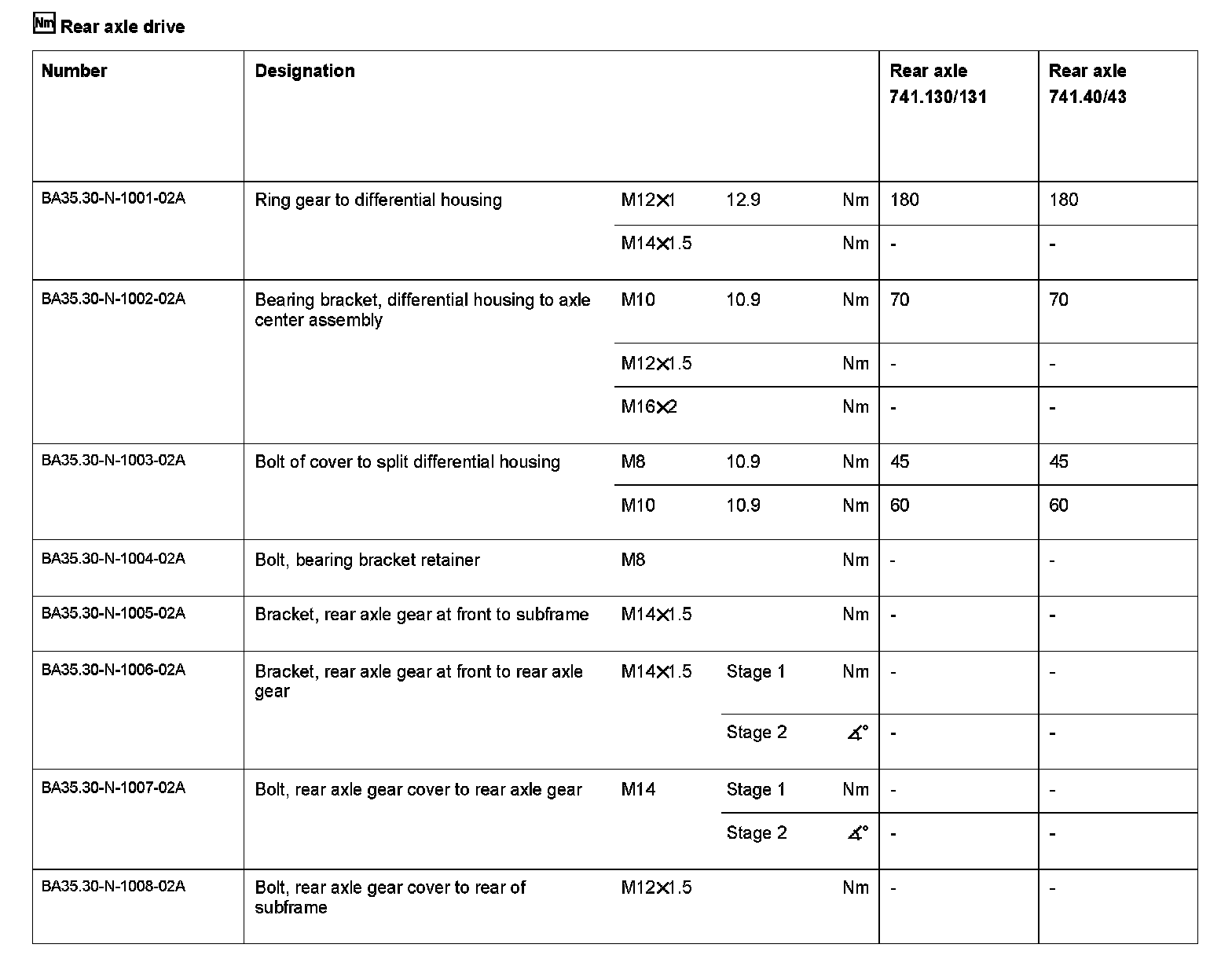

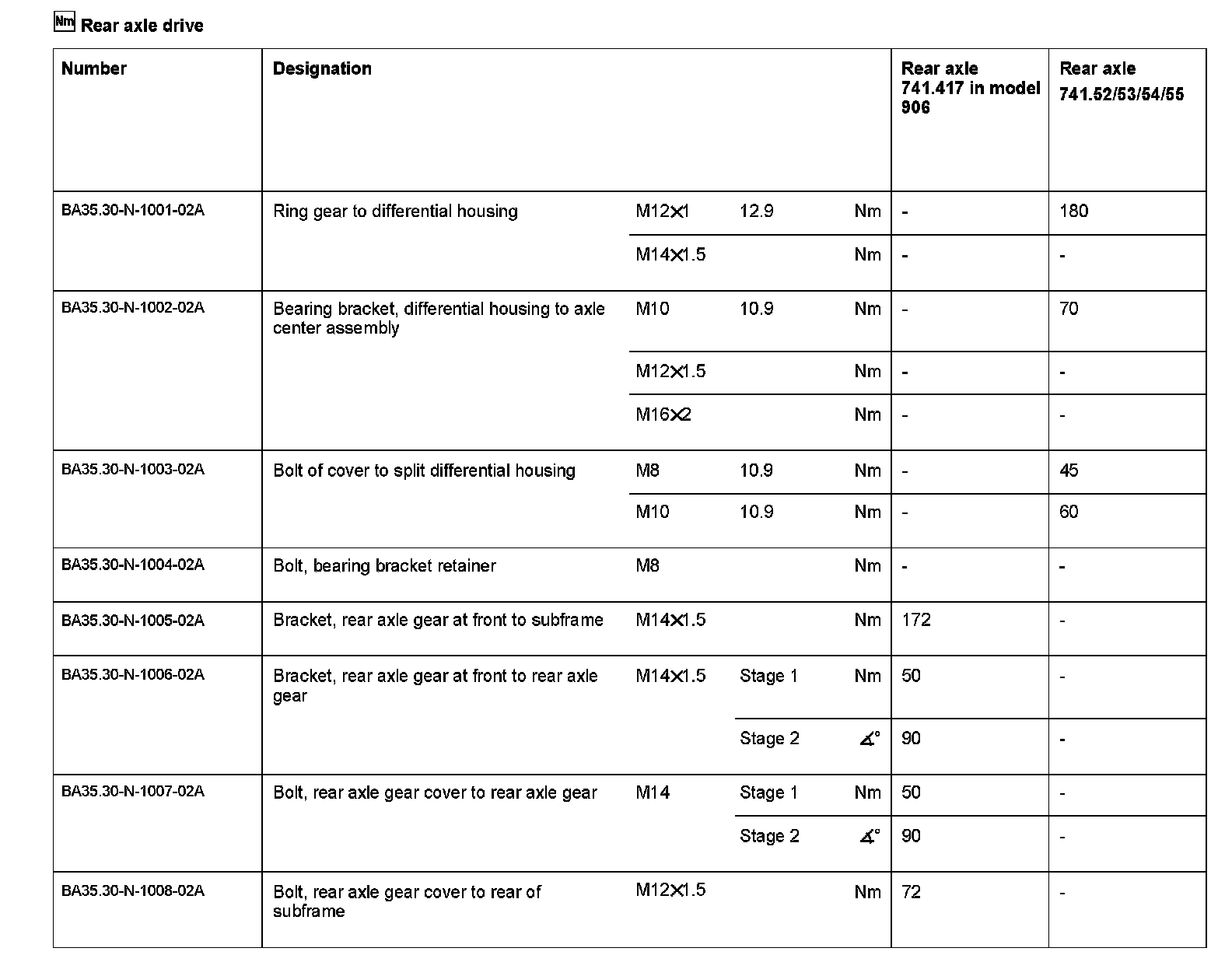

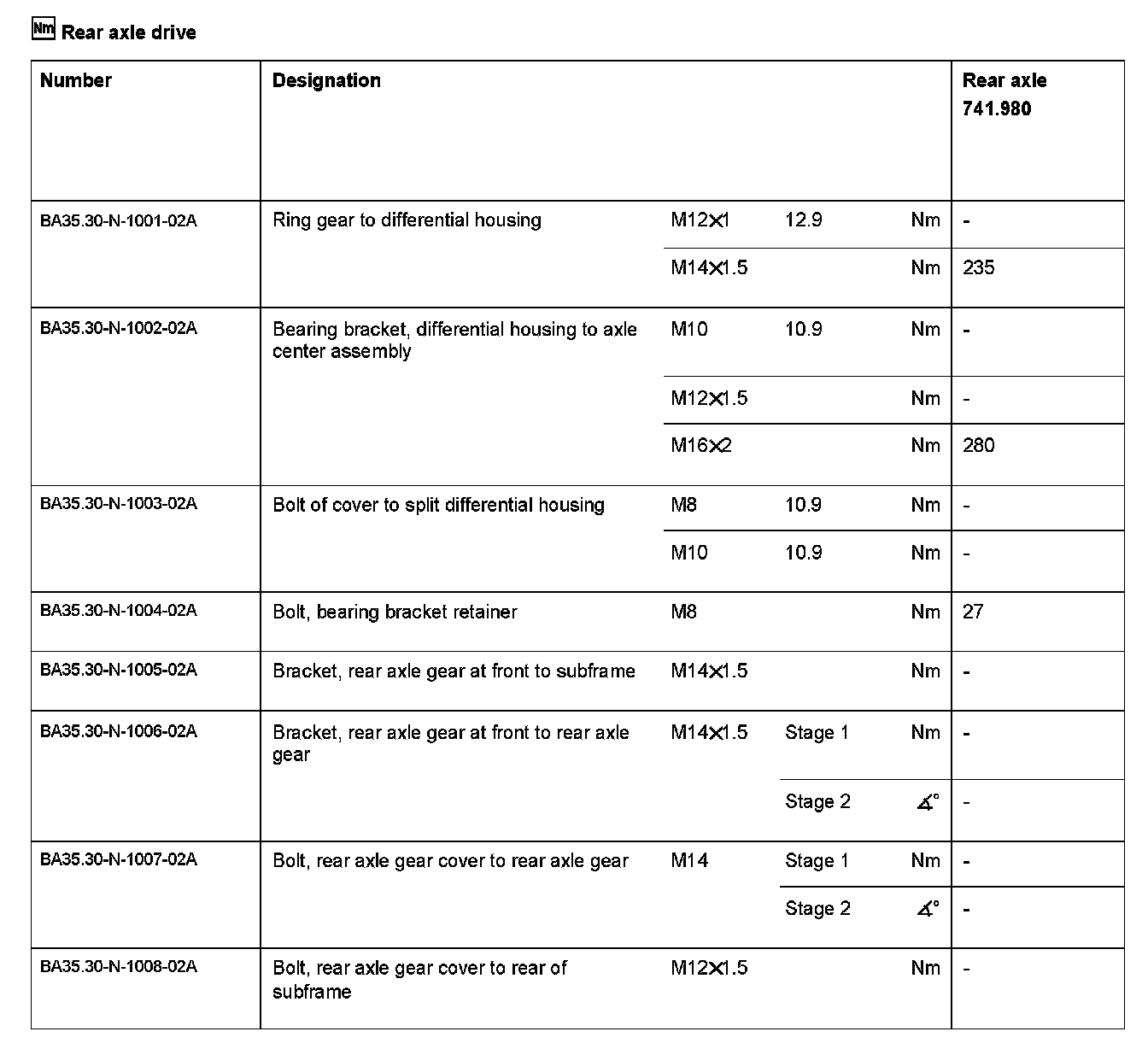

BA35.30-N-1000-02A Rear Axle Drive



BA35.30-N-1000-02A Rear Axle Drive

Rear axle 741
