Home >> Mercedes Benz Truck >> 2012 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Body and Frame >> Roof and Associated Components >> System Specifications

System Specifications

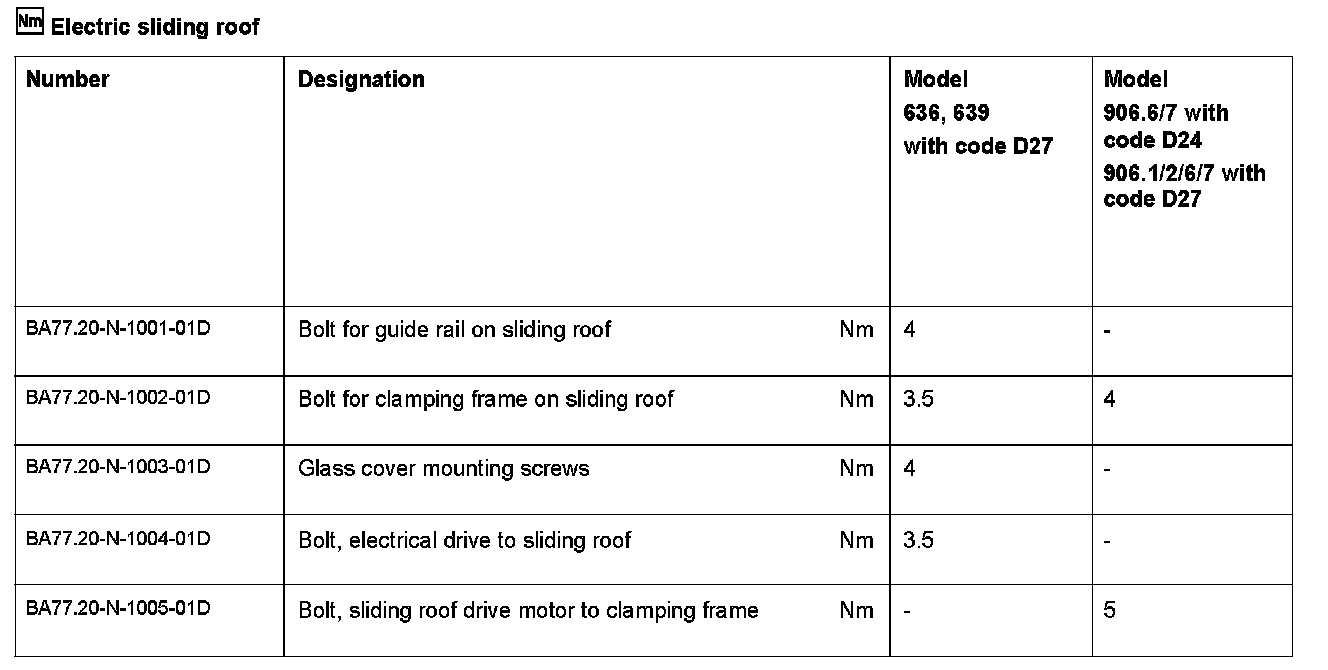

BA77.20-N-1000-01D Electric Sliding Roof

- with CODE (D27) Glass tilting/sliding roof, driver compartment
- with CODE (D27) Electr. glass tilting/sliding roof
- with CODE (D24) Power tilting/sliding roof, passenger
