Seat Belt Systems: Service and Repair

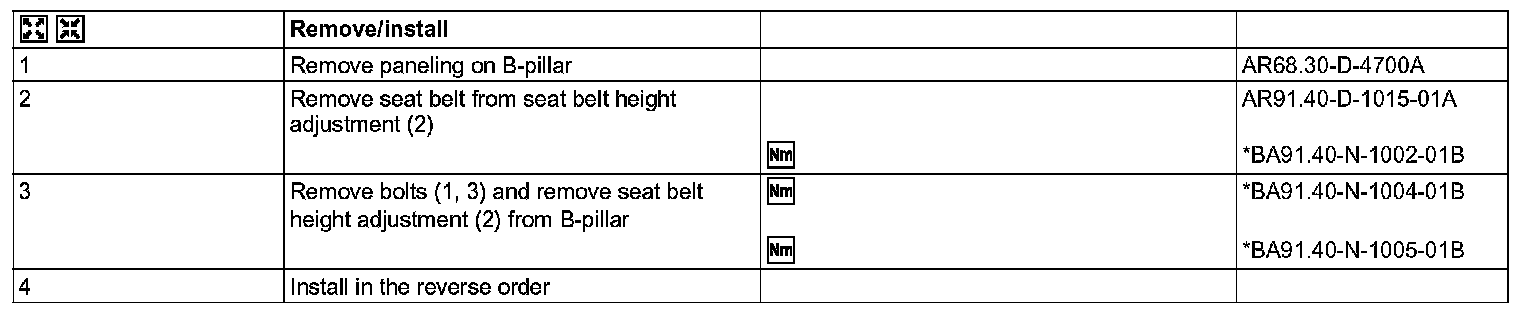

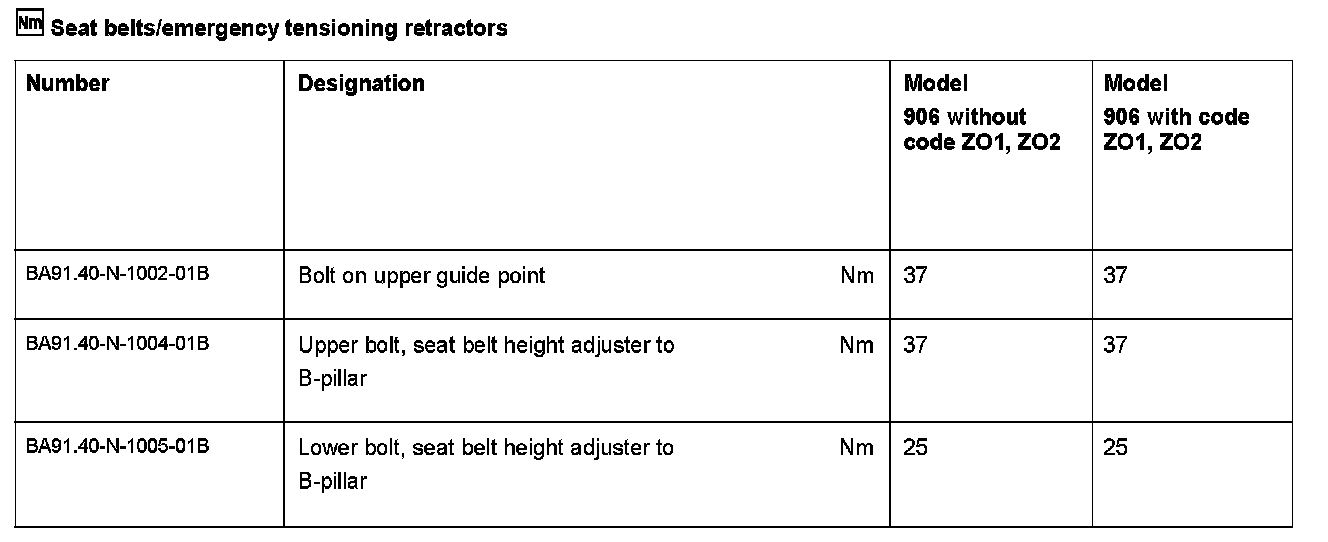

AR91.40-D-1105A Remove/install Seat Belt Height Adjustment On B-Pillar








1 Bolt
2 Seat belt height adjustment mechanism
3 Bolt
