Air Bag: Service and Repair

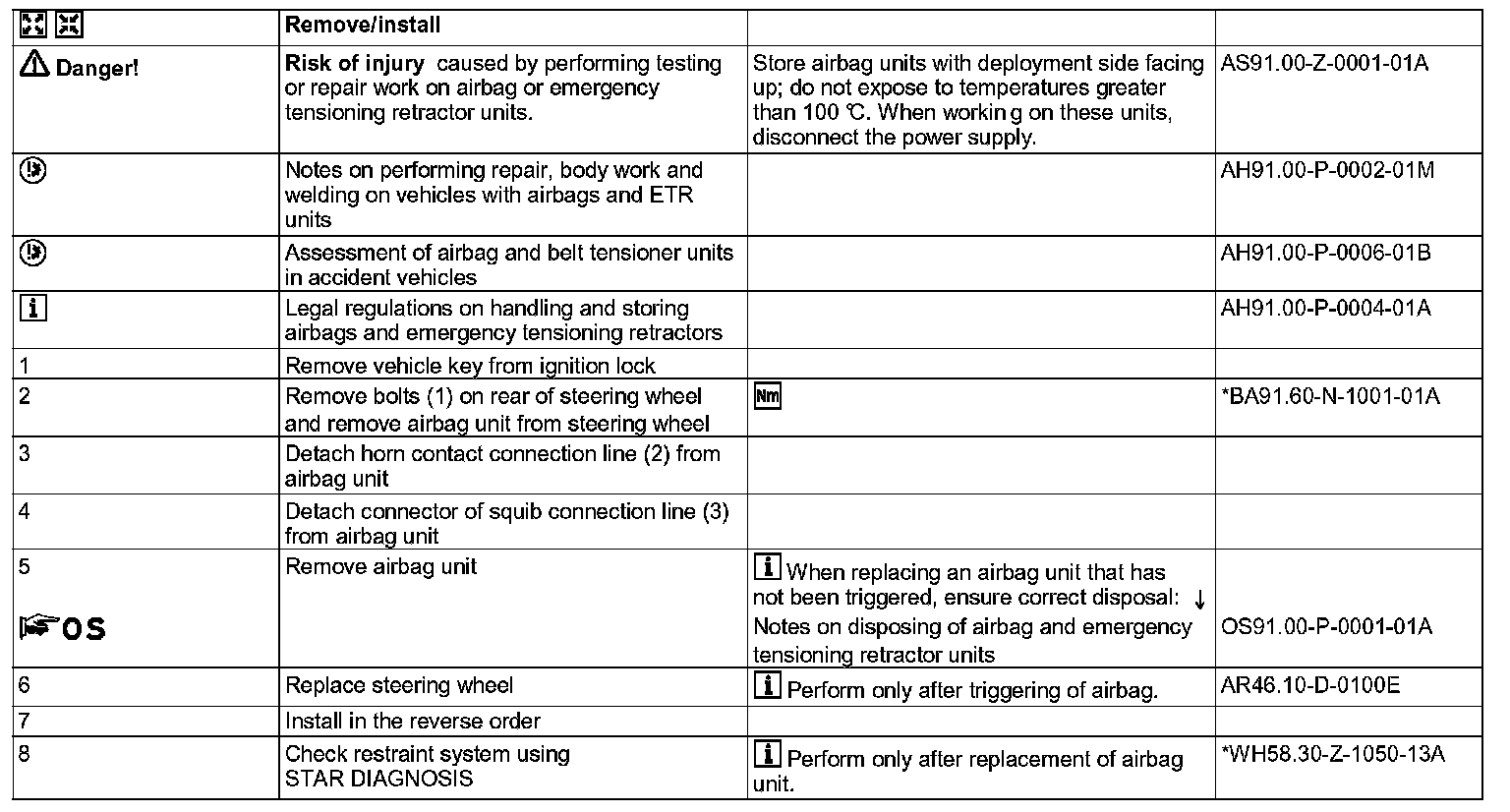

AR91.60-D-0660C Remove/Install Airbag Unit On The Steering Wheel

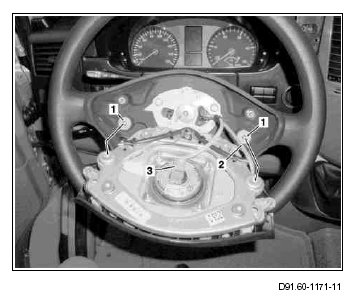

1 Bolt
2 Horn contact connection line
3 Connector of squib connection line
