GF14.20-S-4007SA Component Description For Exhaust Gas Recirculation Controller

GF14.20-S-4007SA Component Description For Exhaust Gas Recirculation Controller

ENGINES 642.8 in MODEL 906
- with CODE (MG5) Engine OM 642 DE 30 LA, 140 kW (190 hp) 3800 rpm
- except CODE (ZU7) National version for Canada
- except CODE (ZU8) National version for USA

ENGINES 642.8 in MODEL 639
- with CODE (XZ1)
- with CODE (MZ0) Blue EFFICIENCY

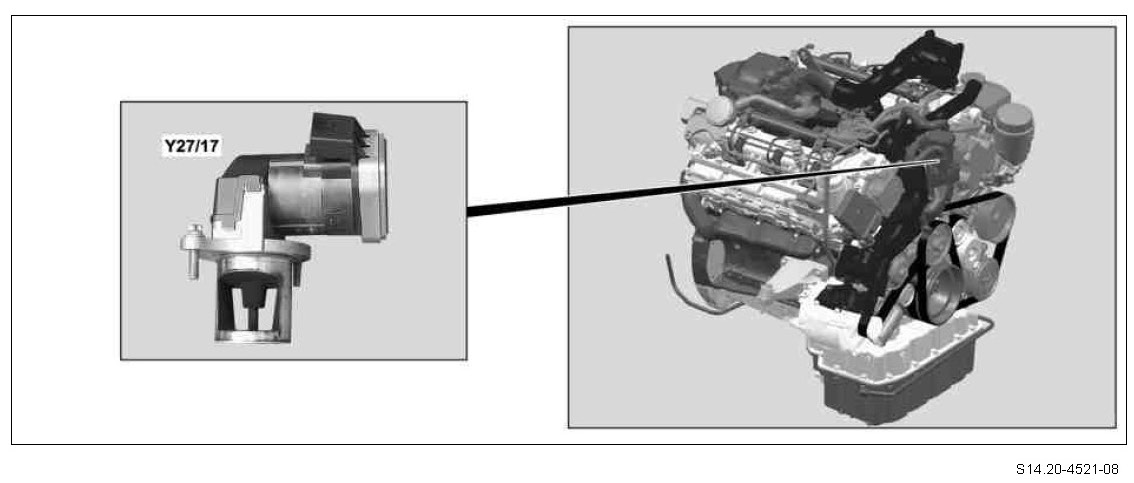

View of the engine from the front






Y27/17 Exhaust gas recirculation positioner

Location
The exhaust gas recirculation positioner is located at the left rear beside the exhaust gas turbocharger.

Task
The exhaust gas recirculation positioner controls the exhaust flow which is led into the intake tract of the engine to reduce the nitrogen oxides (NOX) emissions.

Function
The exhaust gas recirculation positioner changes the flow cross section of the duct through which recycled exhaust flows.

The exhaust gas recirculation actuator is integrated in the cooling circuit of the engine as protection against thermal overload.
