Overhaul

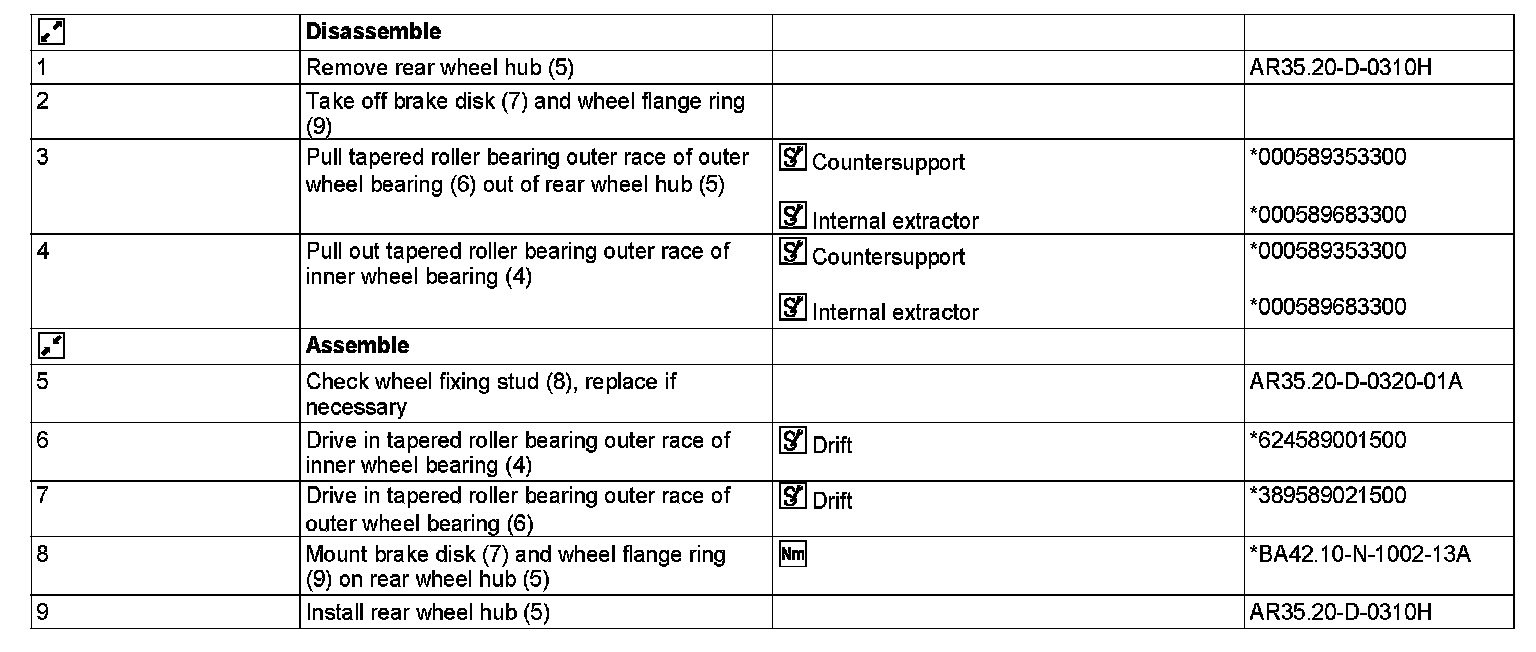

AR35.20-D-0320H Disassemble/Assemble Rear Wheel Hub

REAR AXLE 741.413 /414 /416 /420 in MODEL 906
REAR AXLE 741.413 /414 /420 in MODEL 900.65
REAR AXLE 741.429 in MODEL 8AC906.153 /155 /655 /657
- with CODE (ZL3) National version for Latin America

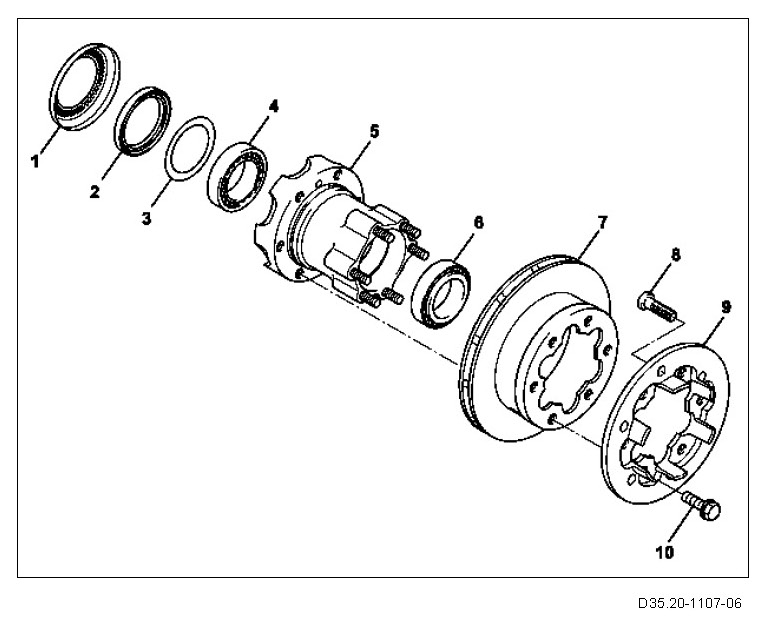

1 ABS sensor ring
2 Radial sealing ring
3 Spacer ring
4 Inner wheel bearing
5 Rear wheel hub
6 Outer wheel bearing
7 Brake disk
8 Wheel fixing stud
9 Wheel flange ring
10 Screw










000 589 35 33 00, Counter stay






000 589 68 33 00, Internal puller






389 589 02 15 00, Drift






624 589 00 15 00, Drift
