Home >> Mercedes Benz Truck >> 2012 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Combination Switch >> Service and Repair

Combination Switch: Service and Repair

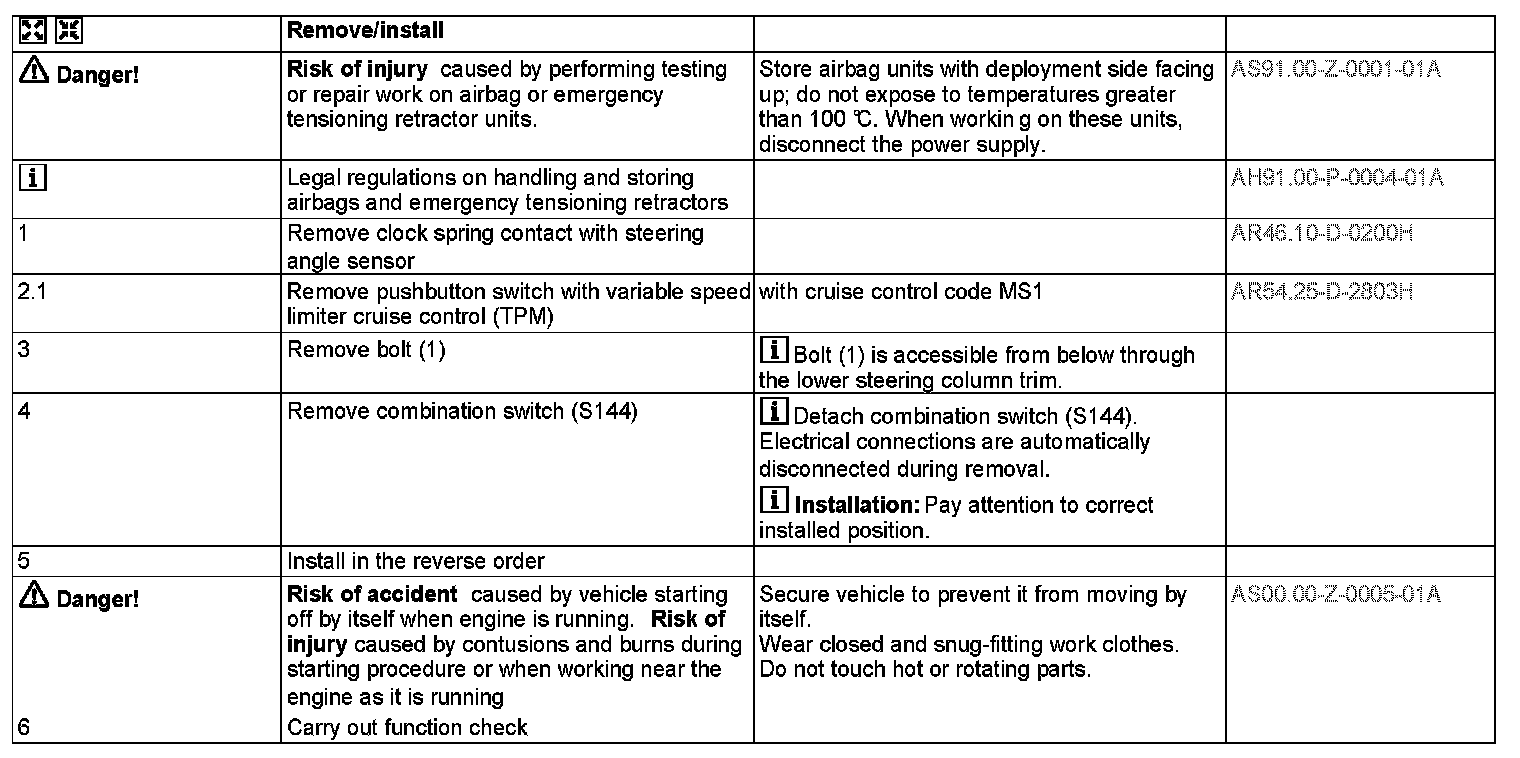

AR54.25-D-2800H Remove/Install Combination Switch








1 Bolt
S144 Combination switch
