Compressor HVAC: Service and Repair

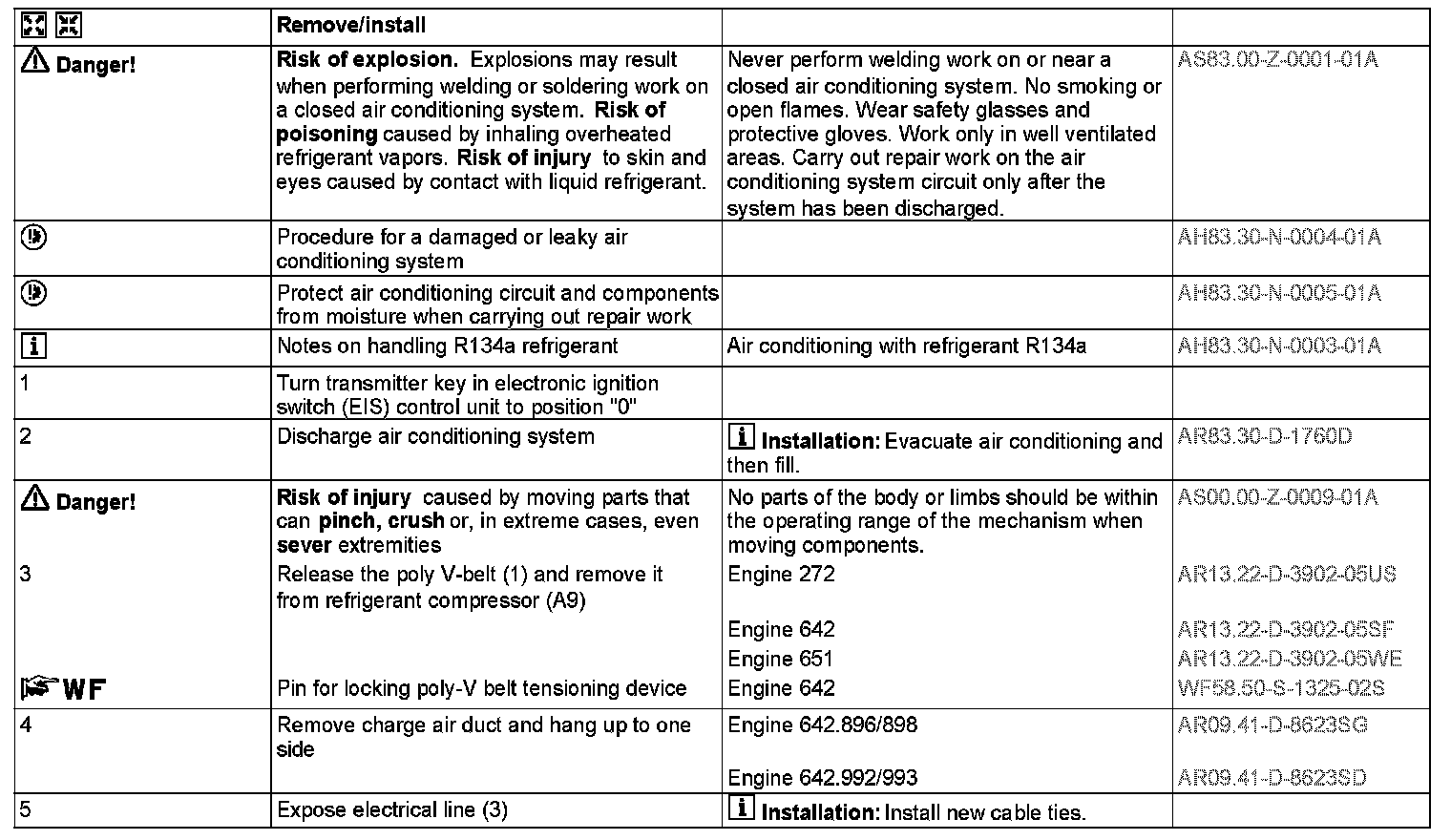

AR83.55-D-5300US Remove/Install Refrigerant Compressor

- with CODE (HH9) Regulated air conditioning (Tempmatic)

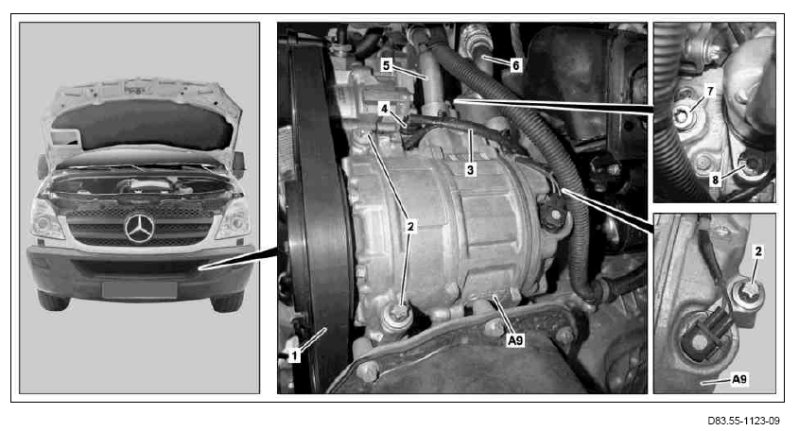

Shown on engine 272.979
1 Poly-V-belt
2 Bolts
3 Electrical line
4 Electrical connector
5 Refrigerant line
6 Refrigerant line
7 Screw
8 Screw
A9 Refrigerant compressor
