Exhaust Pipe: Service and Repair

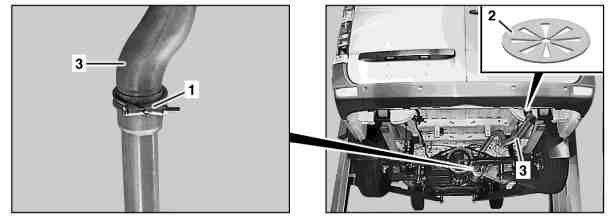

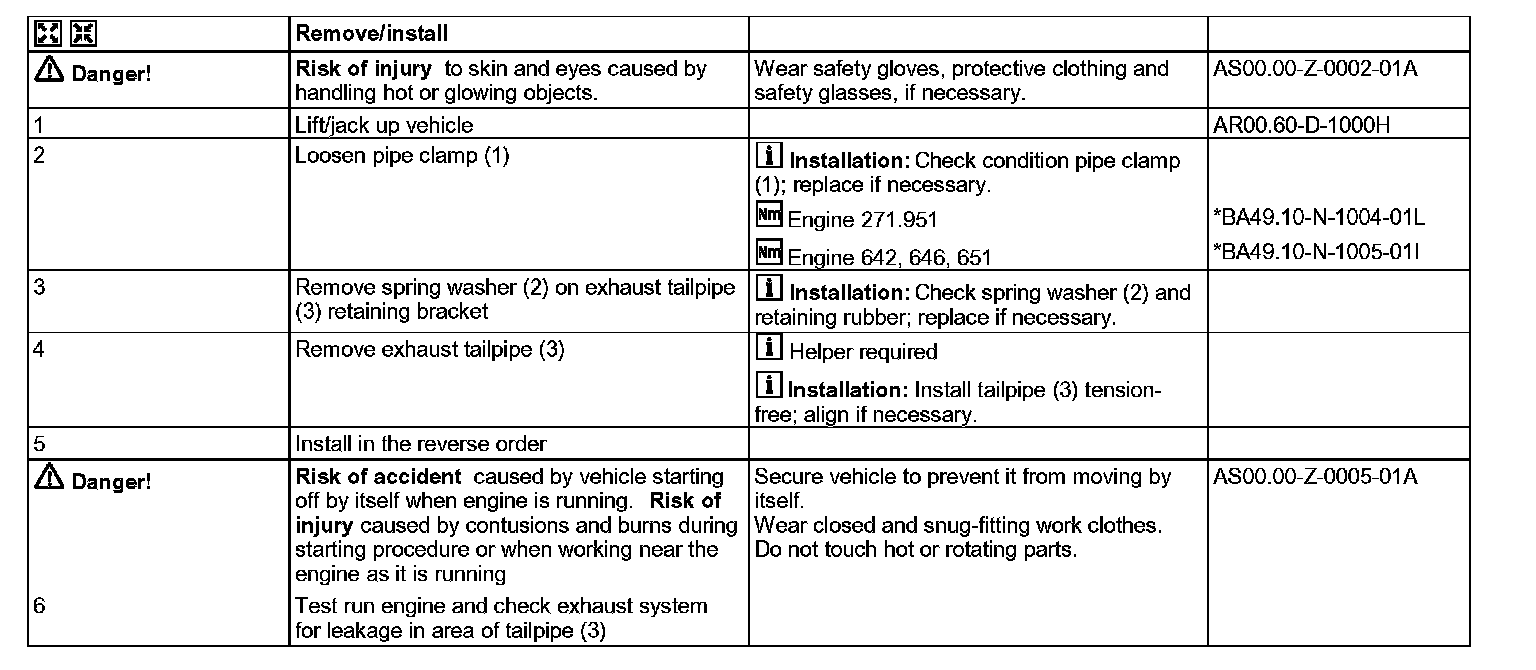

AR49.10-D-7150SD Remove/Install Exhaust System Tailpipe






1 Pipe clamp
2 Spring washer
3 Tailpipe
