AR14.10-D-3930SF Remove/Install Left Exhaust Manifold

AR14.10-D-3930SF Remove/Install Left Exhaust Manifold

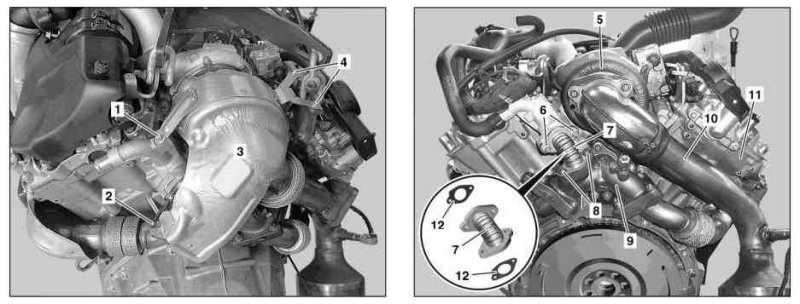

Shown on engine 642.992

1 Screw
2 Screw
3 Shield
4 Bolts
5 Turbocharger
6 Bolts (engine 642.992)
7 Exhaust gas recirculation pipe (engine 642.992)
8 Bolts (engine 642.992)
9 Exhaust collector pipe
10 Exhaust pipe
11 Right cylinder head
12 Seal (engine 642.992)





Shown on engine 642.992

9 Exhaust collector pipe
13 Screw
14 Bracket
15 Bolts
16 Bolts
17 Shield
18 Exhaust manifold
19 Fuel pipe
20 Left cylinder head
21 Stud bolt
22 Nut
23 Gasket
24 Gasket
25 Screw
