AR33.10-D-0100H Remove/Install Front Axle

AR33.10-D-0100H Remove/Install Front Axle

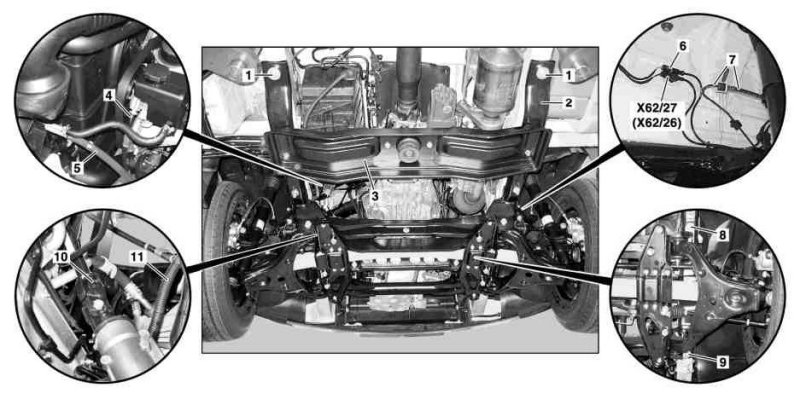

1 Bolts
2 Frame-type integral support
3 Transmission crossmember
4 High pressure line
5 Return flow pipe
6 Brake pad wear indicator connector
7 Brake line
8 Screw
9 Screw
10 Universal joint
11 Generator wiring harness

X62/26 Left front rpm sensor connector
X62/27 Right front rpm sensor connector





12 Bleed line (only on all-wheel drive vehicles)
































129 589 00 91 00
Set of stop plugs





210 589 00 71 00
Hand pump





906 589 00 62 00
Assembly tool





639 589 00 61 00
Engine lifting fixture





906 589 01 61 00
Support plates





906 589 03 61 00
Strut





906 589 03 62 00
Transmission support fixture





906 589 03 62 01
Tapping plate
