Drive Belt Tensioner: Service and Repair




AR13.25-S-3200SE Remove/install Poly-V-belt Tensioning Device

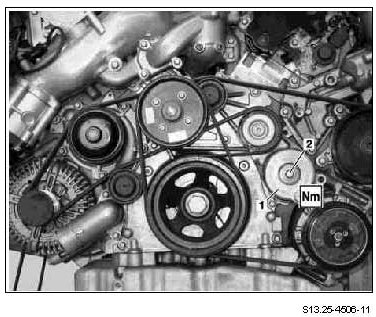

1 Tensioning device
2 Screw
