Towing / Trailer System

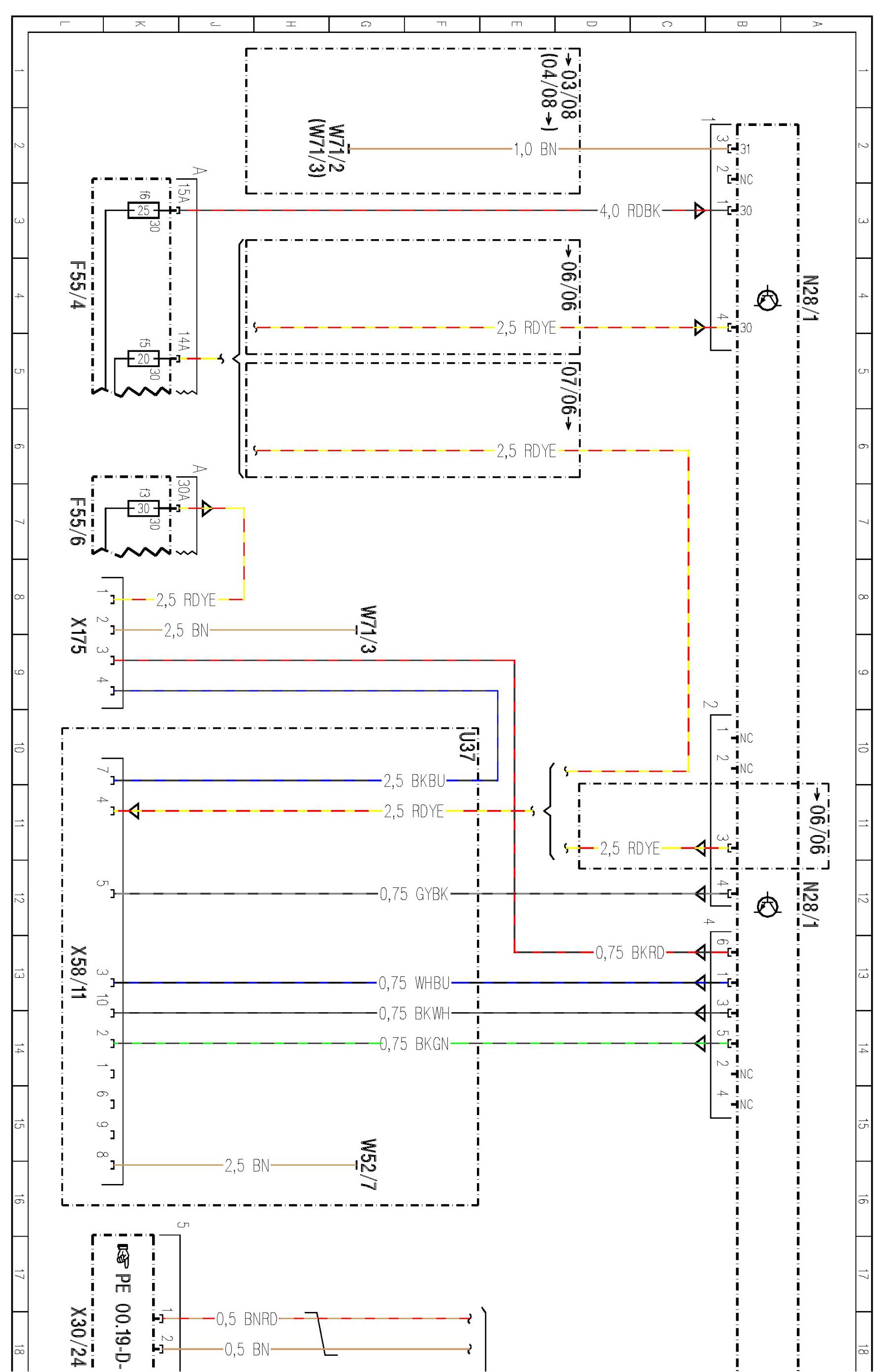

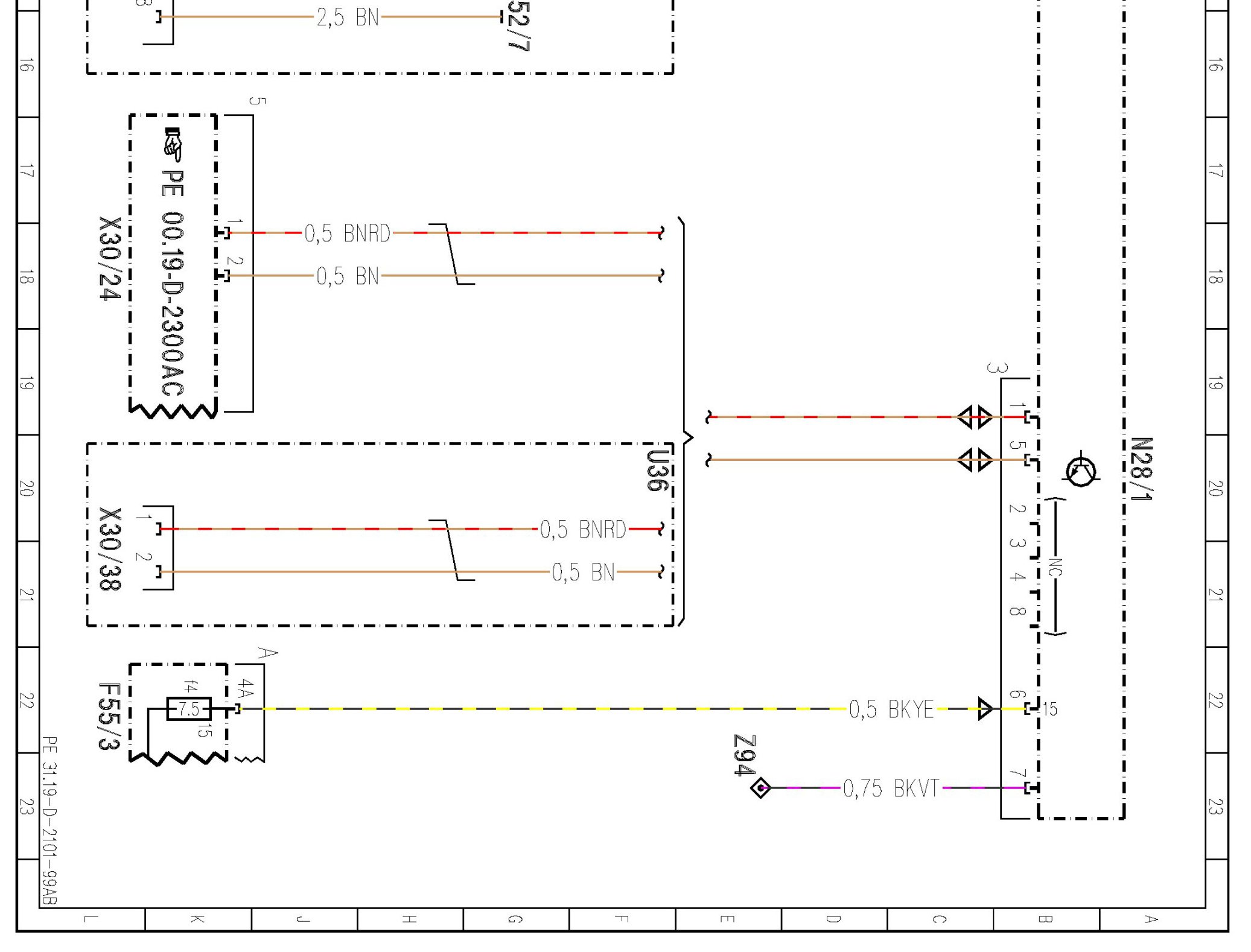

PE31.19-D-2101AB Trailer Recognition Control Unit Wiring Diagram

906 31 Overview of wiring diagrams of trailer coupling
MODEL 906.1 /2 /6 /7
- with CODE (E40) Trailer socket (7-pin)
- with CODE (E58) Electrical system for trailer socket
