Home >> Mercedes Benz Truck >> 2012 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering Column Control Module

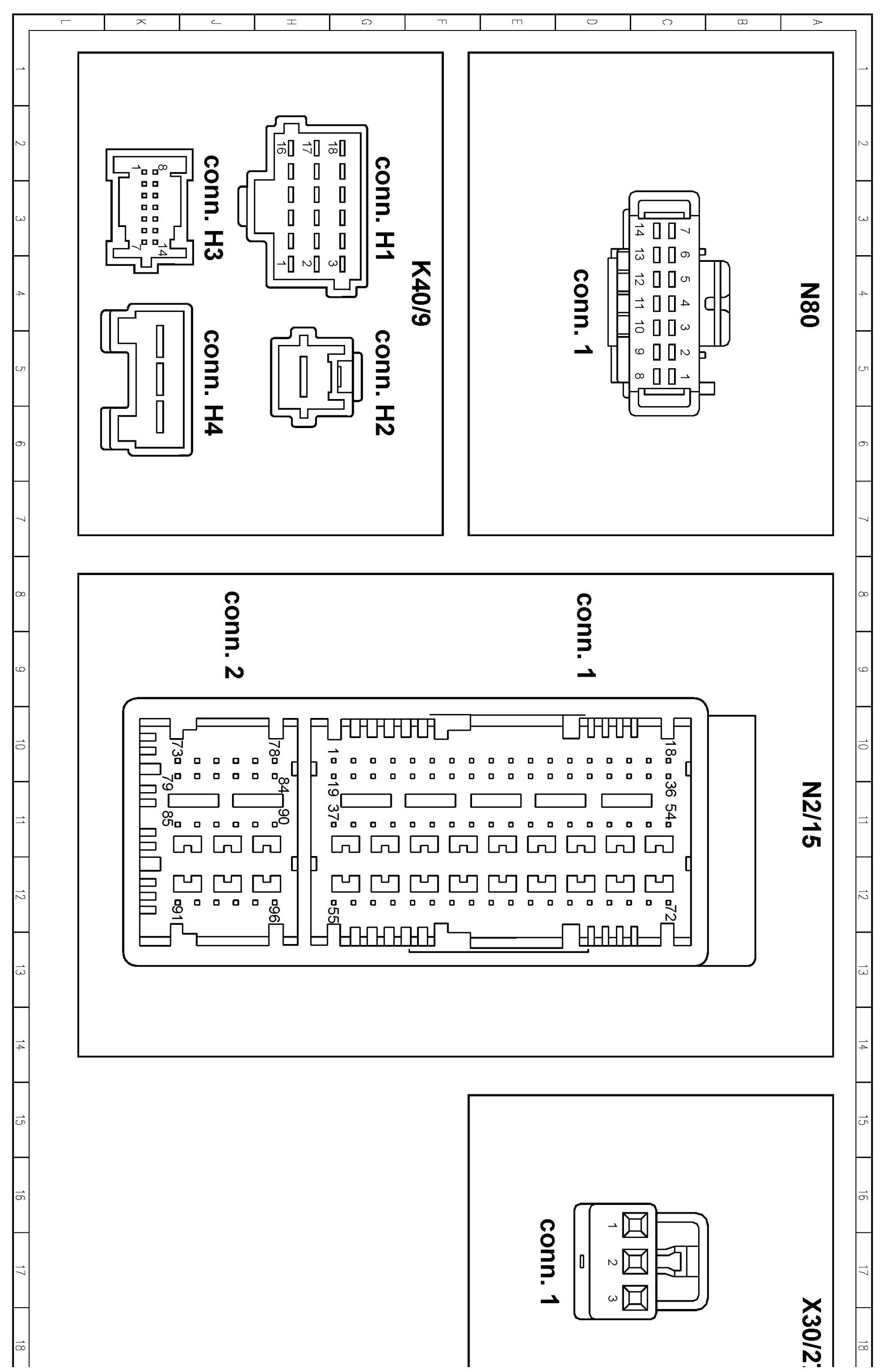

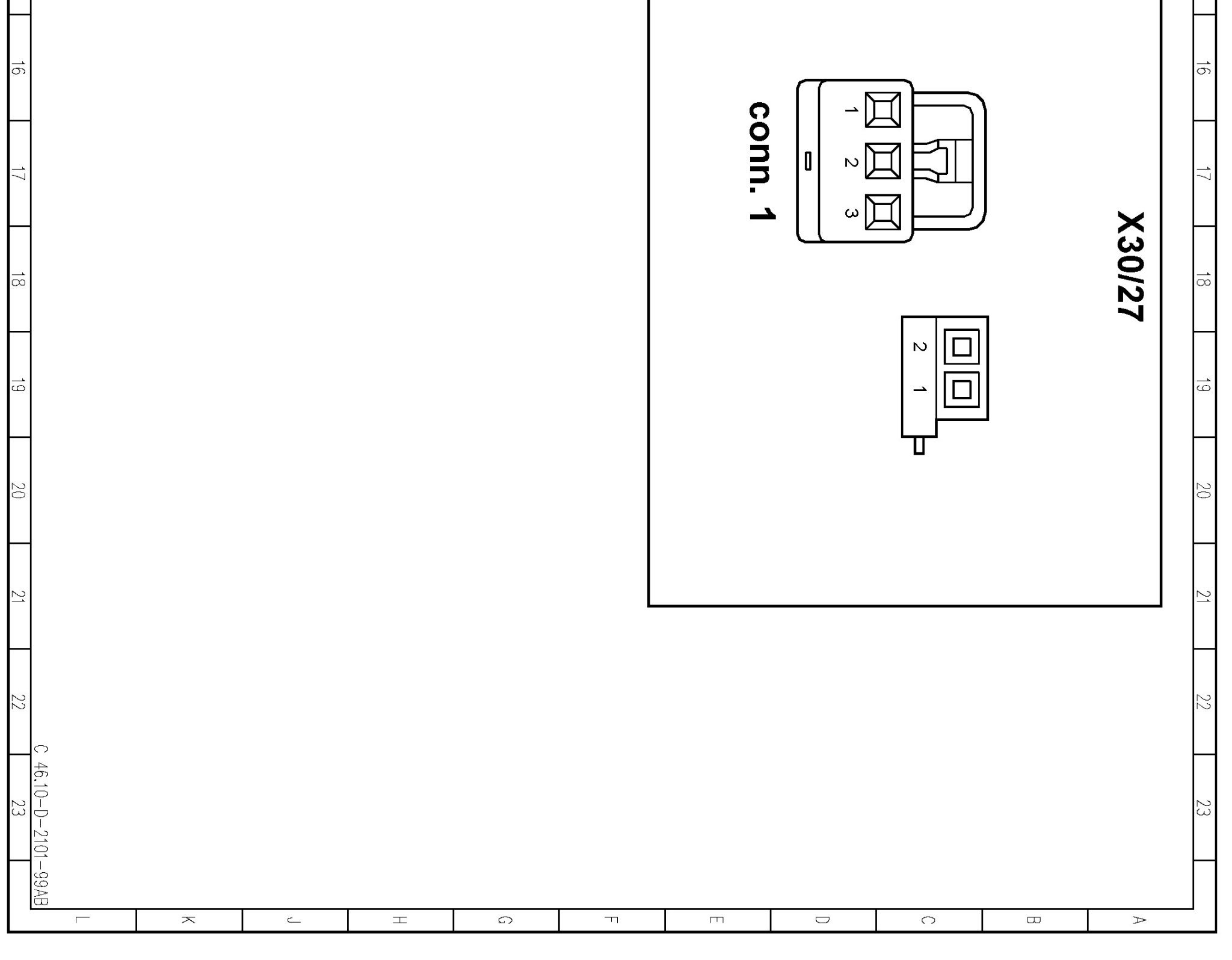

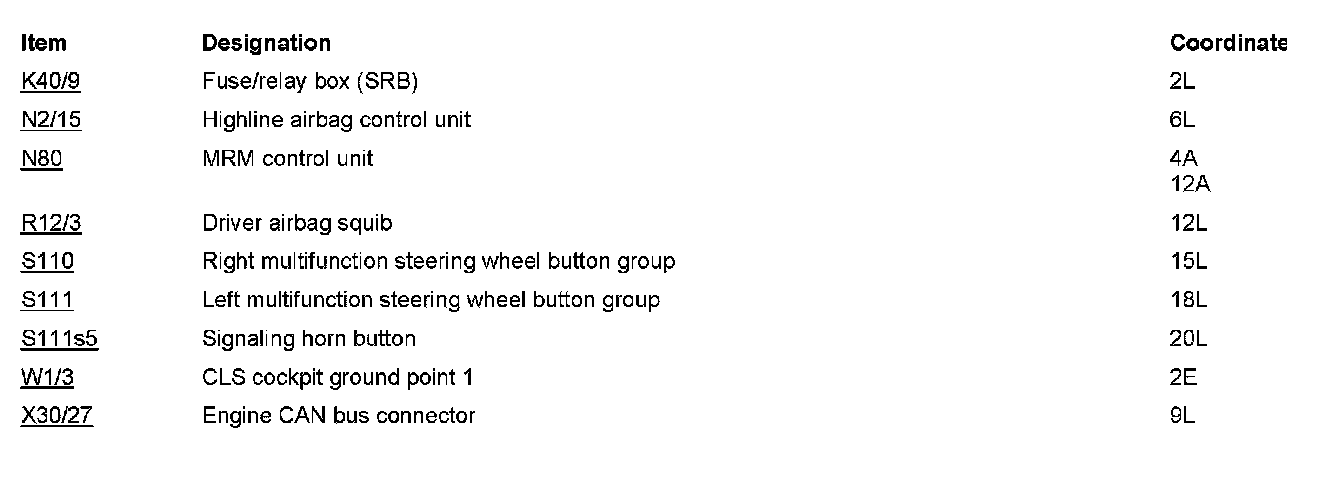

Steering Column Control Module

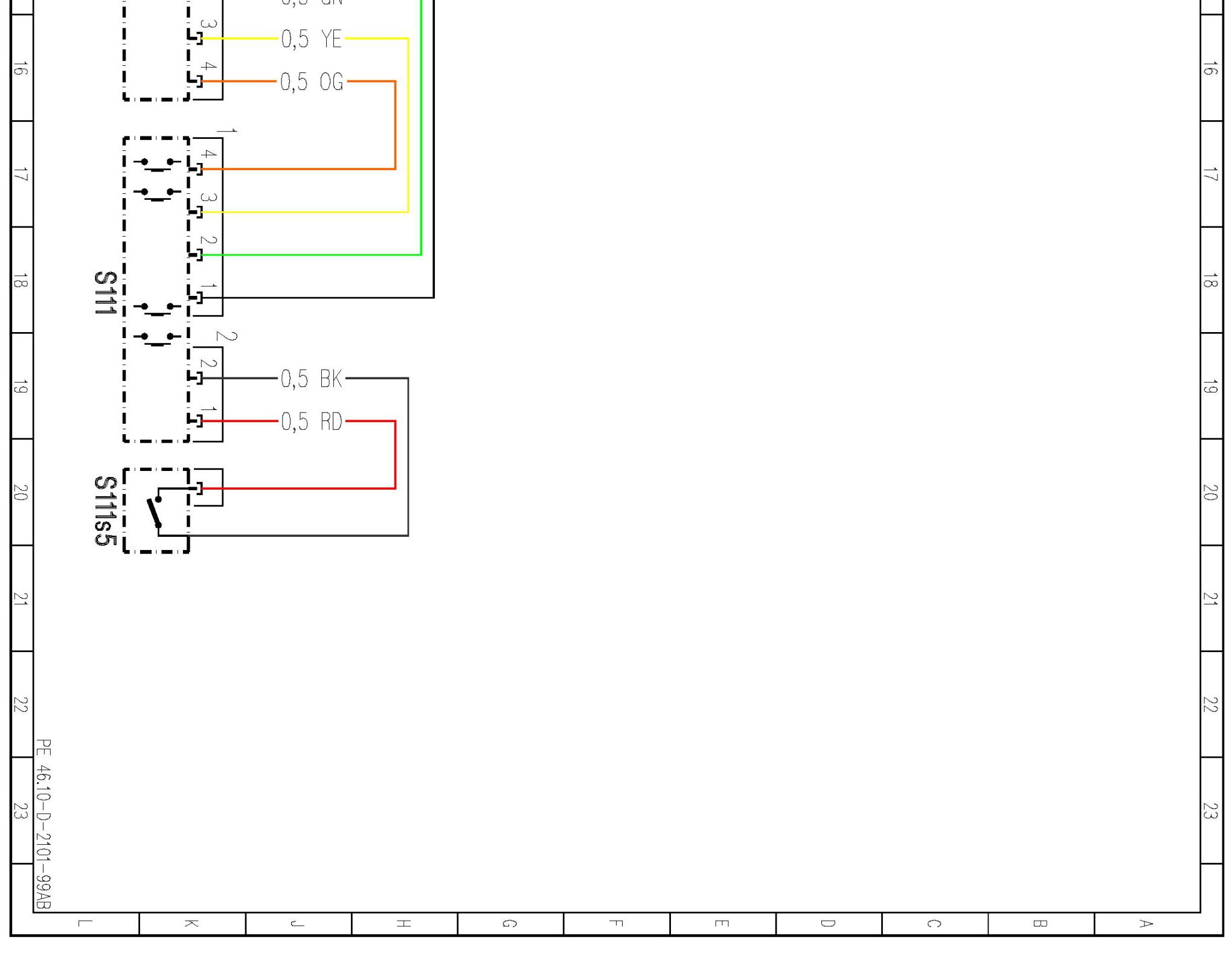

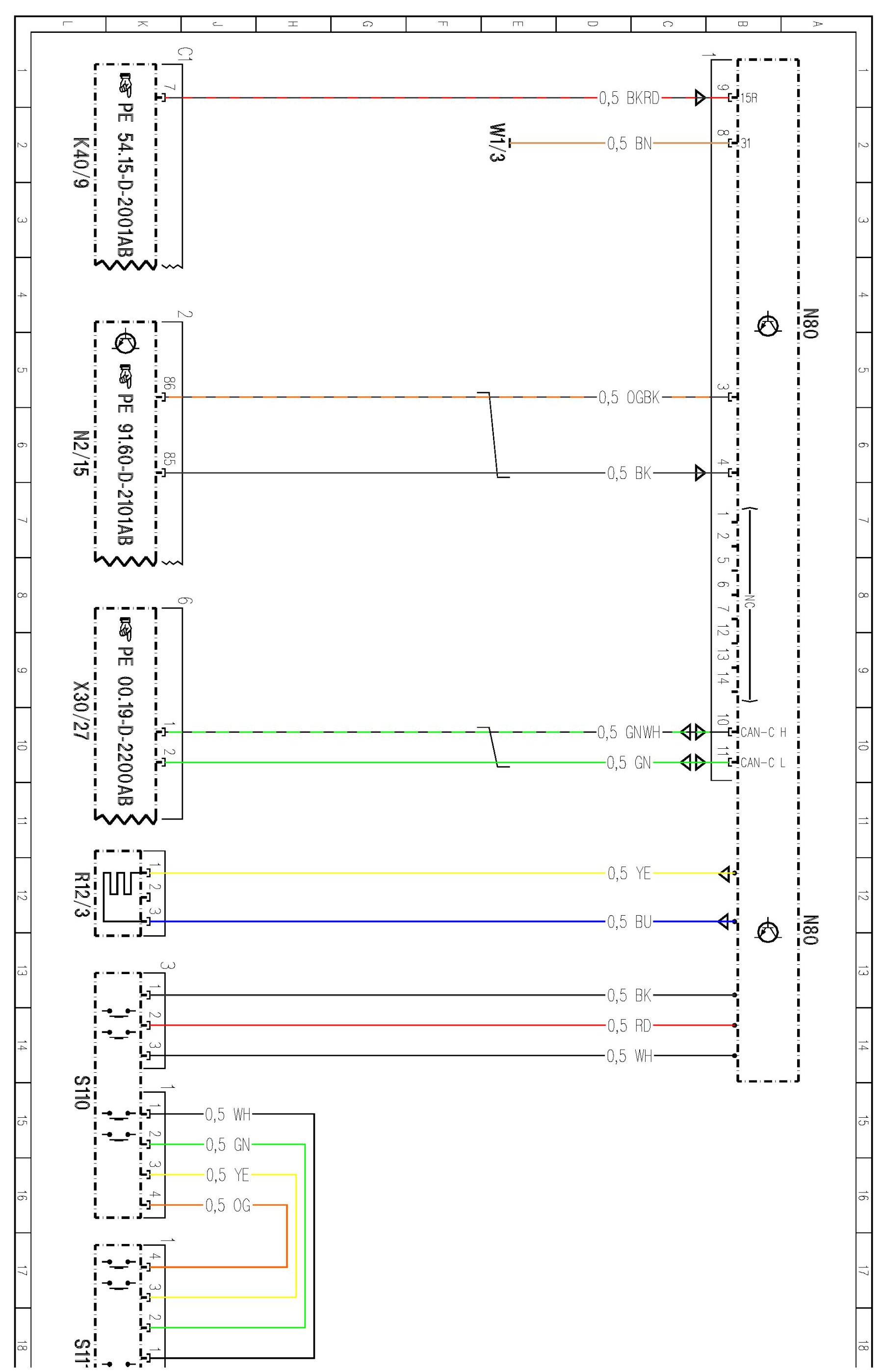

PE46.10-D-2101AB Steering Column Module Control Unit

906 46 Steering
Model 906.1 /2 /6 /7
