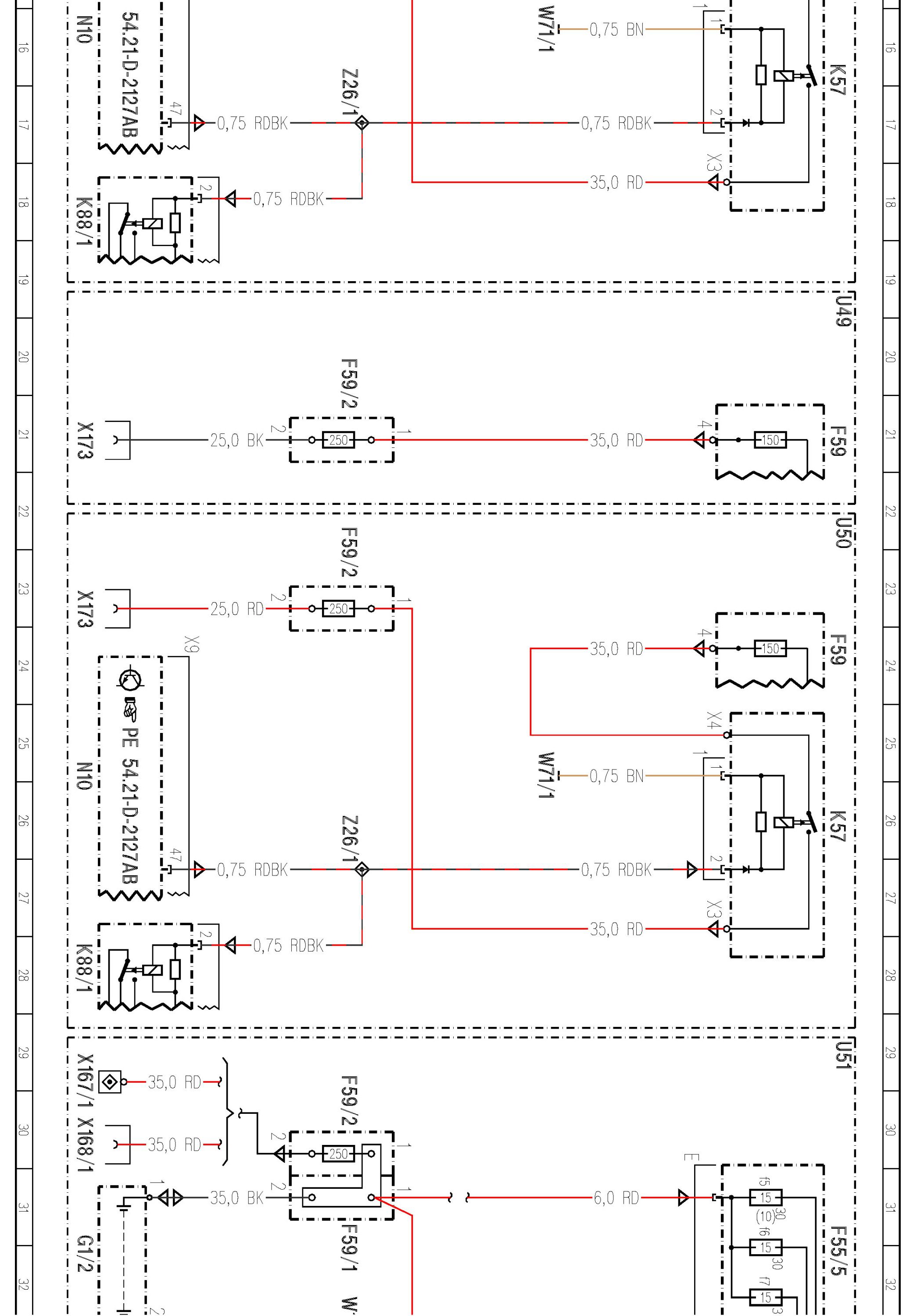

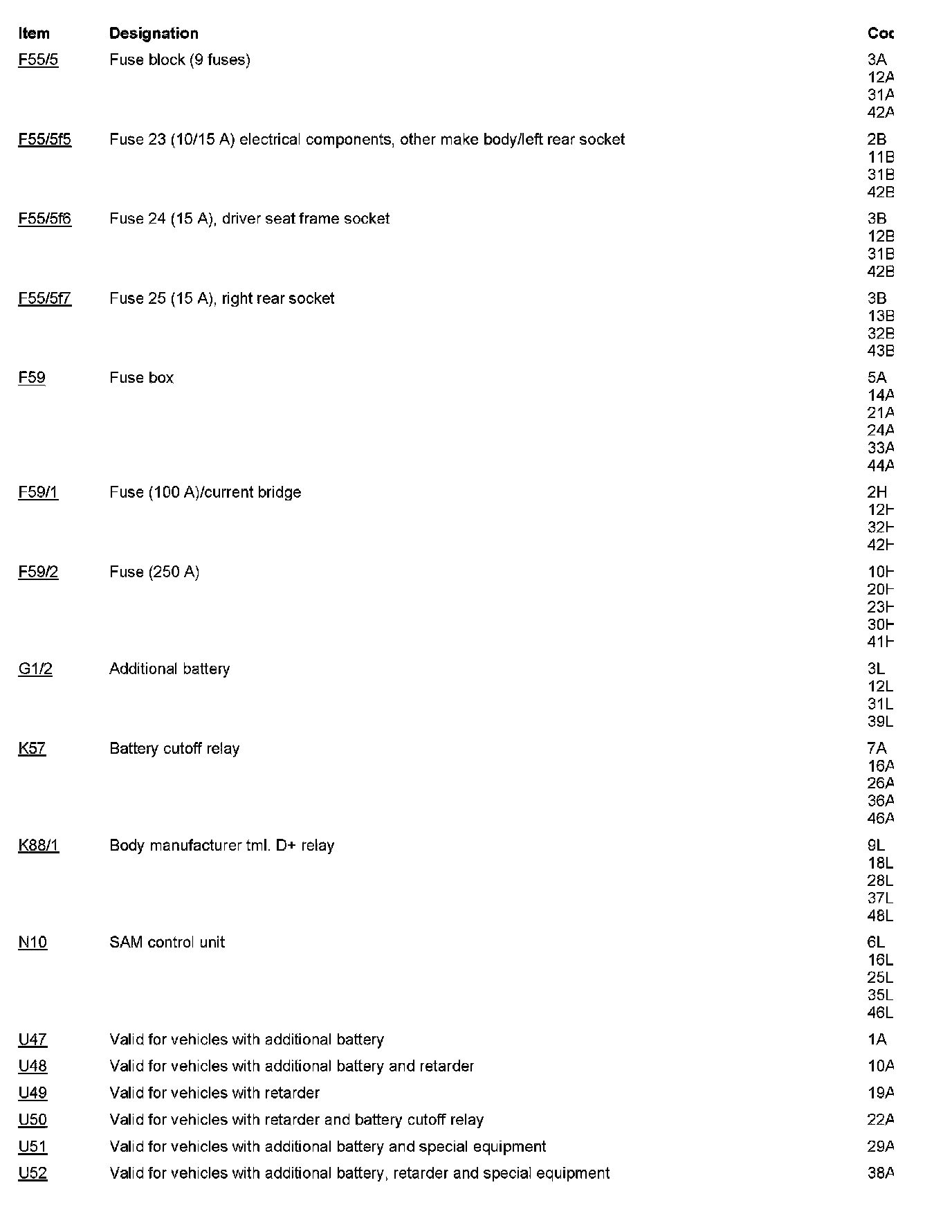

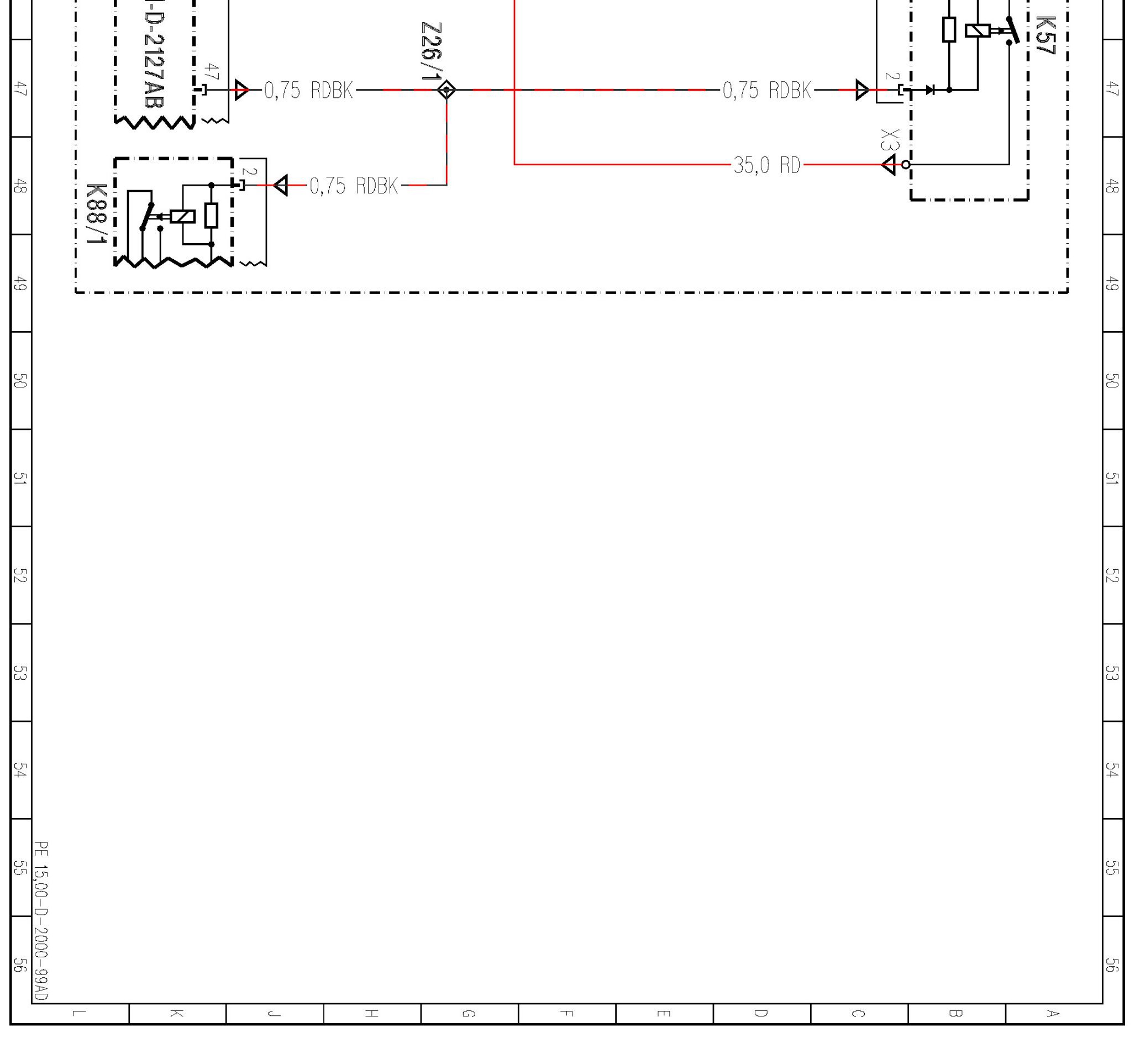

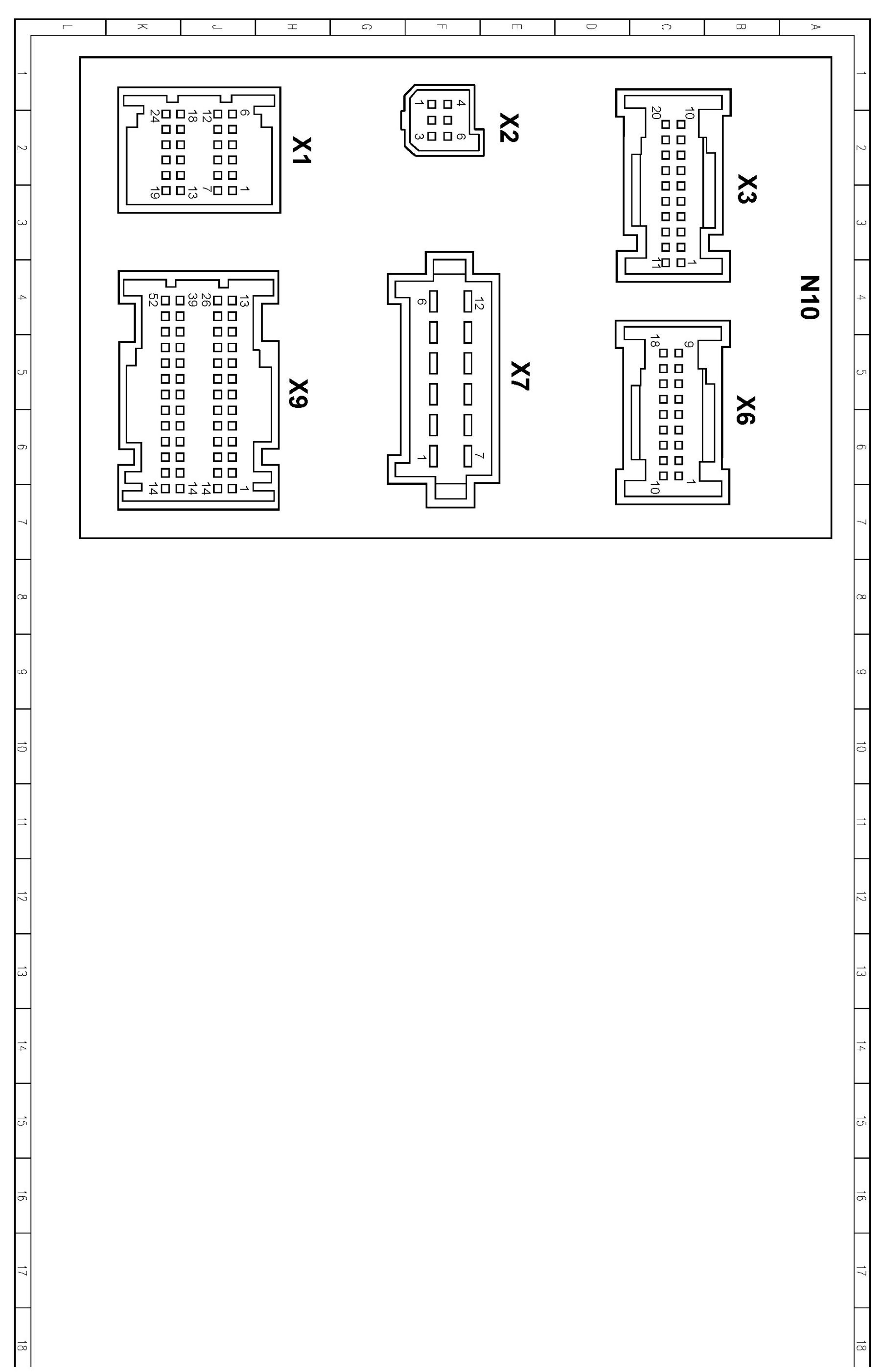

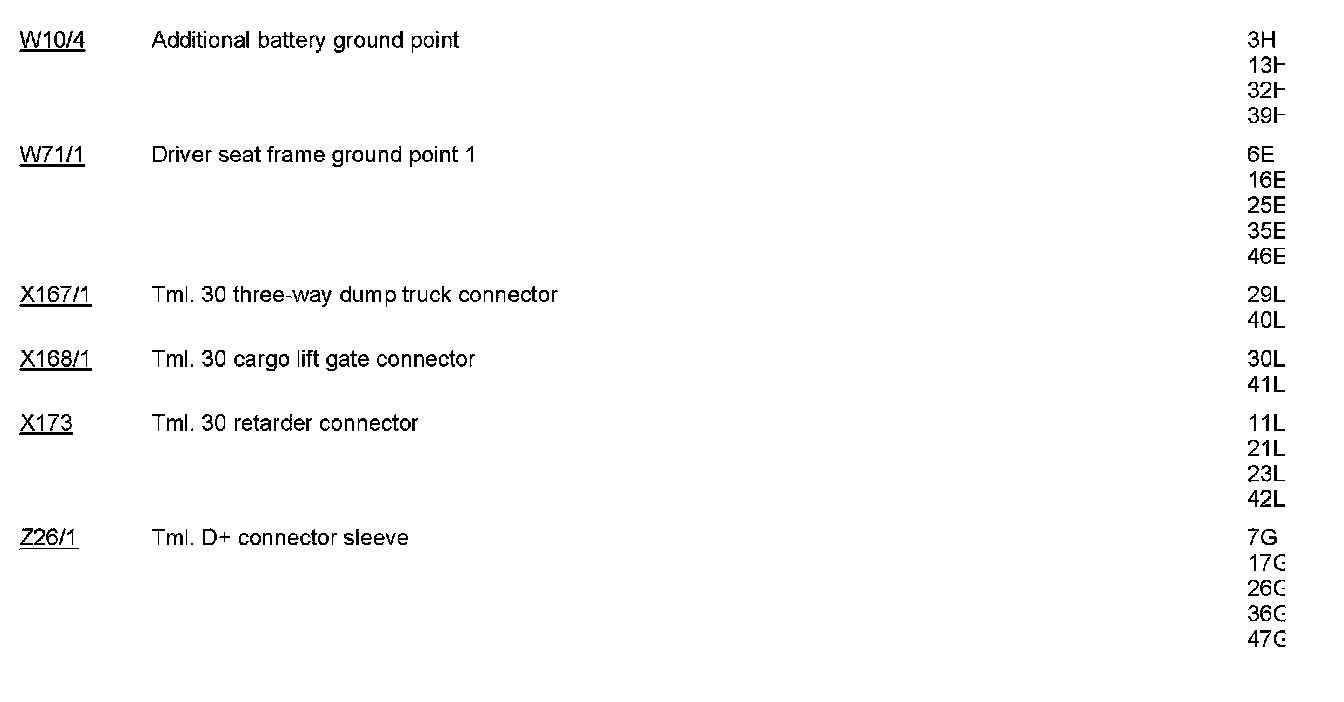

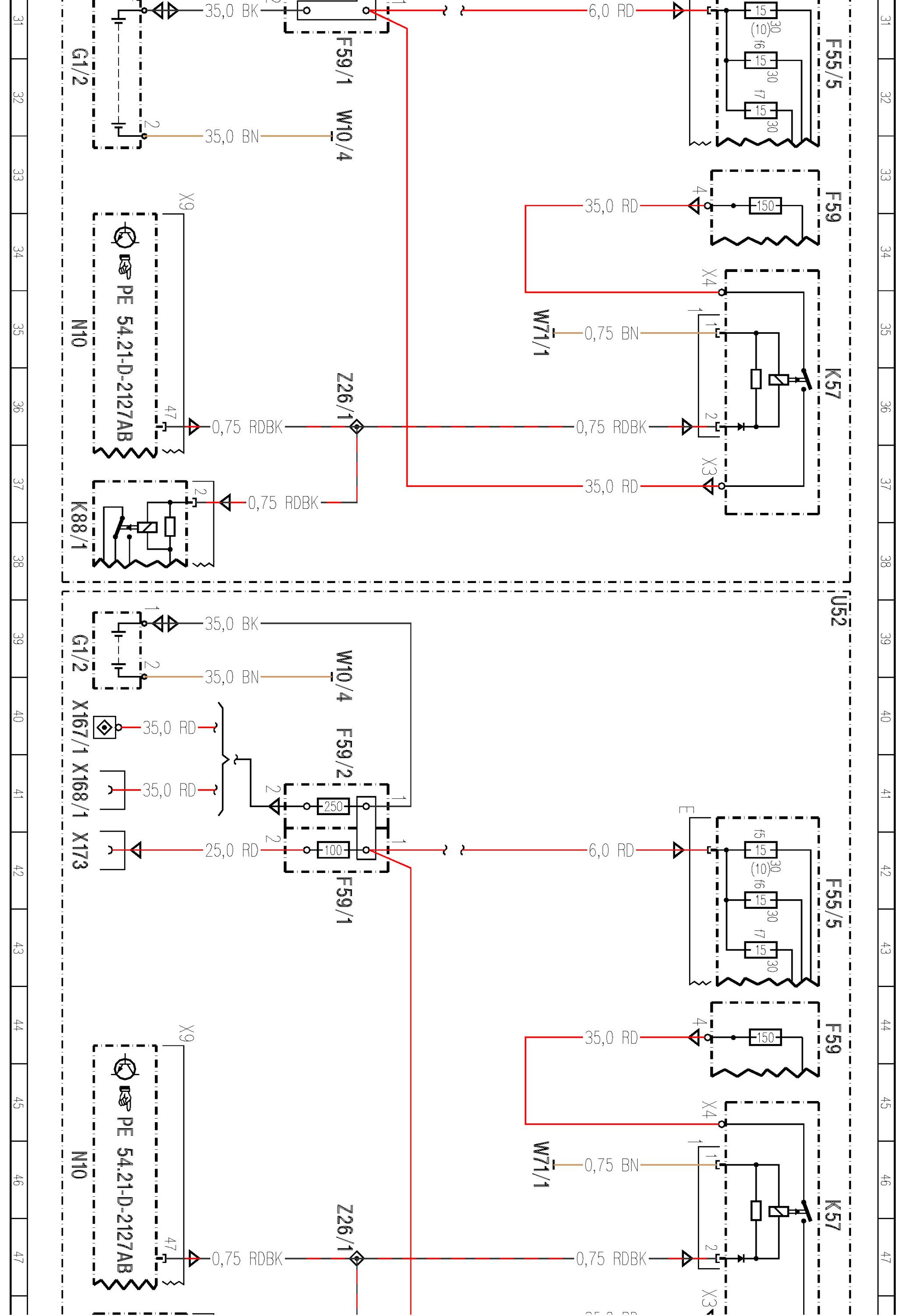

PE15.00-D-2000AD Starter, Alternator



PE15.00-D-2000AD Starter, Alternator

906 15 Engine - Electrical
ENGINE 272, 642 in MODEL 906.1 /2 /6 /7 as of 09/01/06
- with CODE (E36) Cutoff relay
