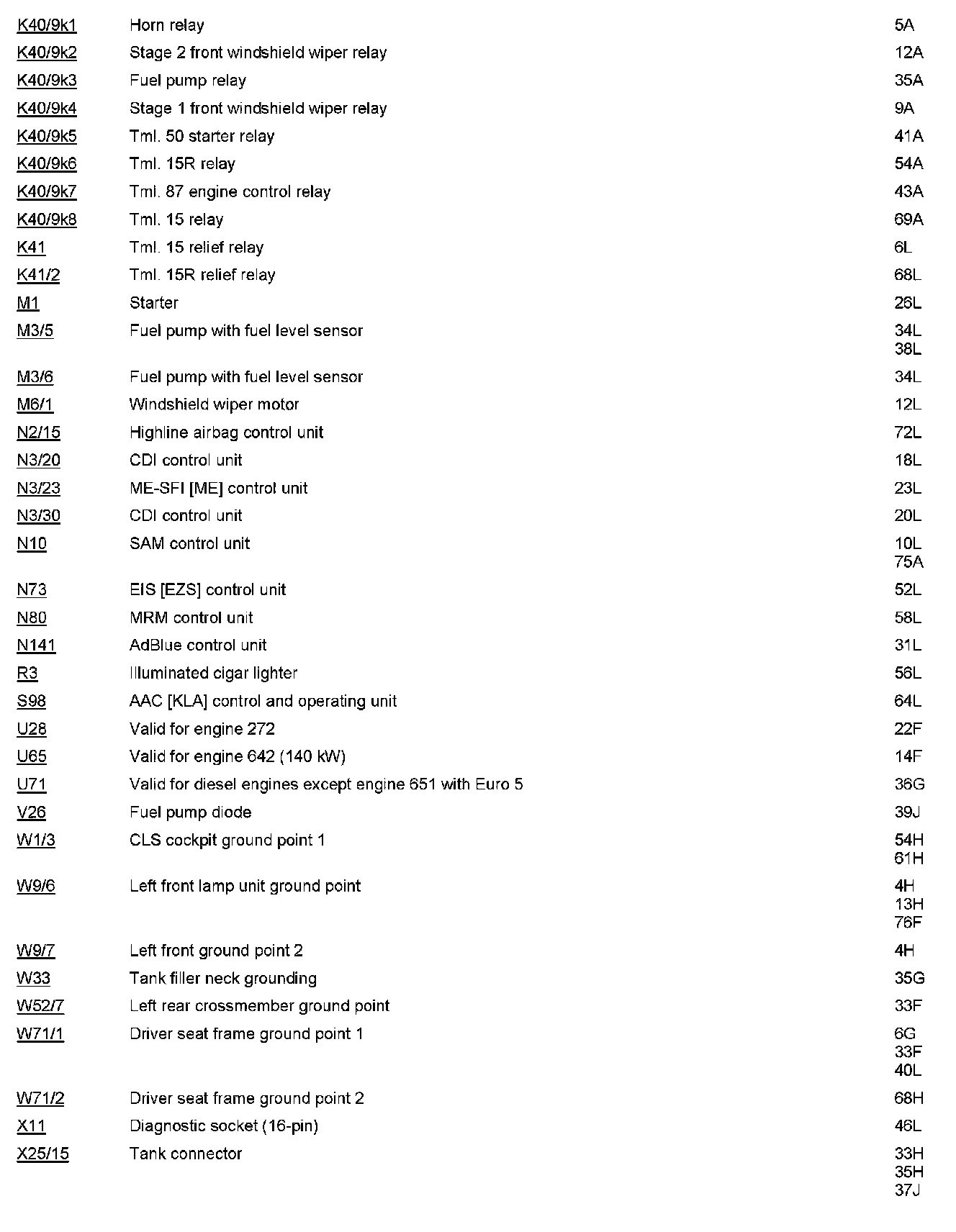

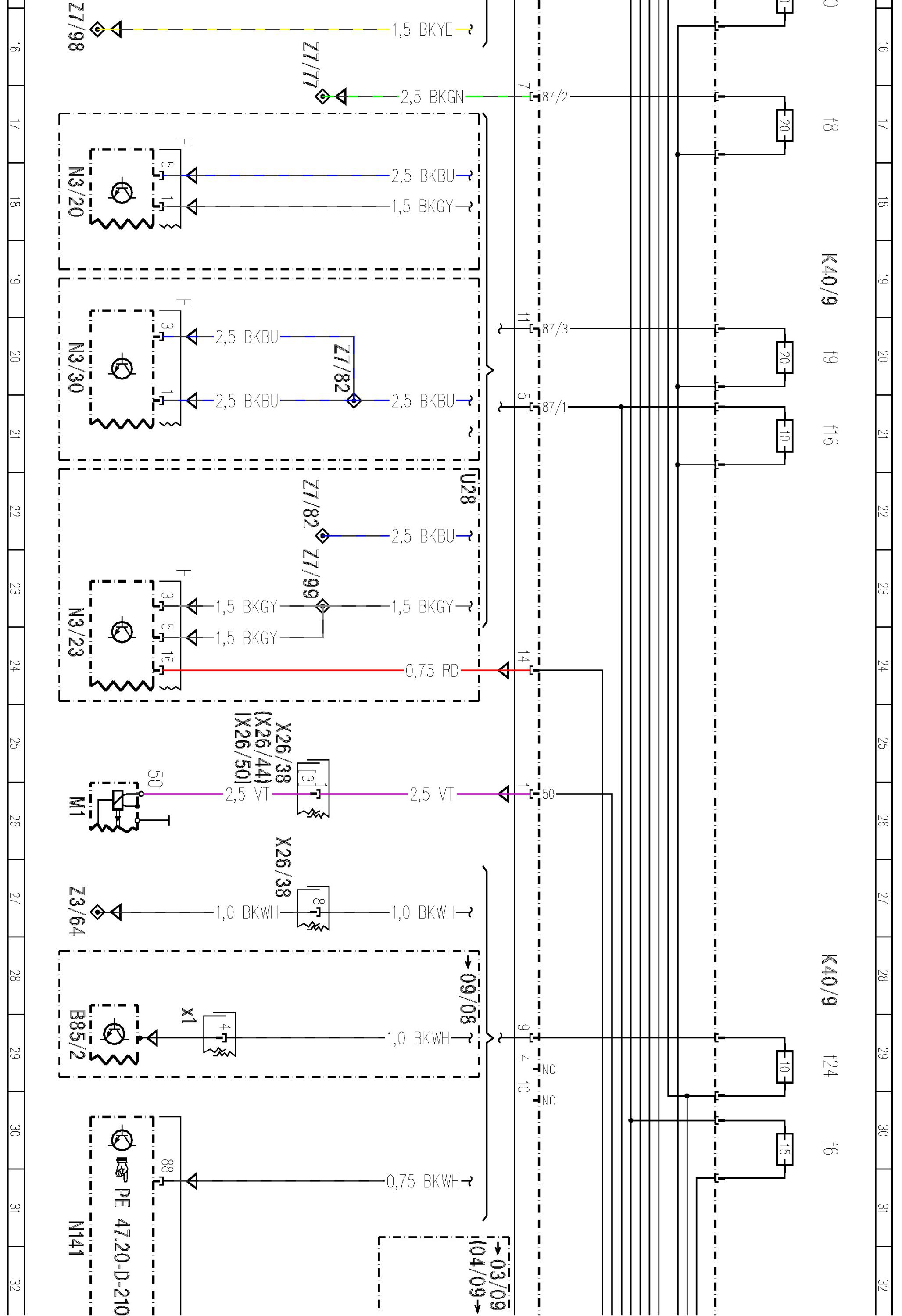

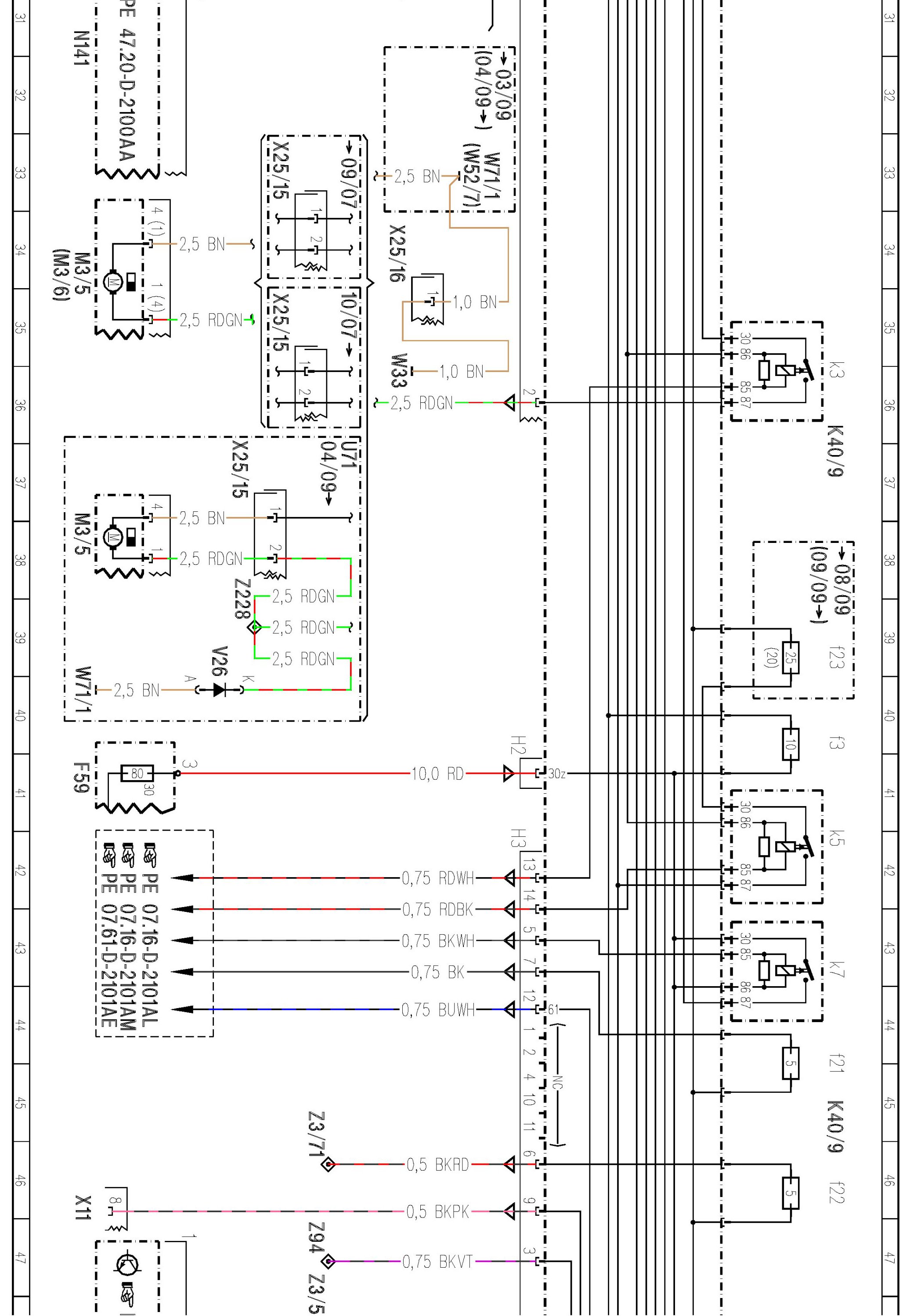

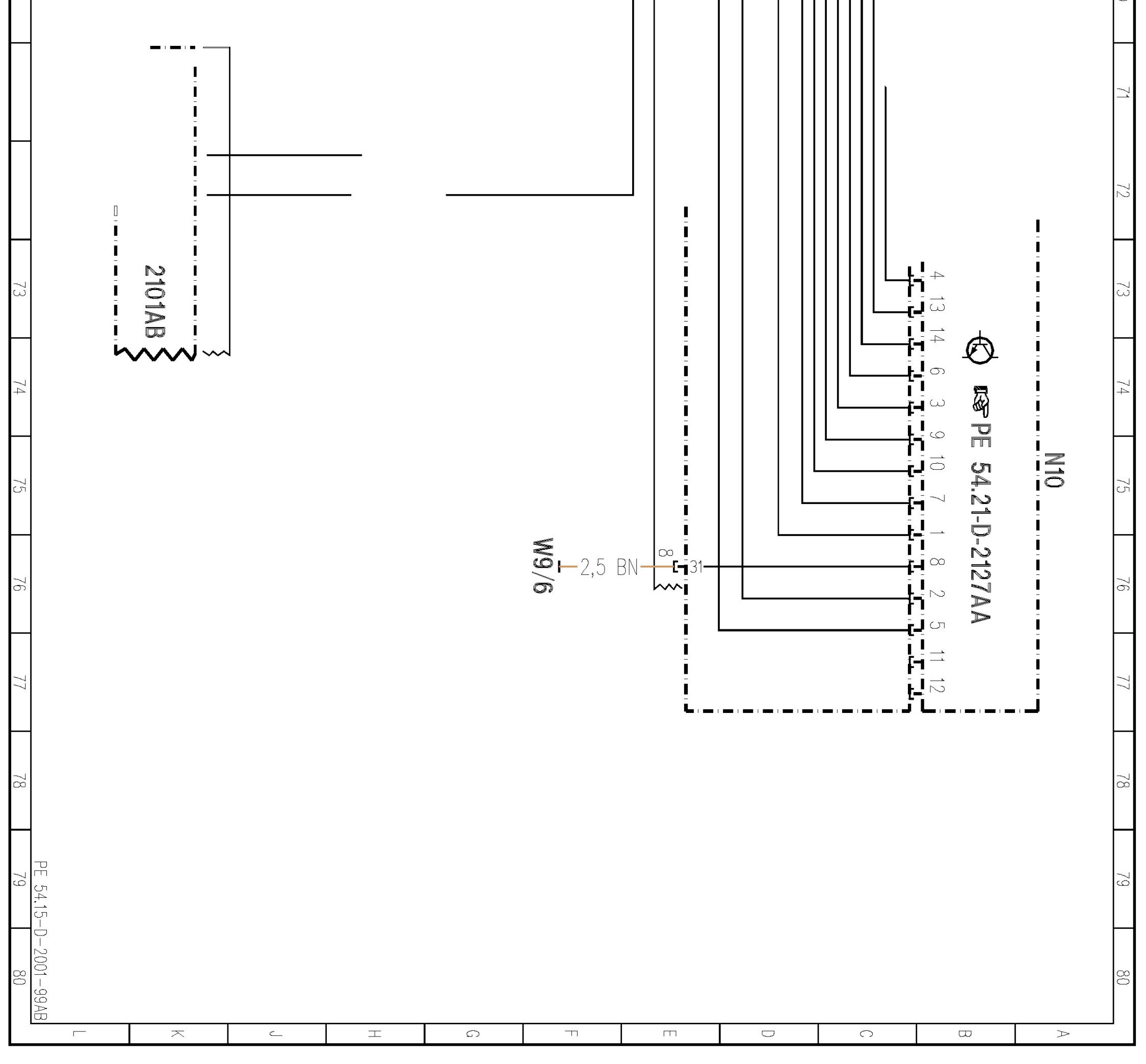

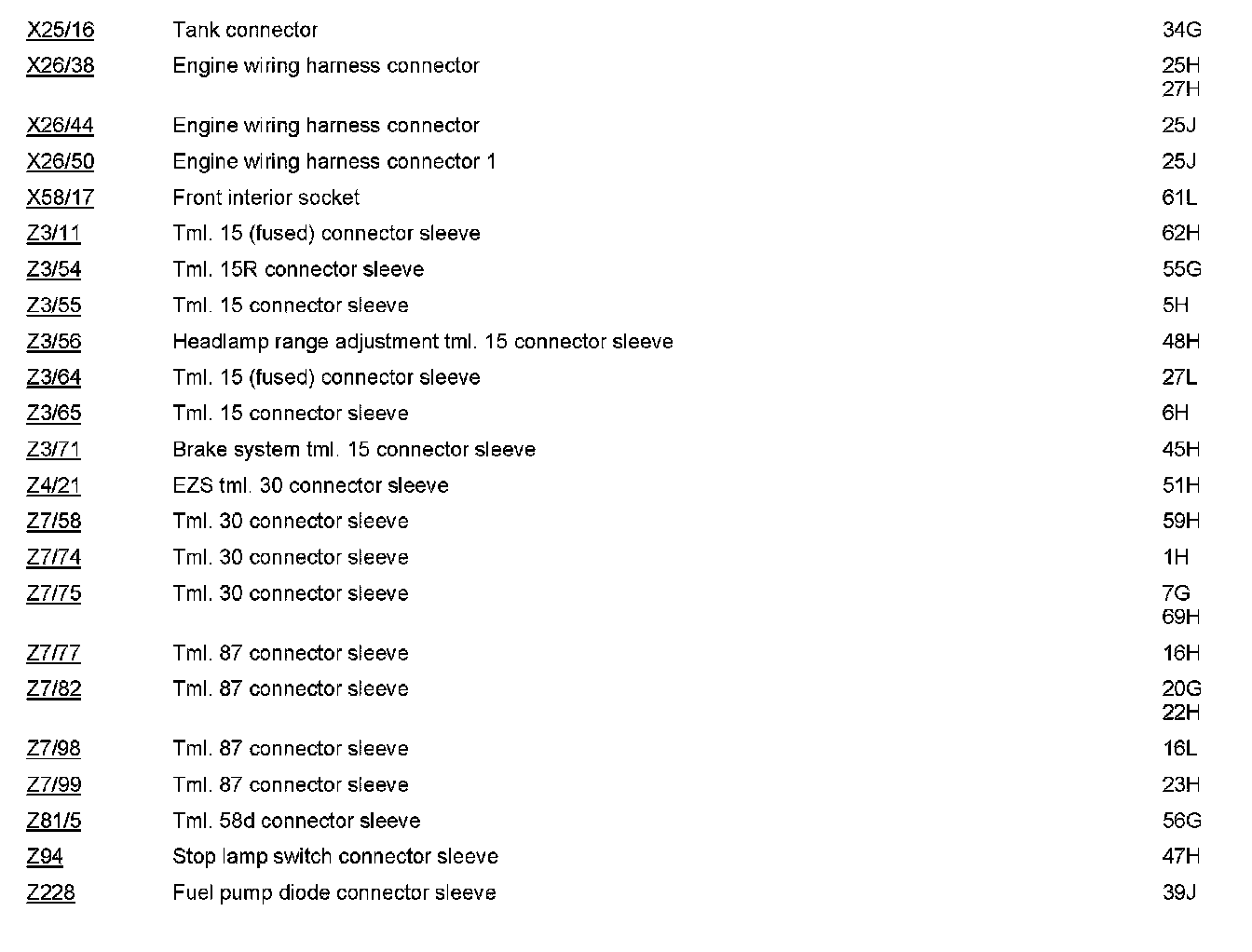

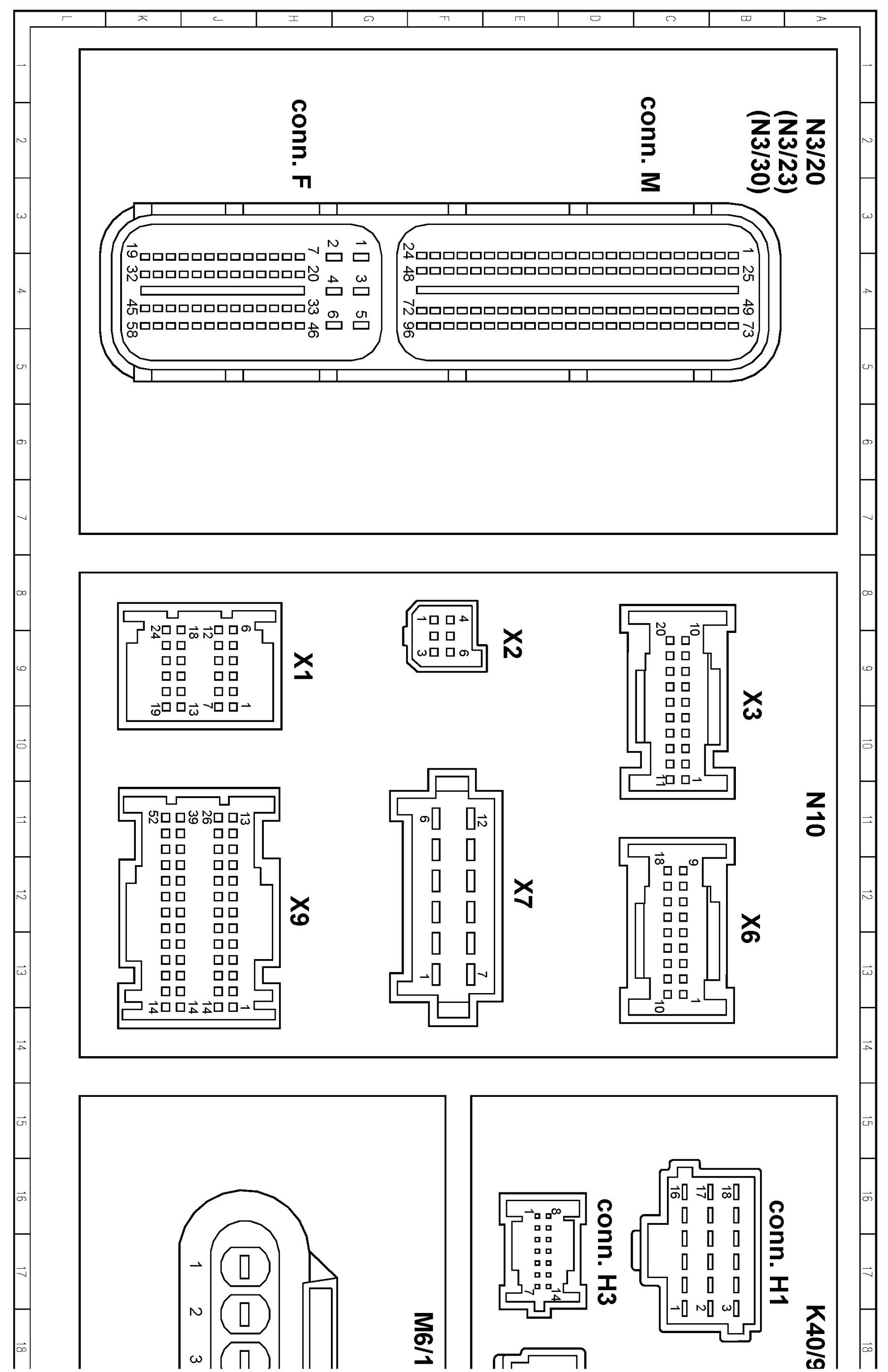

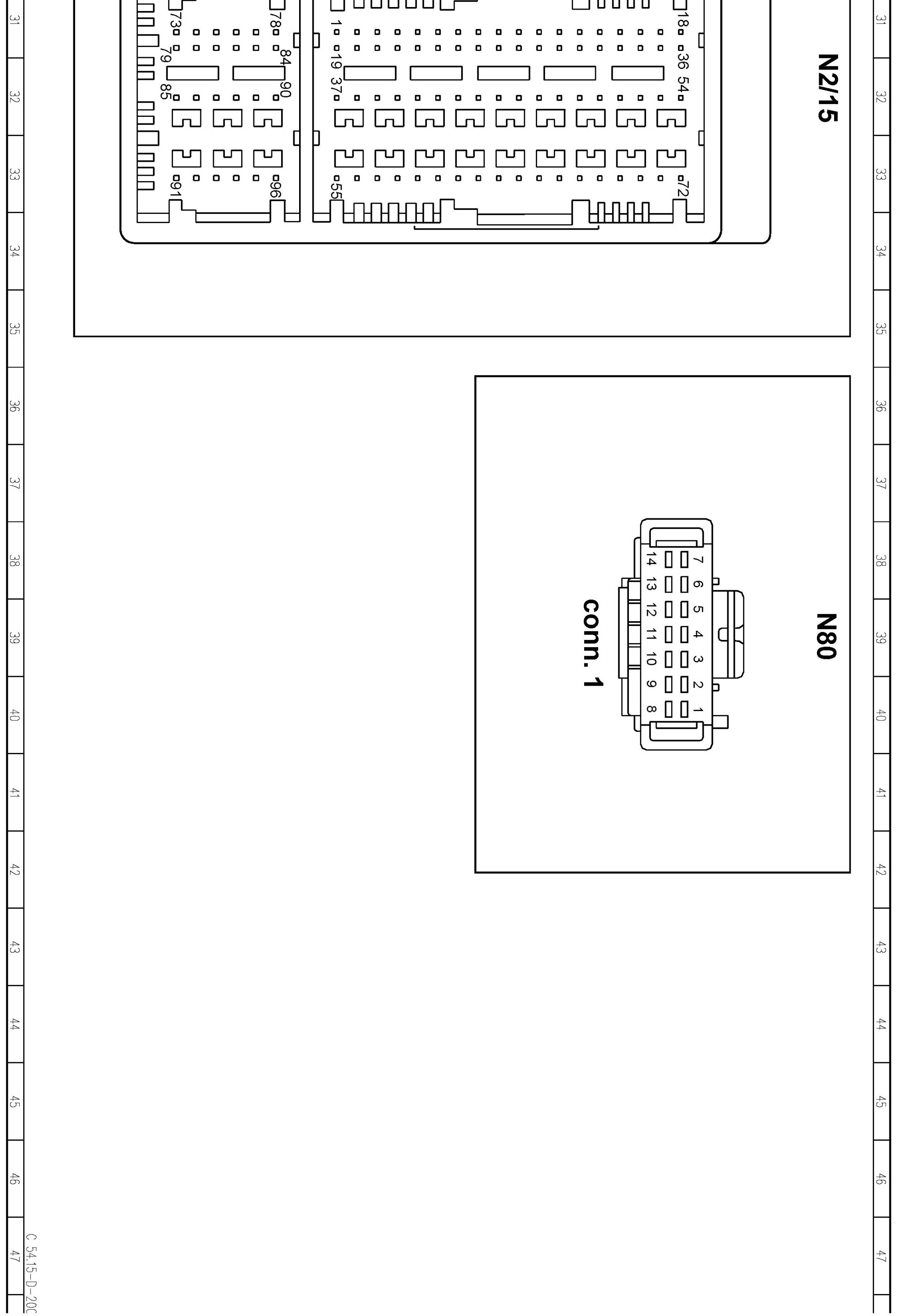

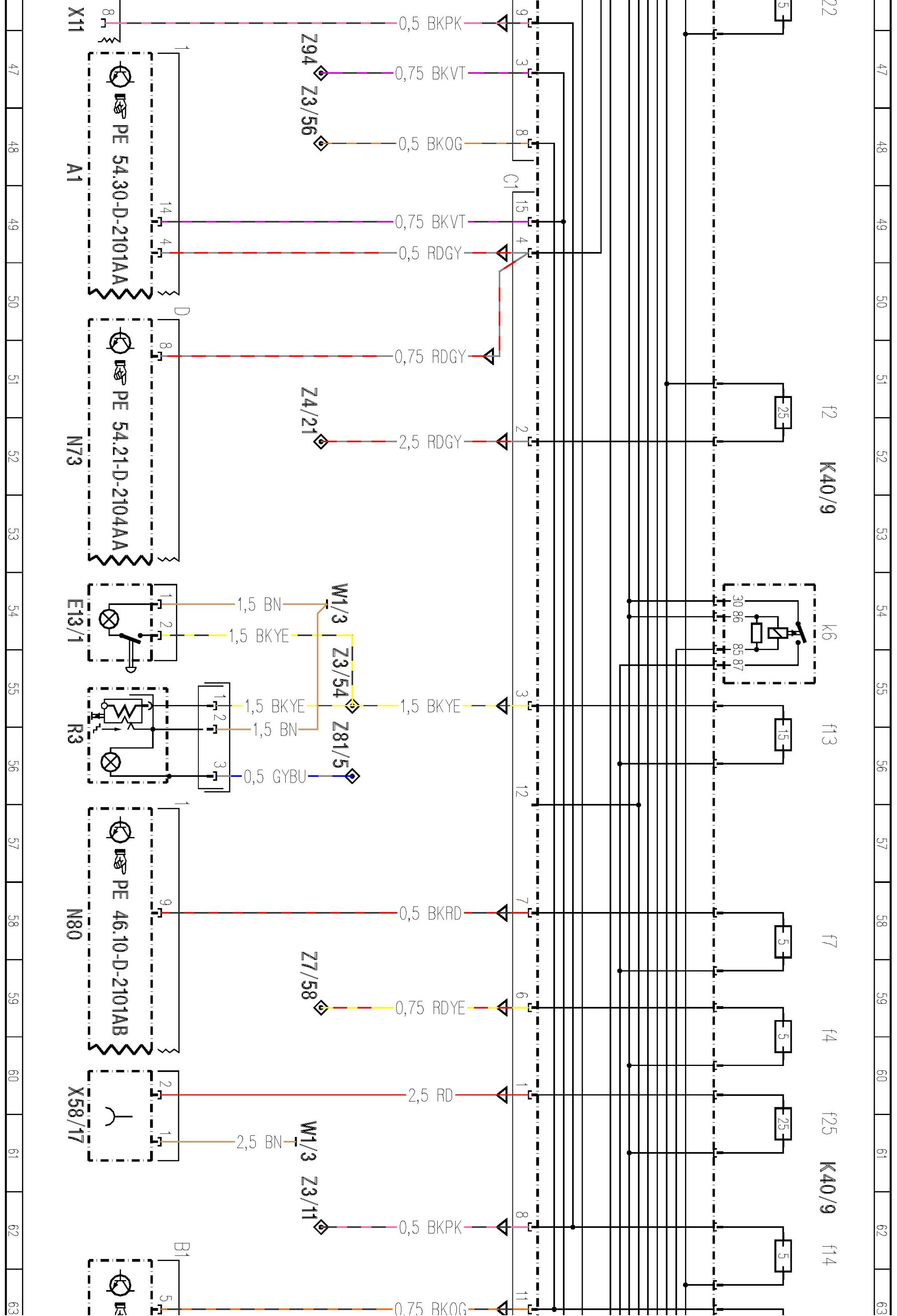

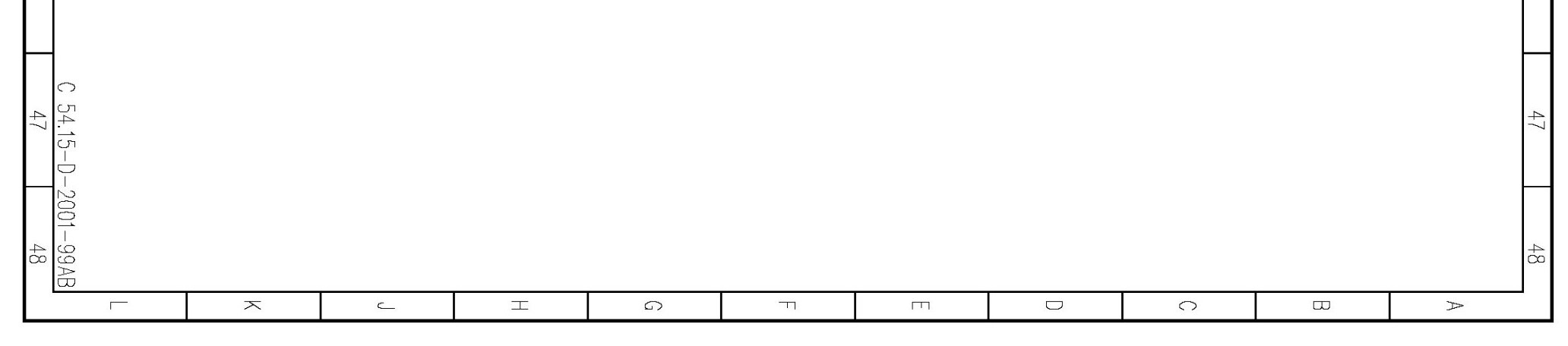

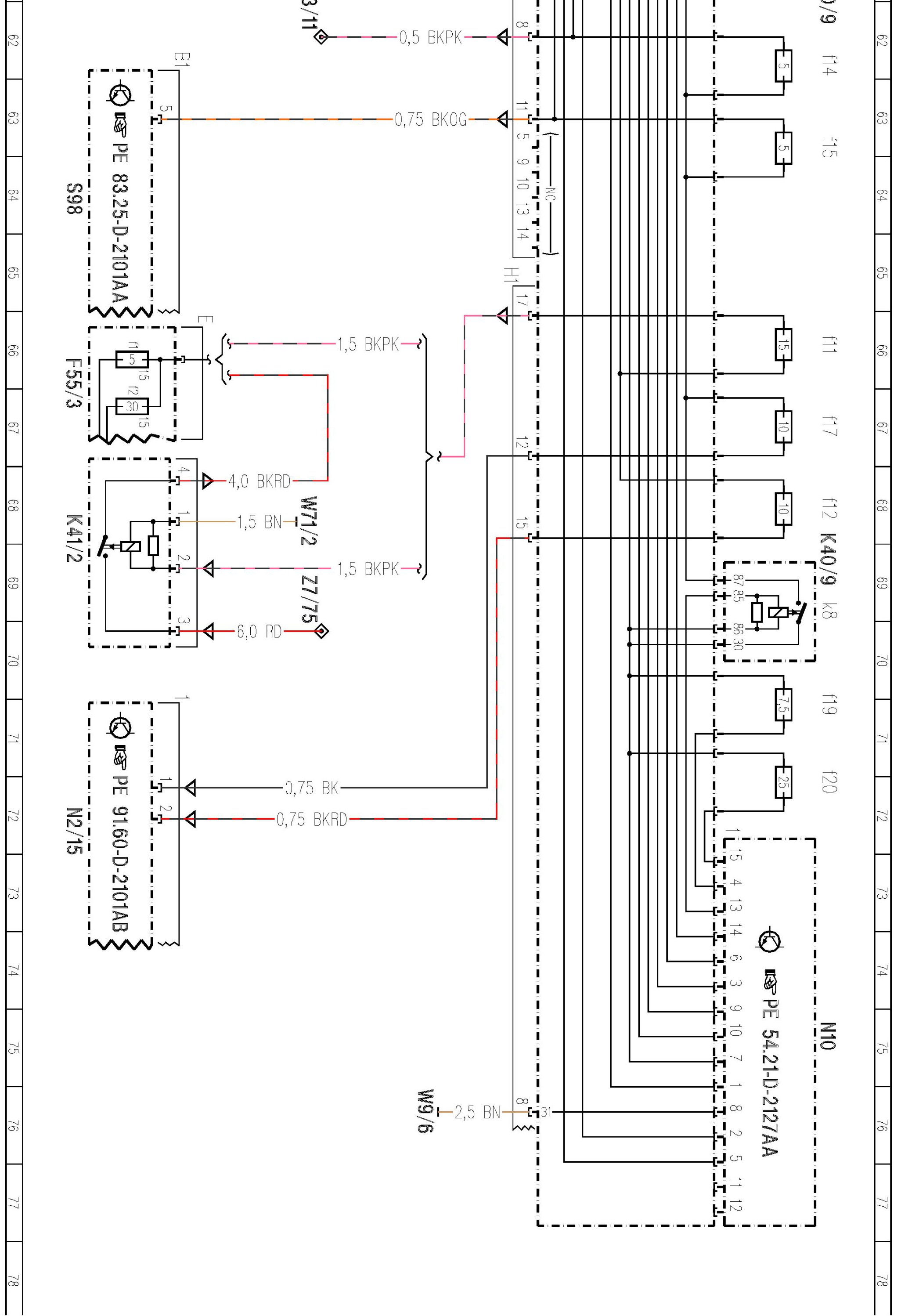

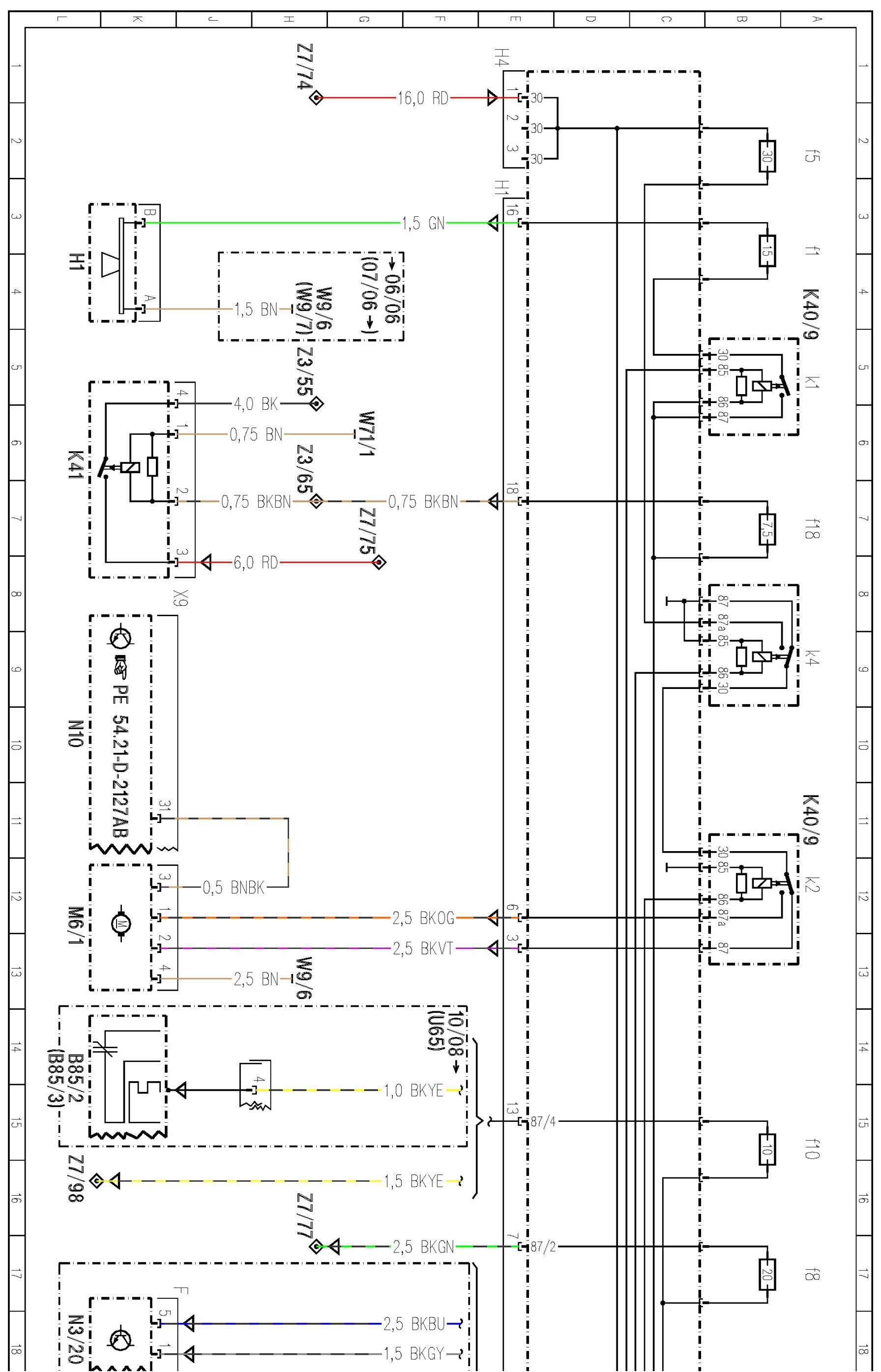

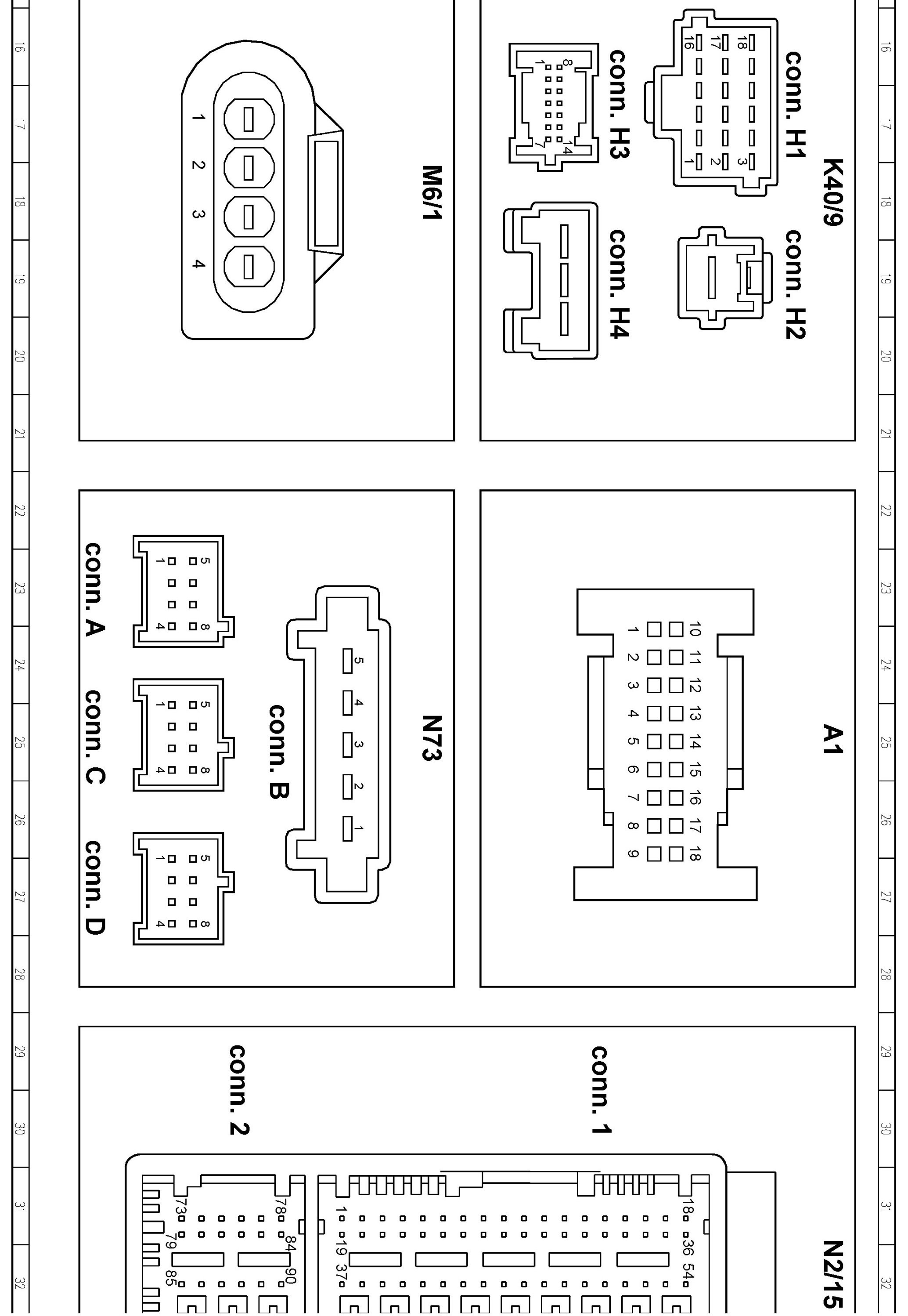

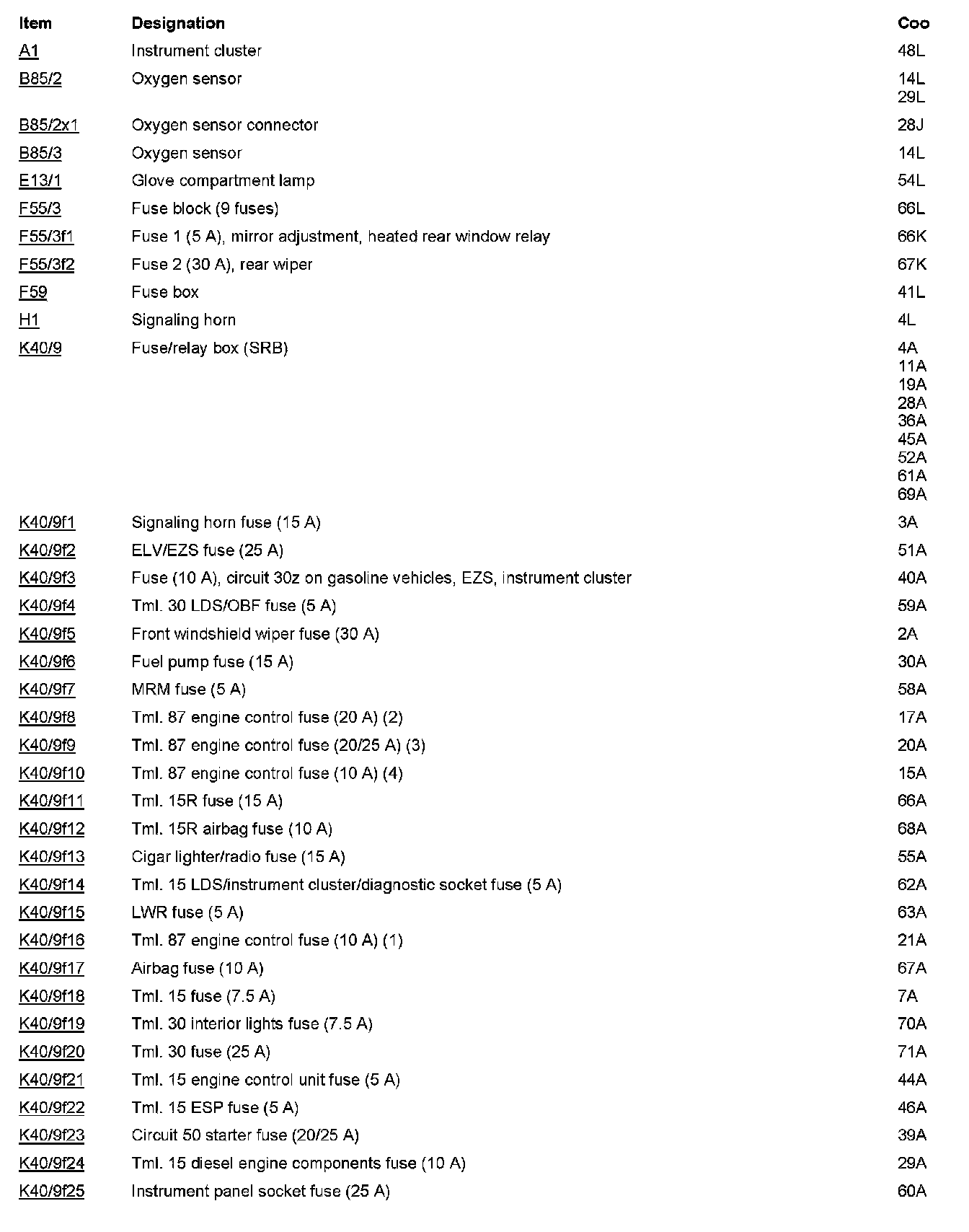

PE54.15-D-2001AB Fuse And Relay Box



PE54.15-D-2001AB Fuse And Relay Box

906 54 Electrical Systems - Equipment and Instruments
Model 906.1 /2 /6 /7
