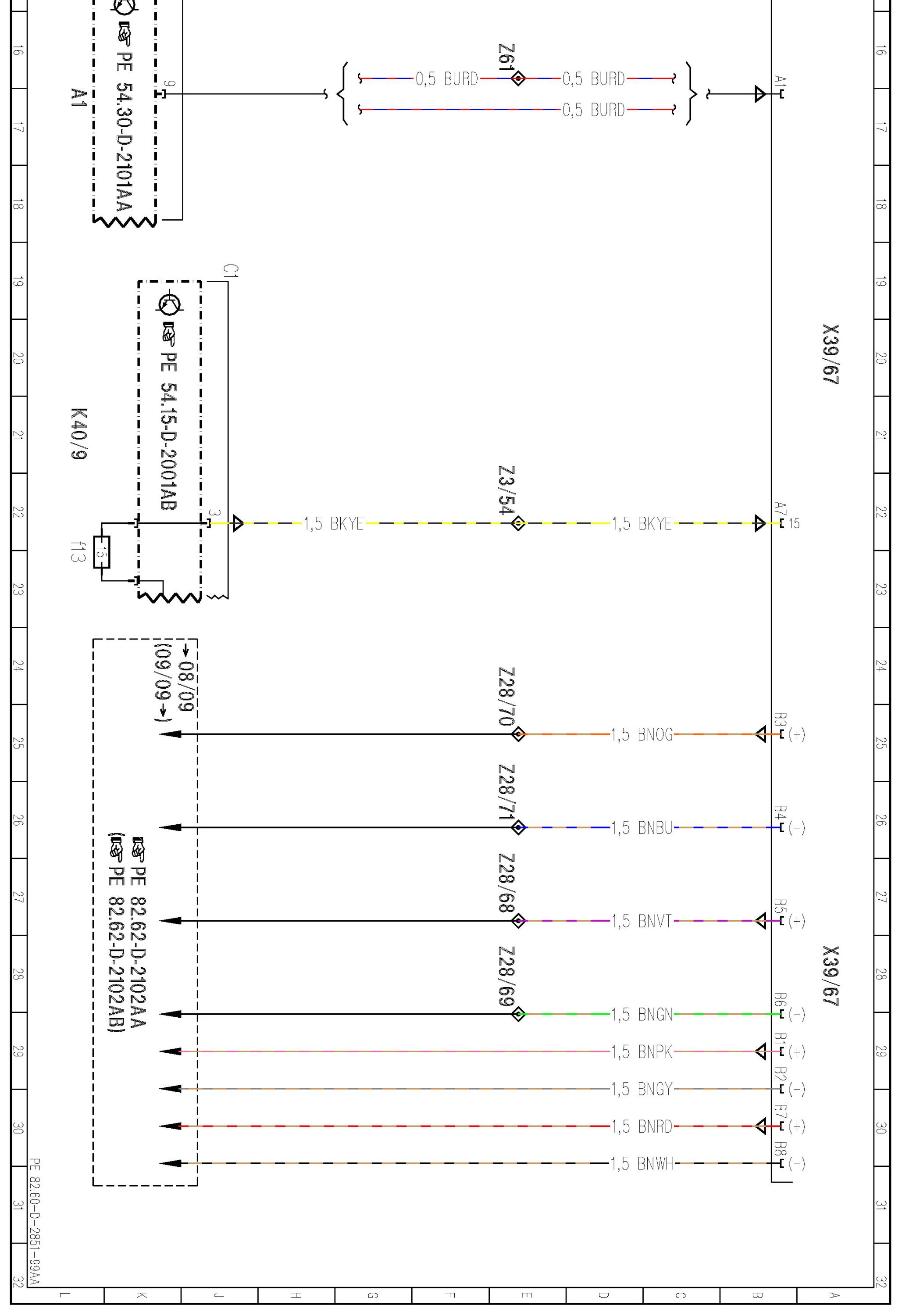

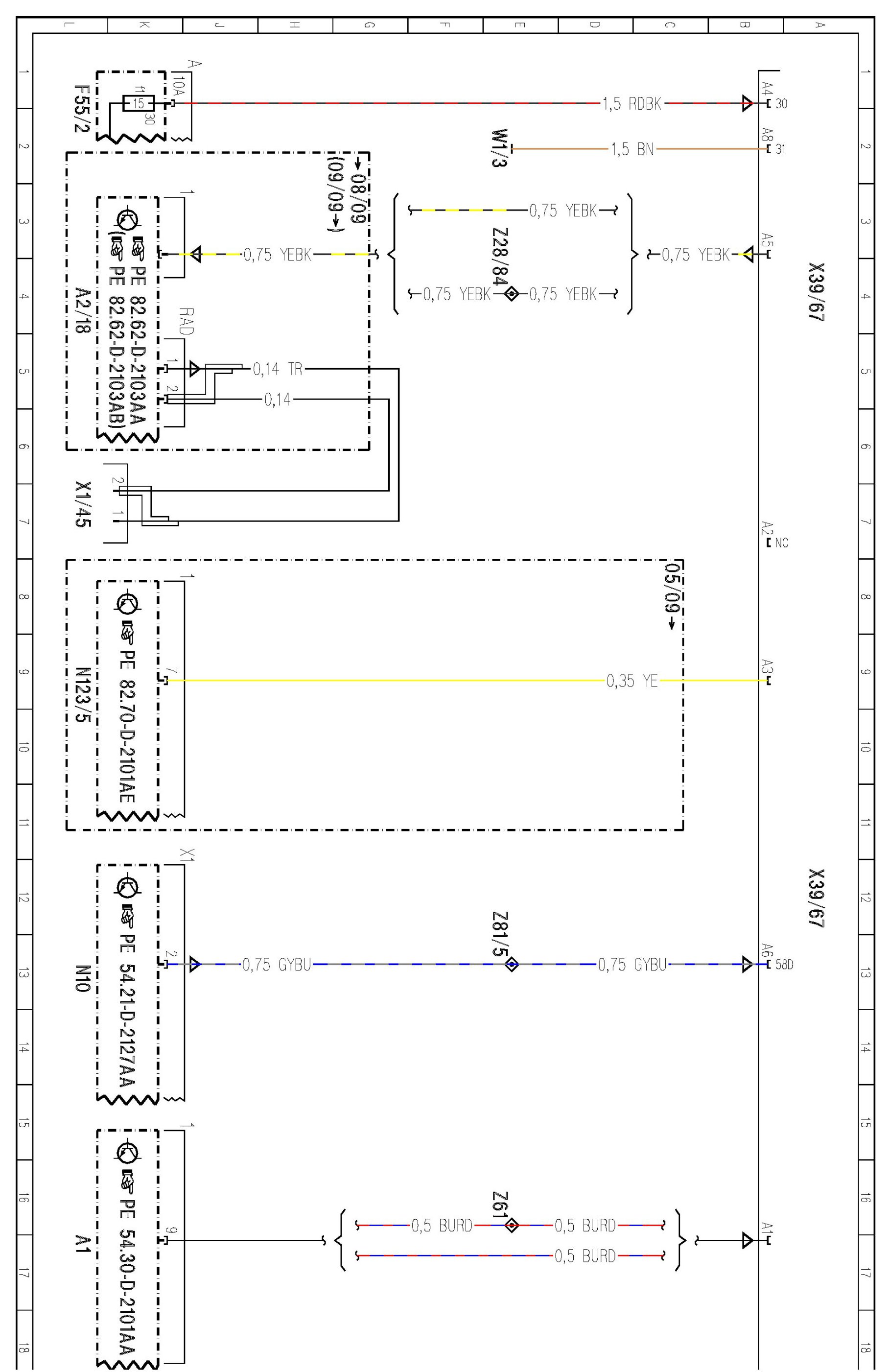

PE82.60-D-2851AA Radio Preinstallation



PE82.60-D-2851AA Radio Preinstallation

906 82 Electrical Systems - Body
Model 906.1 /2 /6 /7
- with CODE (ER0) Radio preinstallation with antenna and 2 speakers
