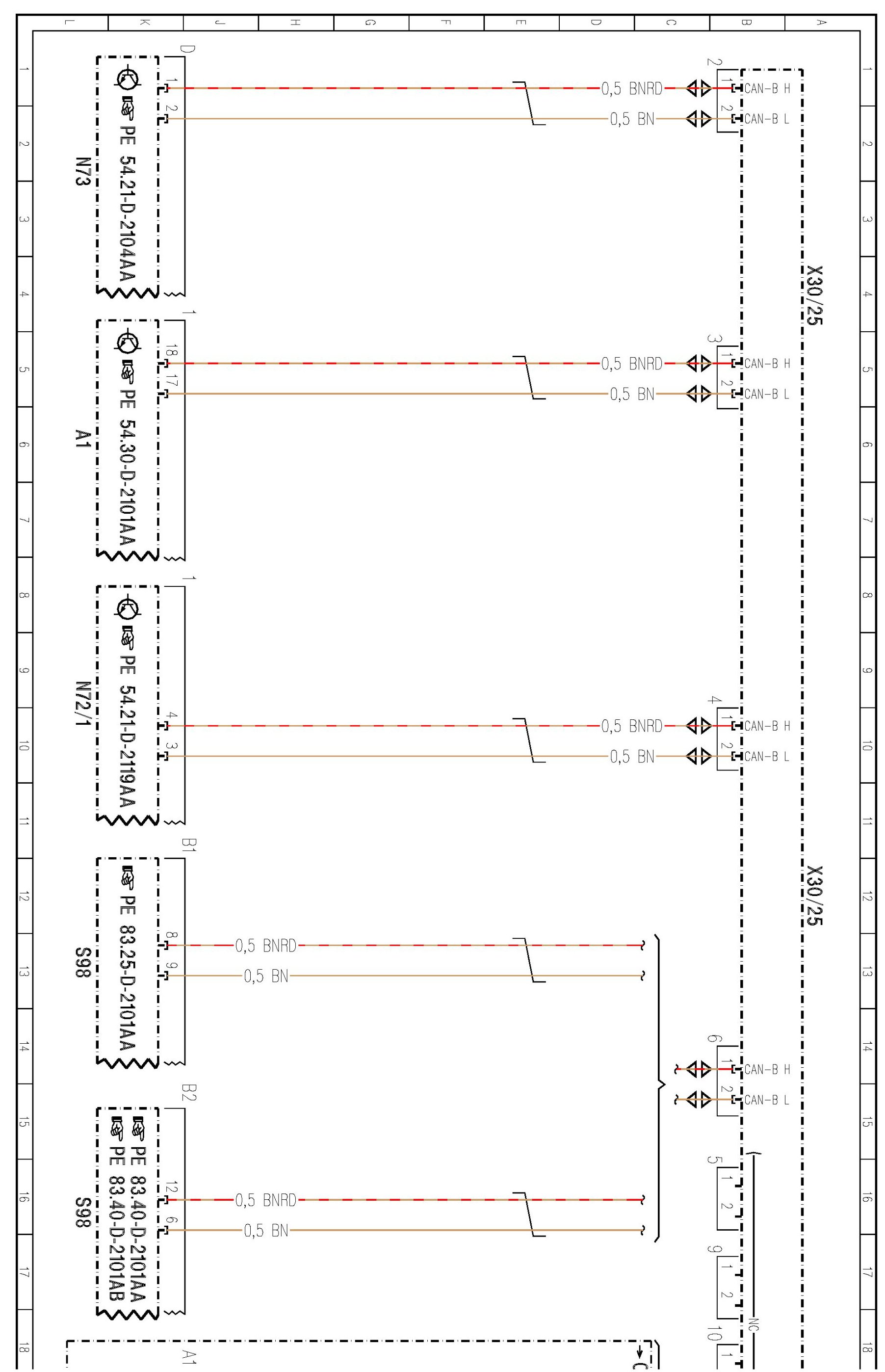

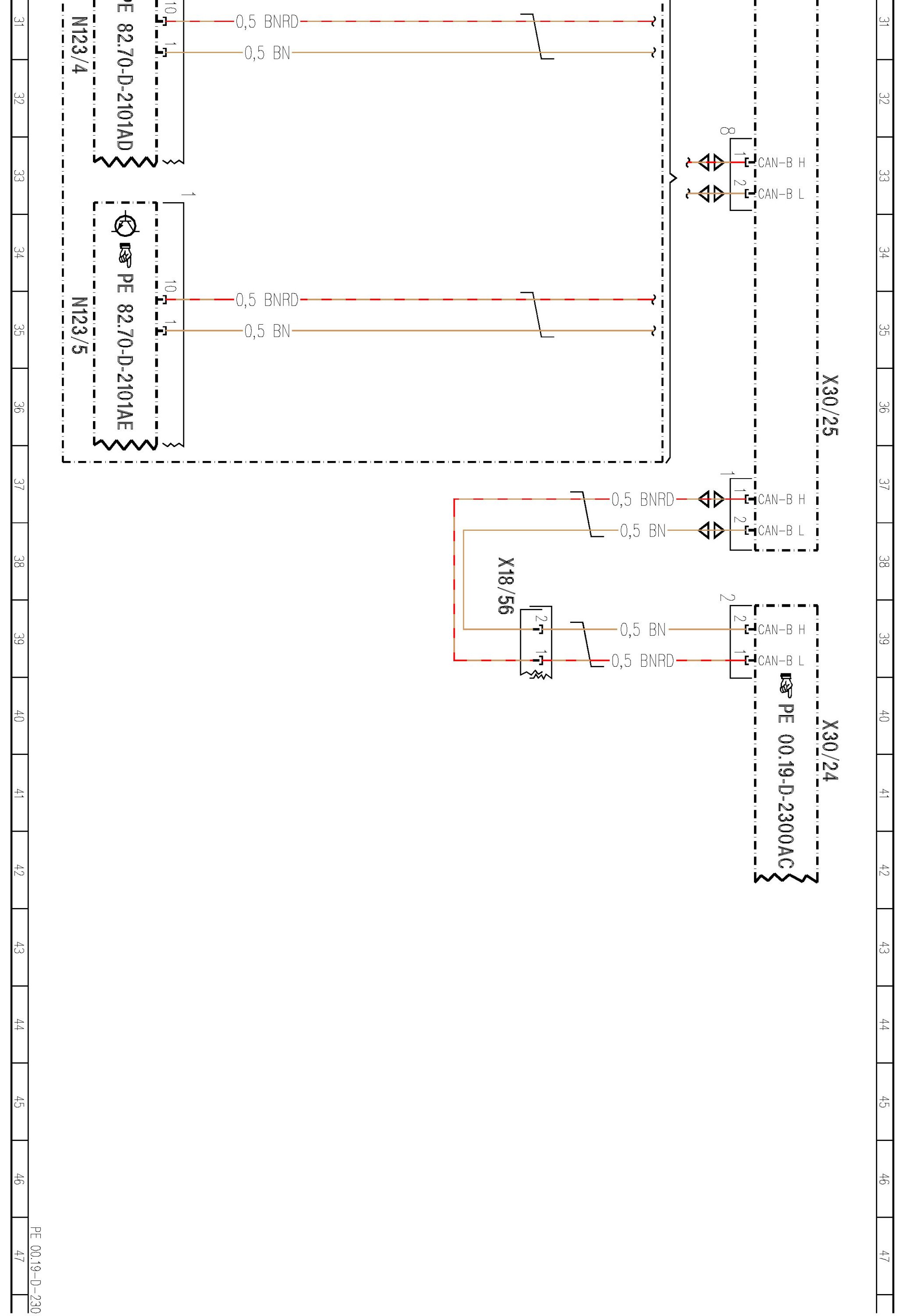

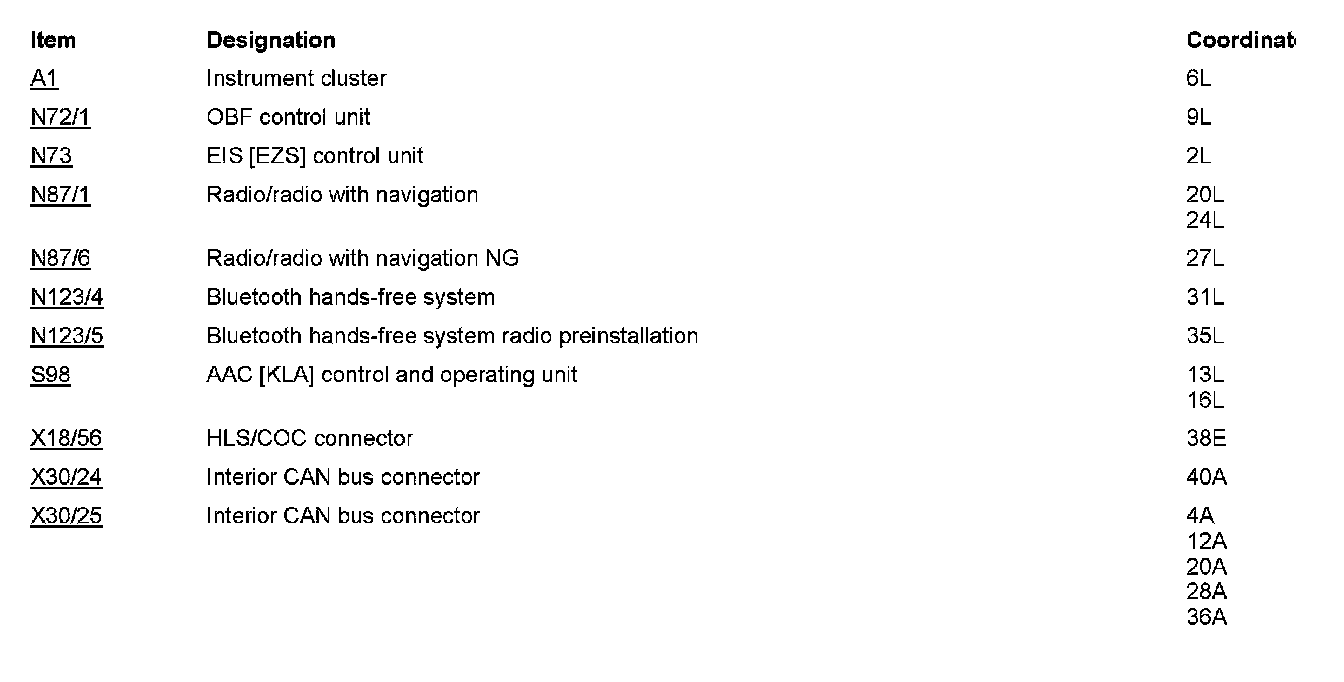

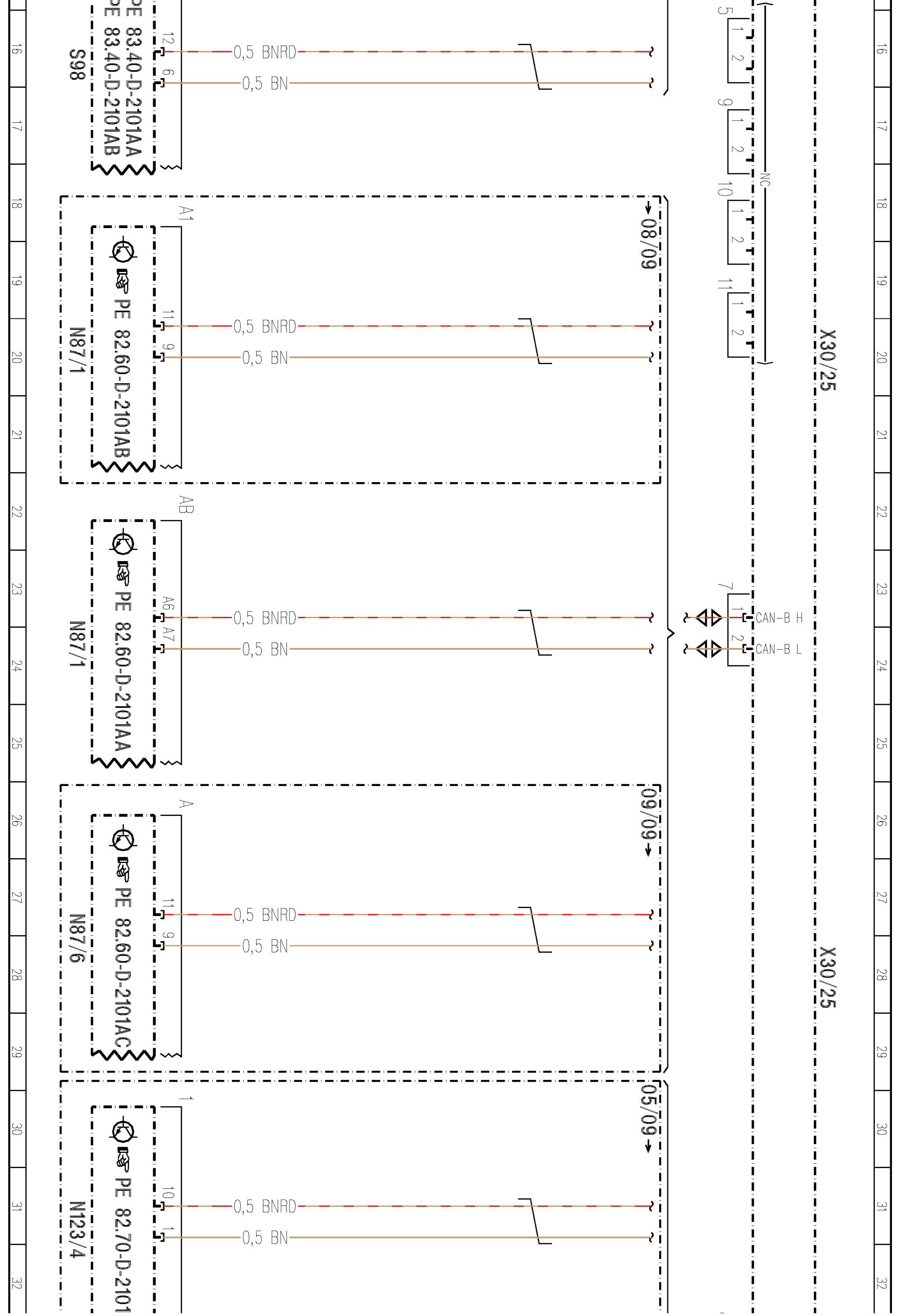

PE00.19-D-2300AD Interior CAN Bus
PE00.19-D-2300AD Interior CAN Bus
PE00.19-D-2300AD Interior CAN Bus
906 00 Multi-function Circuits

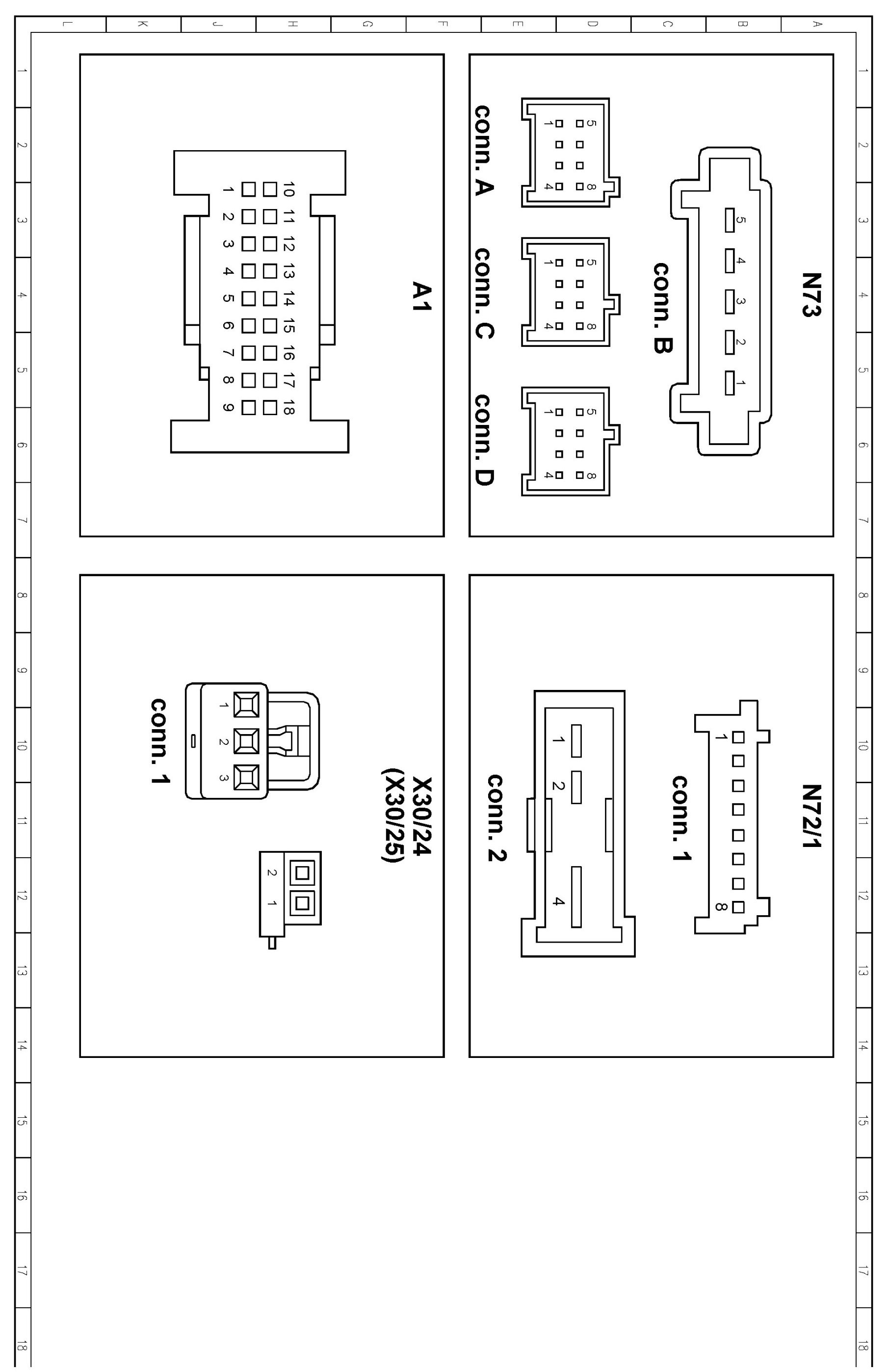

MODEL 906.1 /2 /6 /7 CAN-Stecker X30/25
