Instrument Panel, Gauges and Warning Indicators

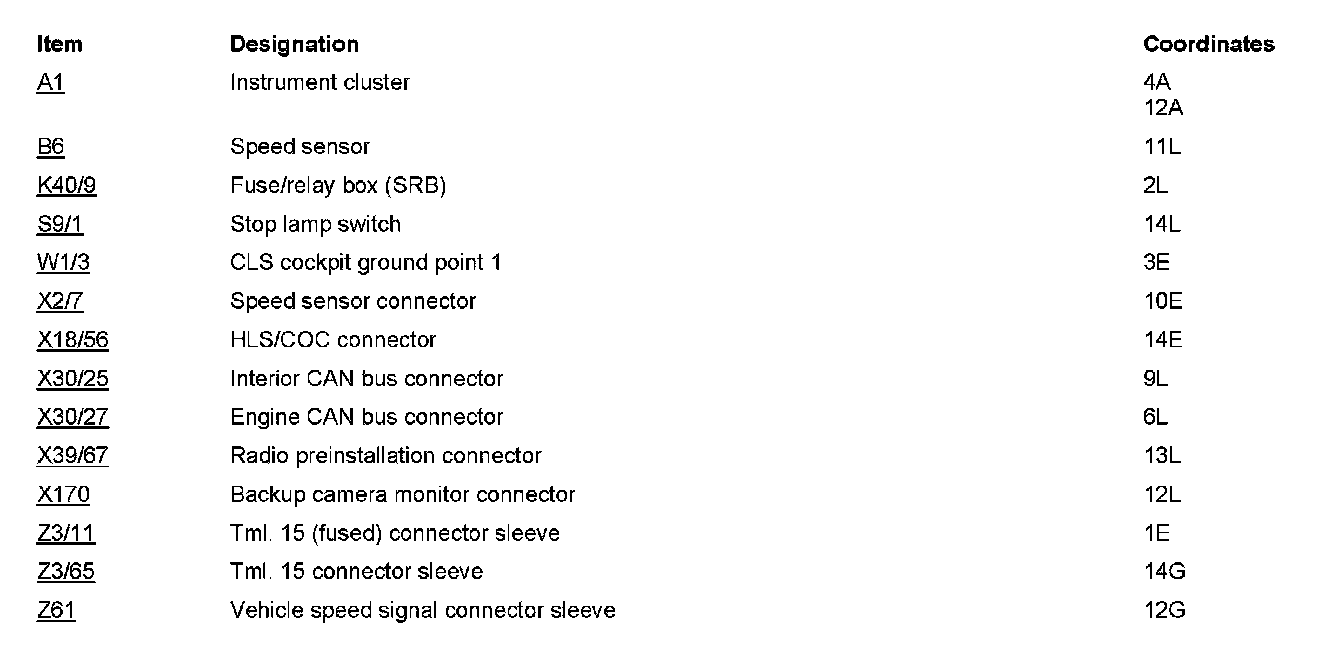

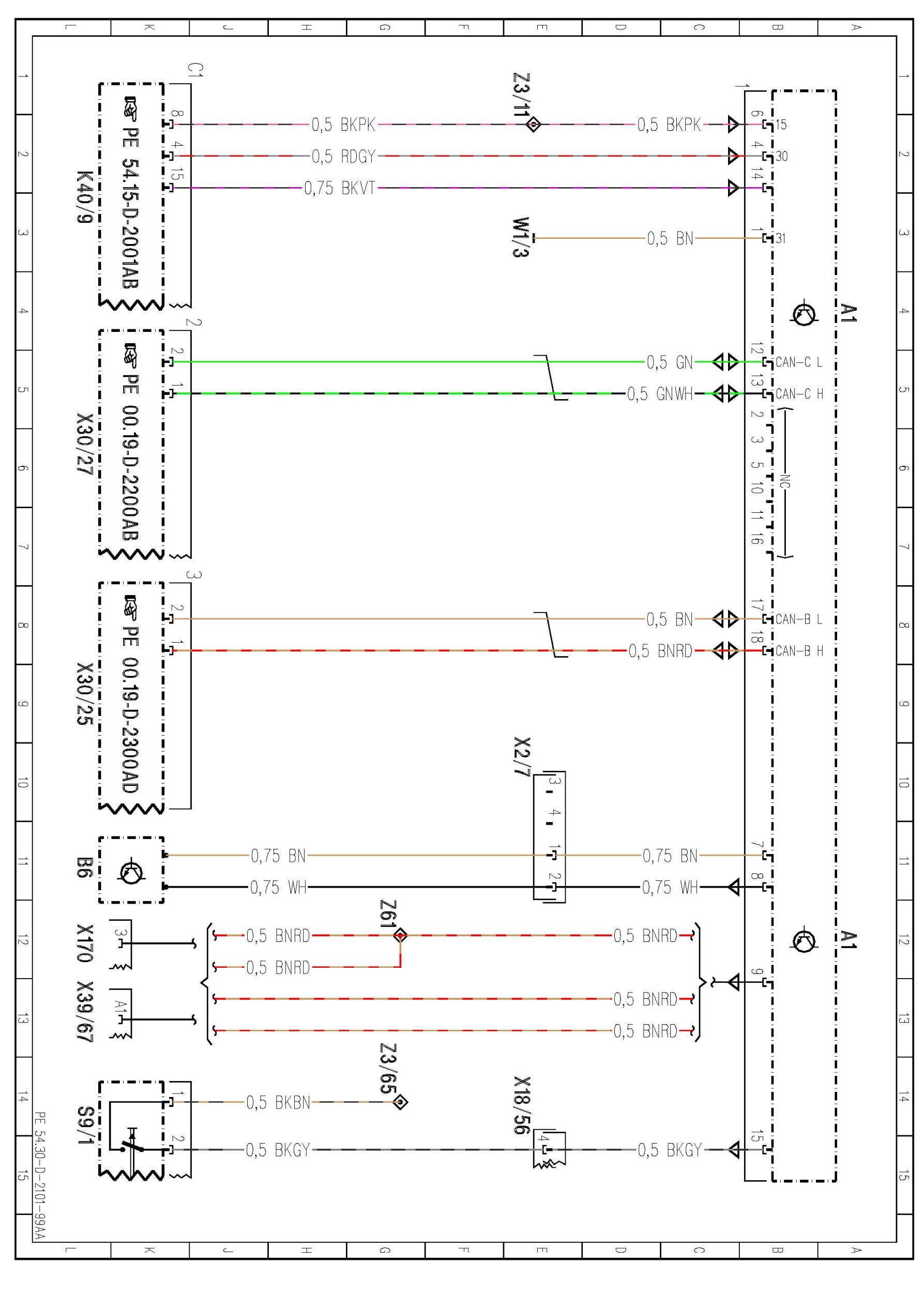

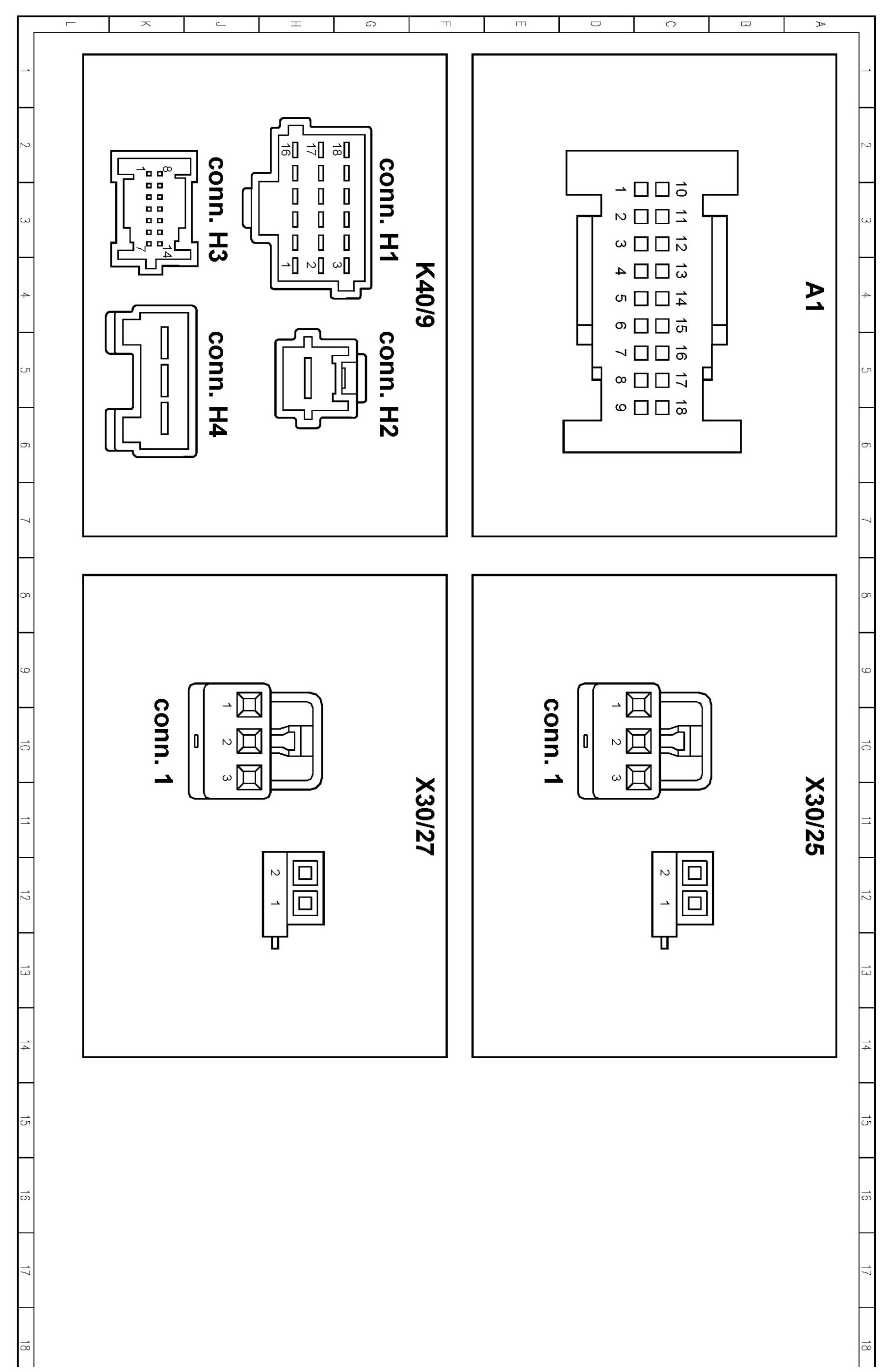

PE54.30-D-2101AA Instrument Cluster (IC) Control Unit

906 54 Electrical Systems - Equipment and Instruments
Model 906.1 /2 /6 /7
