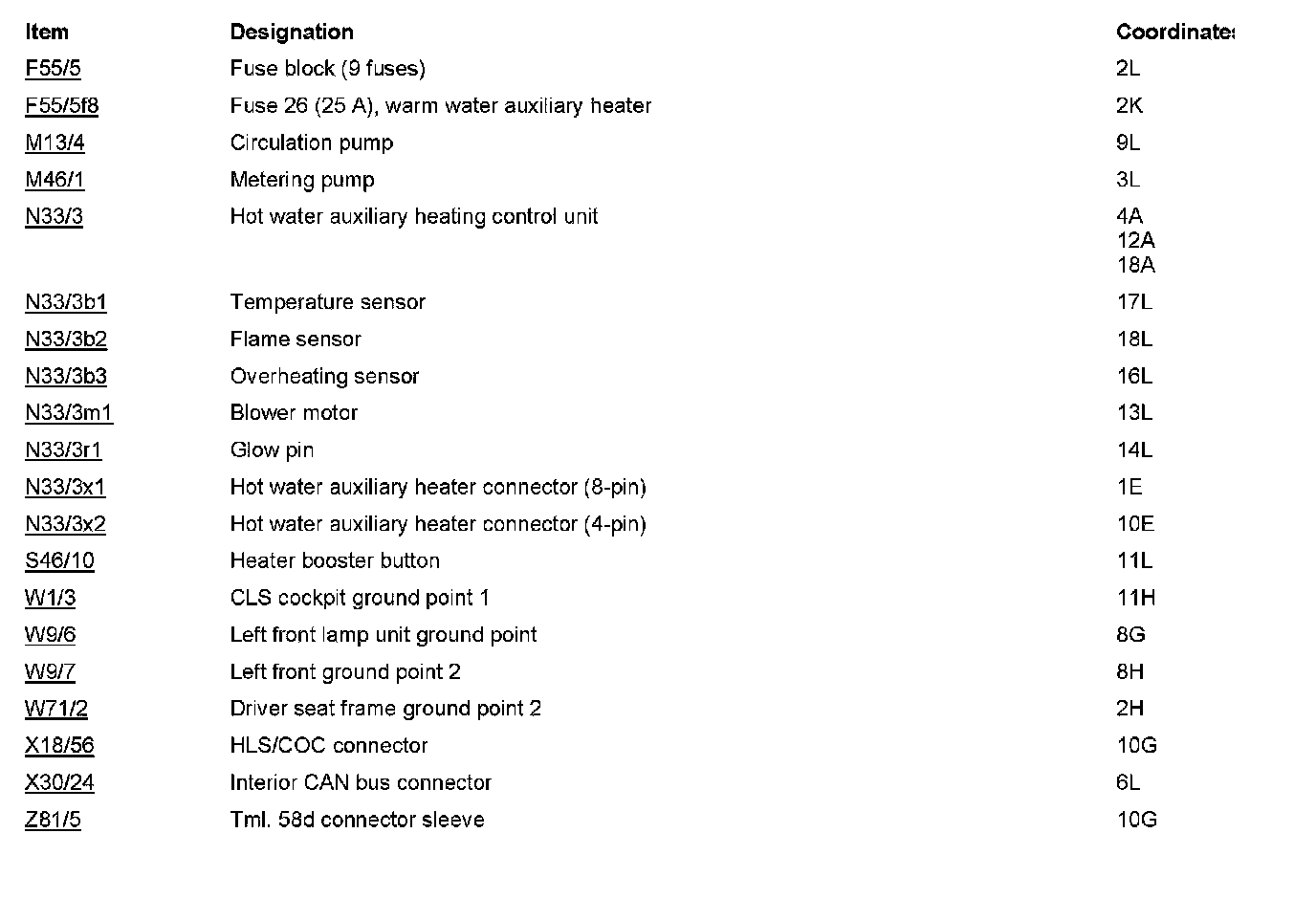

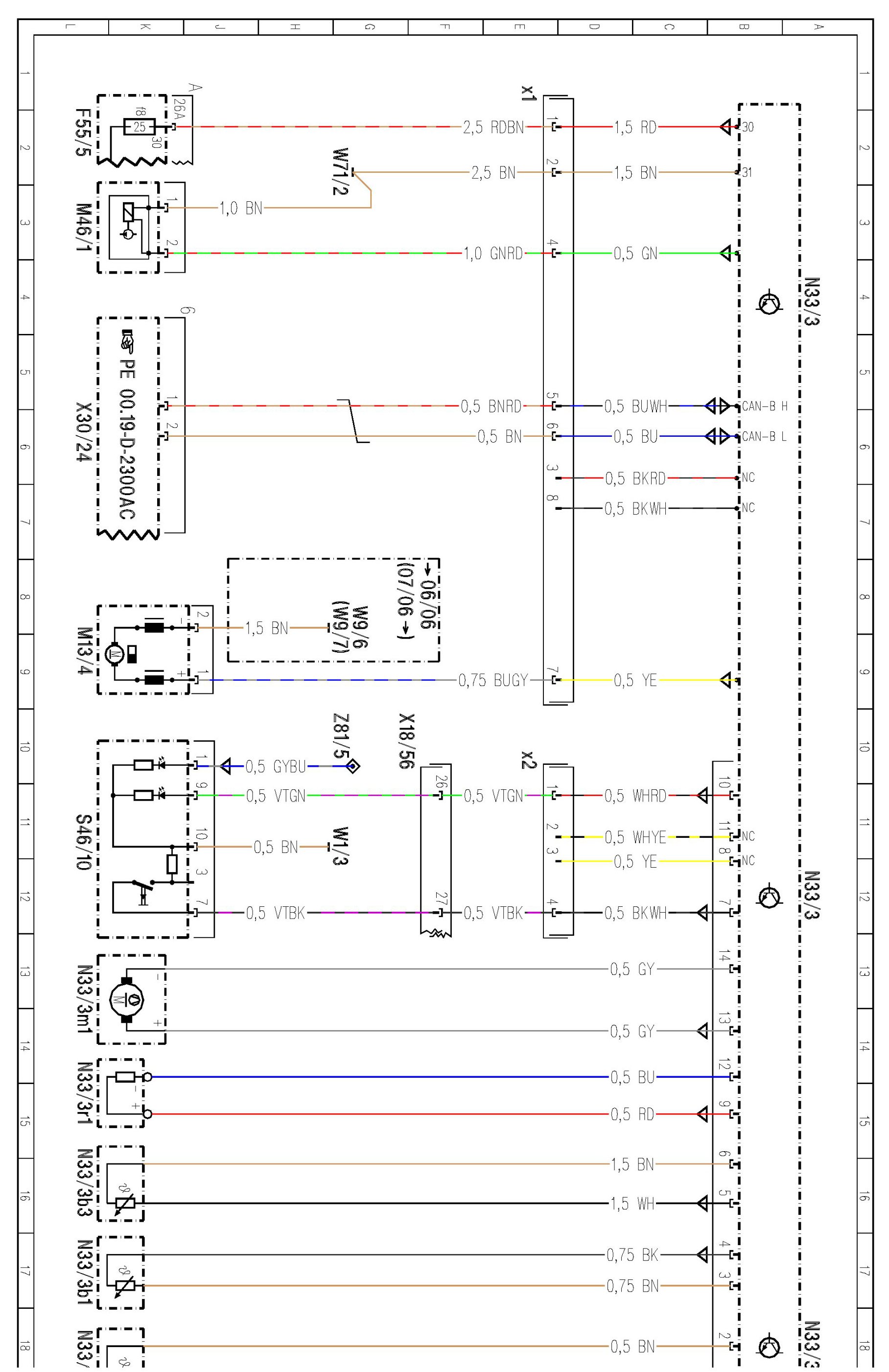

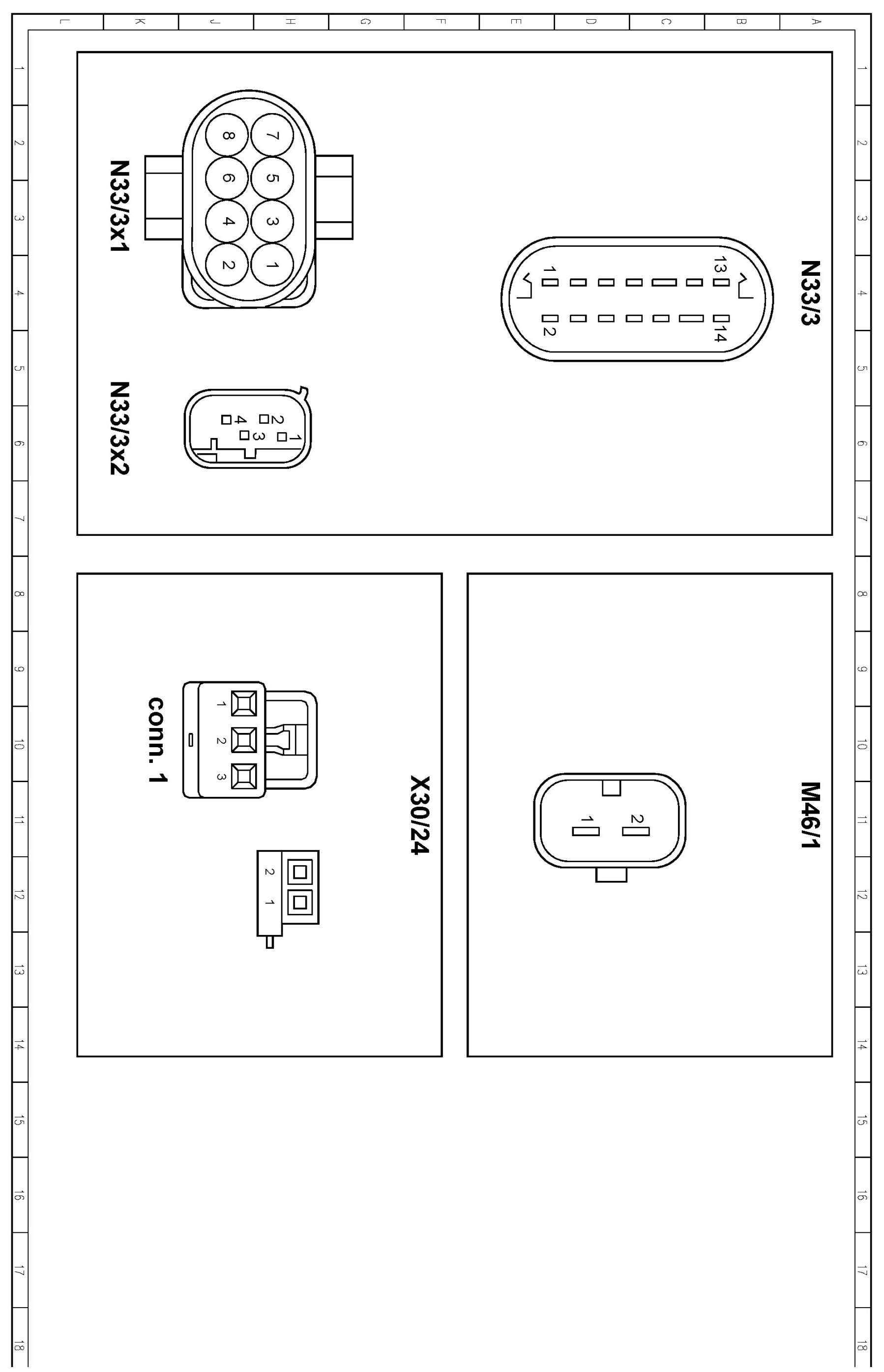

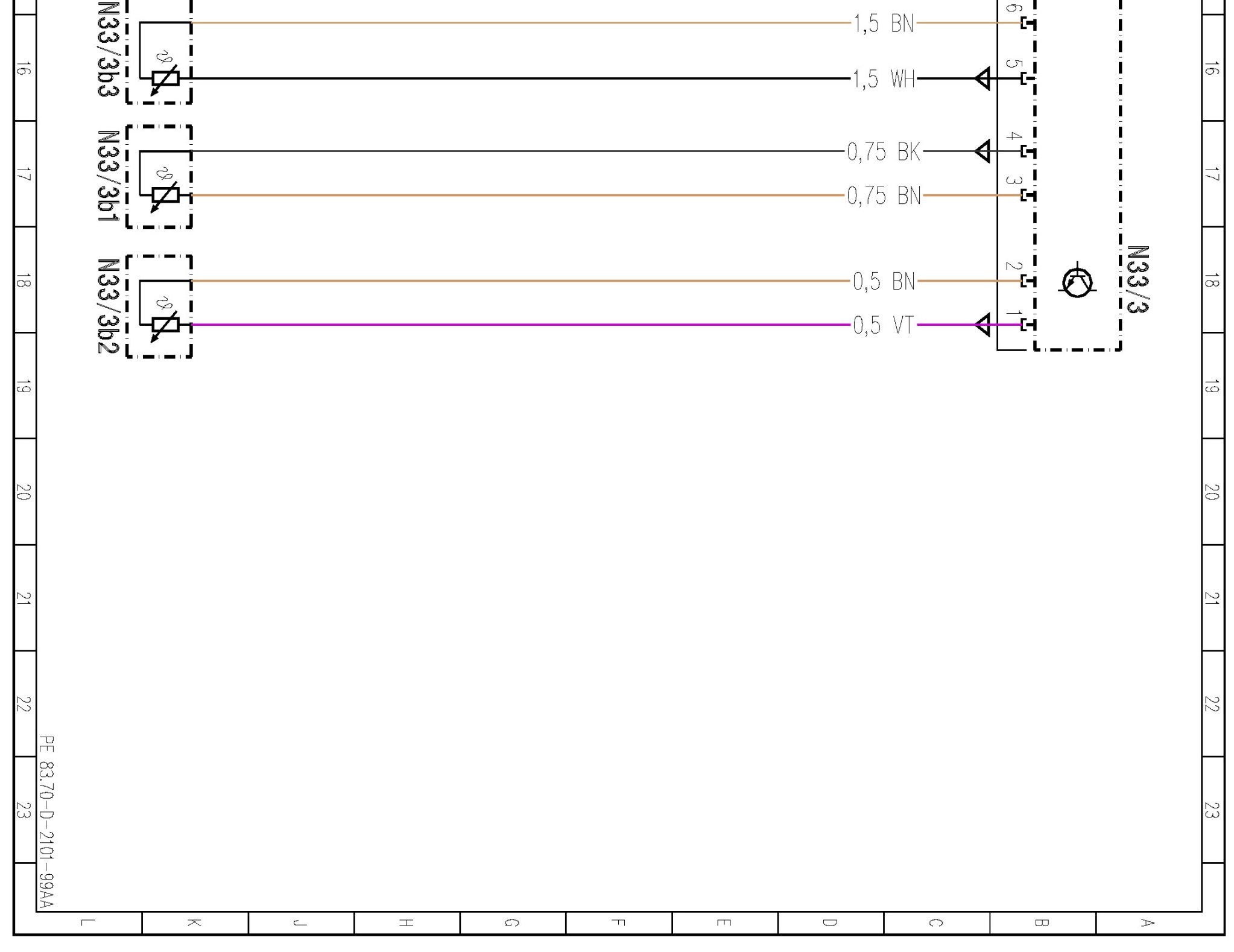

PE83.70-D-2101AA Stationary Heater (STH) Control Unit



PE83.70-D-2101AA Stationary Heater (STH) Control Unit

906 83 Heating and Air Conditioning
Model 906.1 /2 /6 /7
- with CODE (HZ9) Heater booster, diesel
