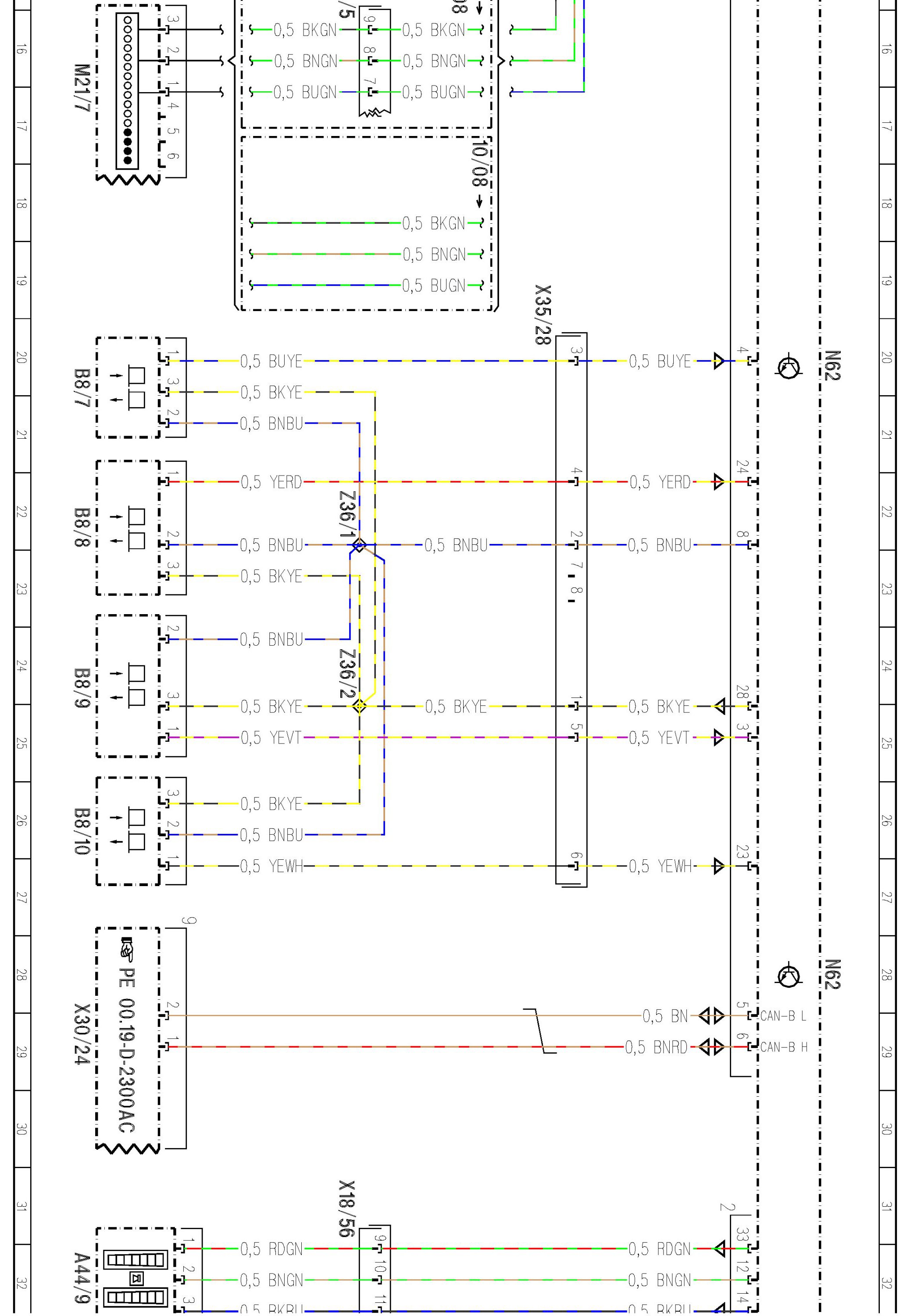

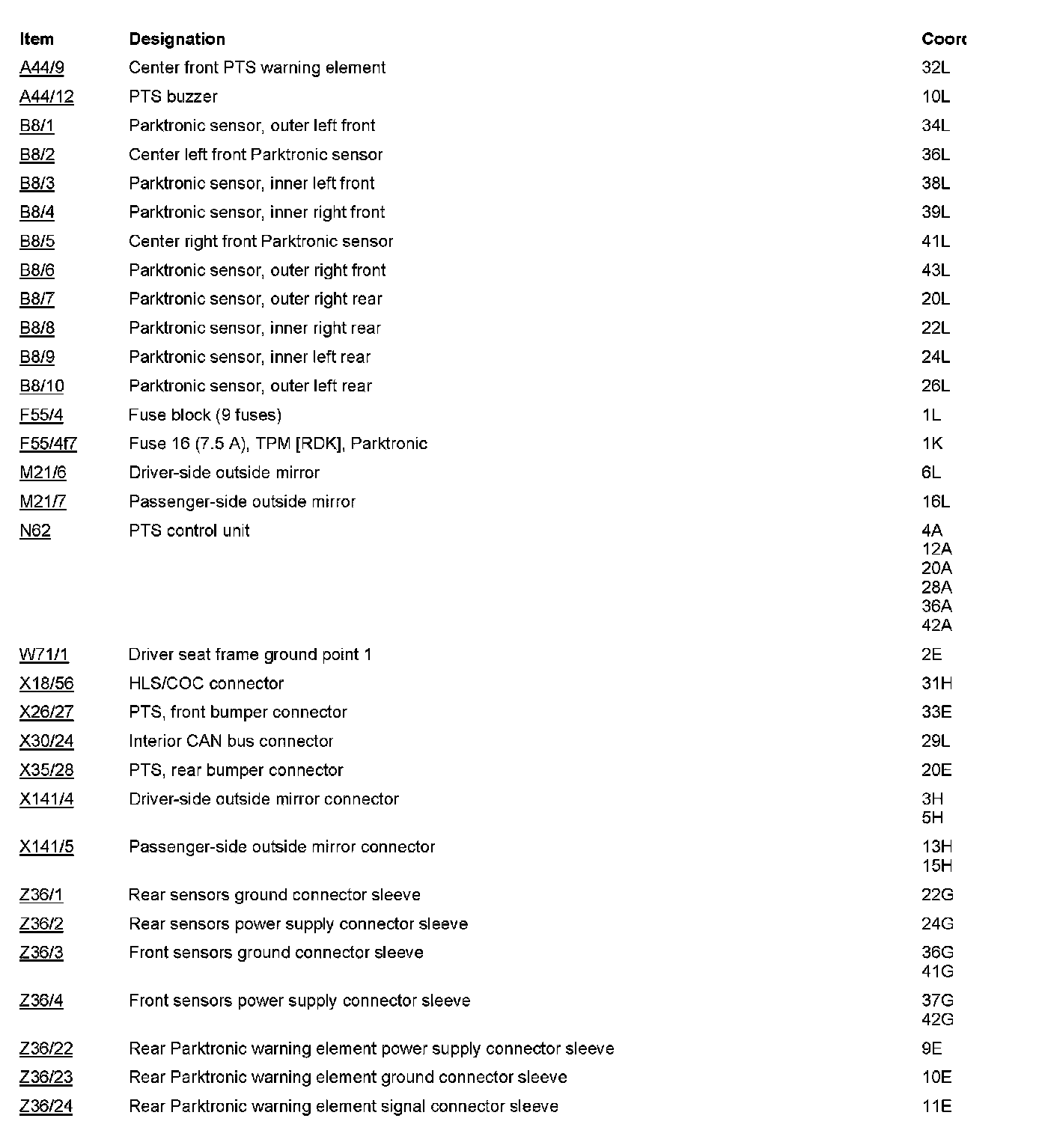

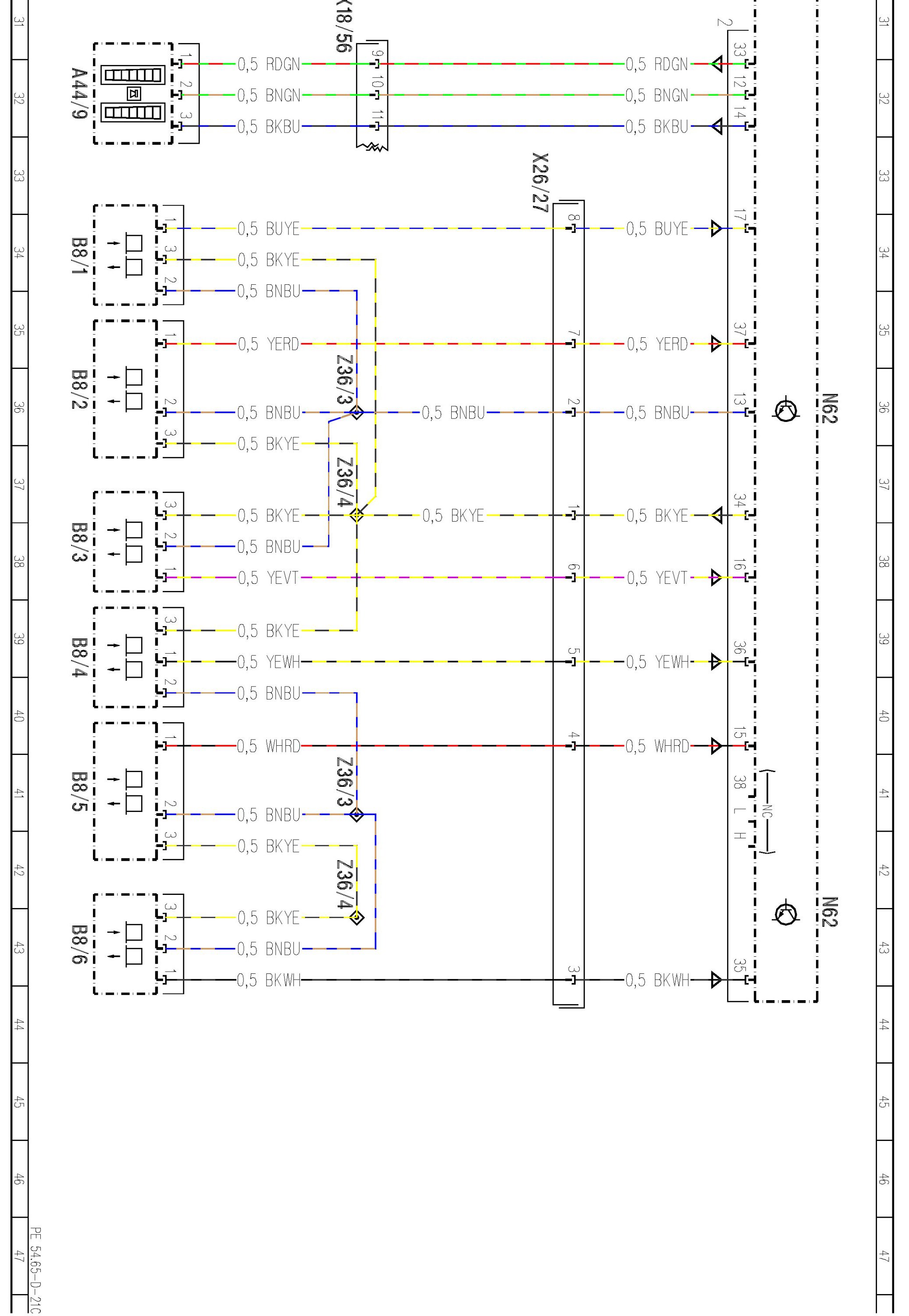

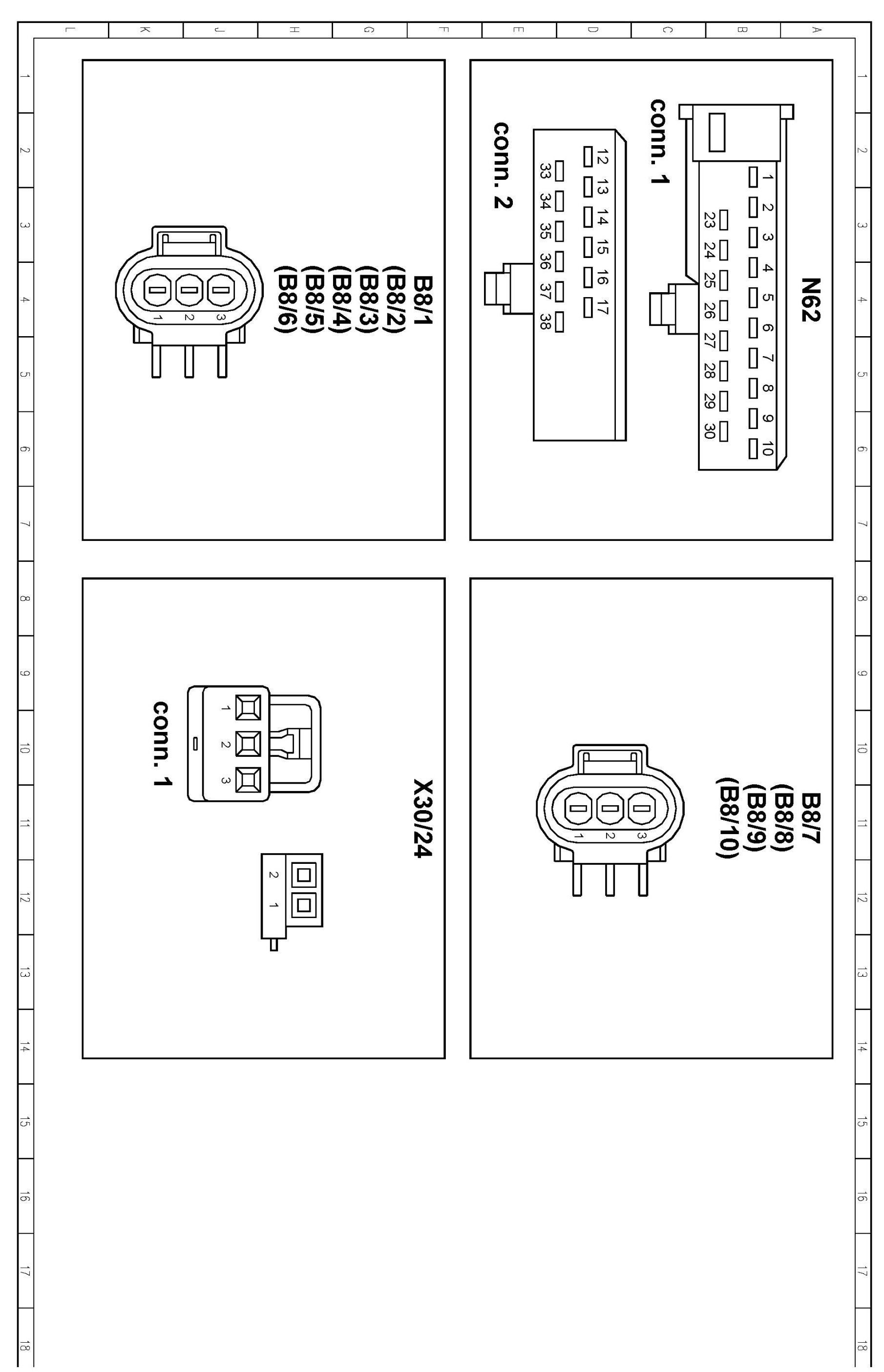

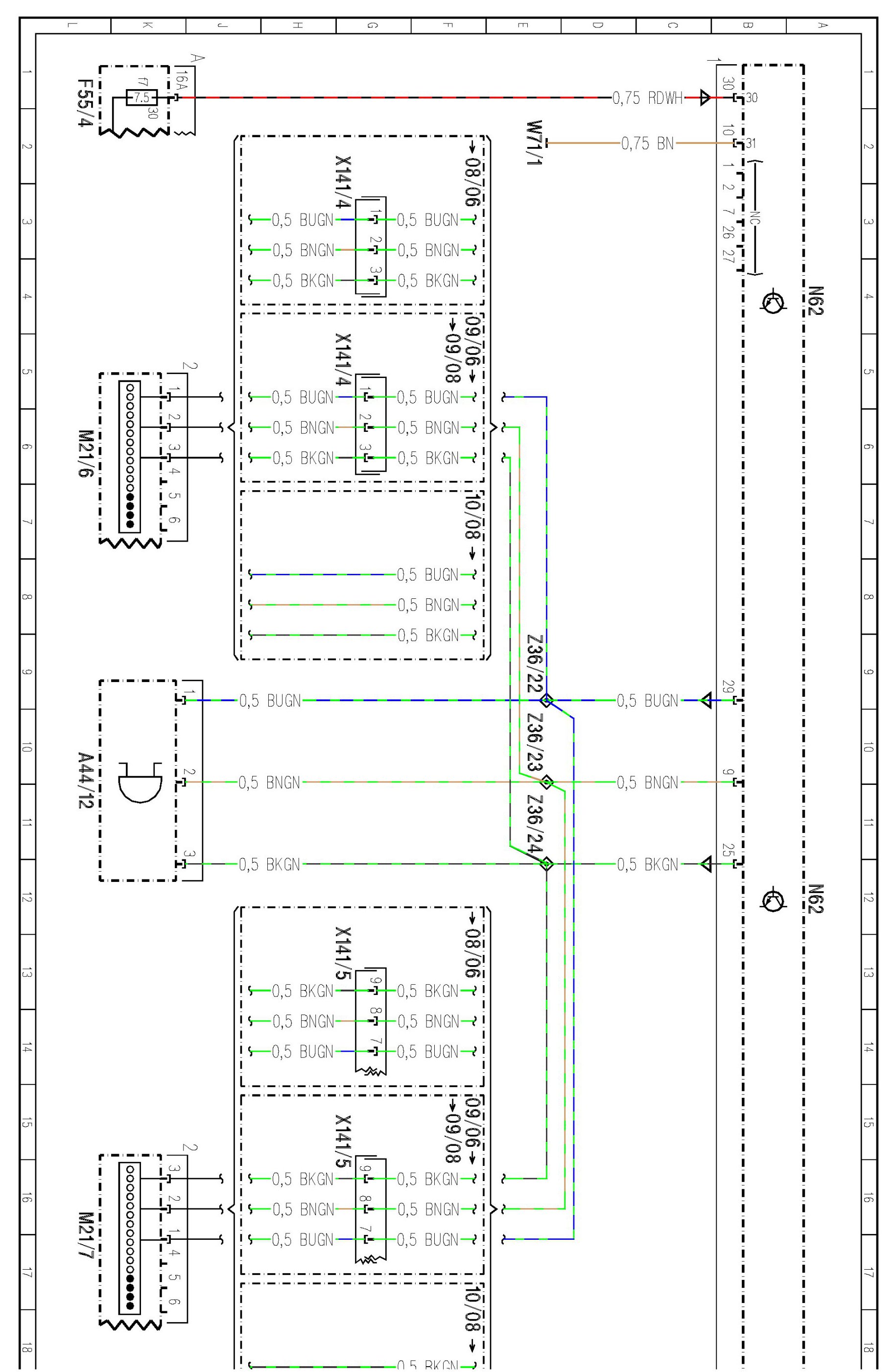

PE54.65-D-2101AA Parktronic System (PTS) Control Unit



PE54.65-D-2101AA Parktronic System (PTS) Control Unit

906 54 Electrical Systems - Equipment and Instruments
Model 906.1 /2 /6 /7
- with CODE (EZ8) Parktronic system (PTS)
