FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz Truck
>>
2012
>>
Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antenna
Antenna

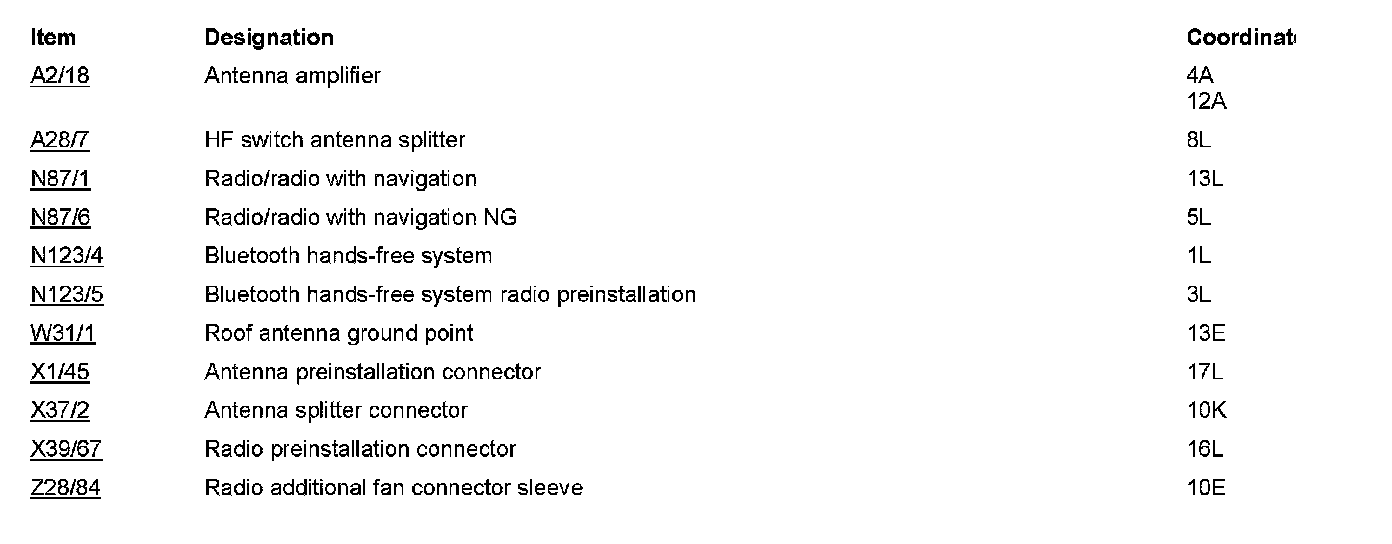

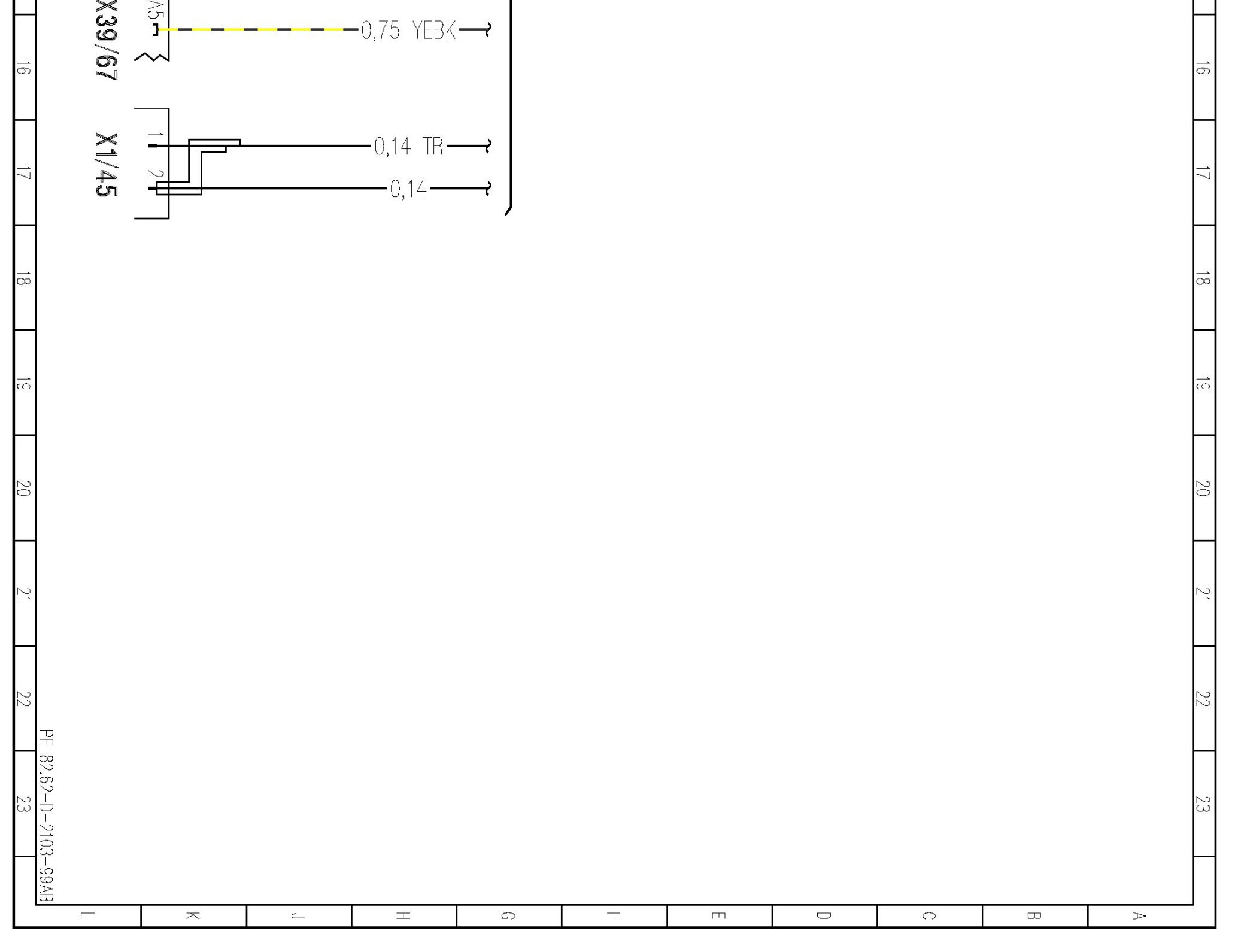

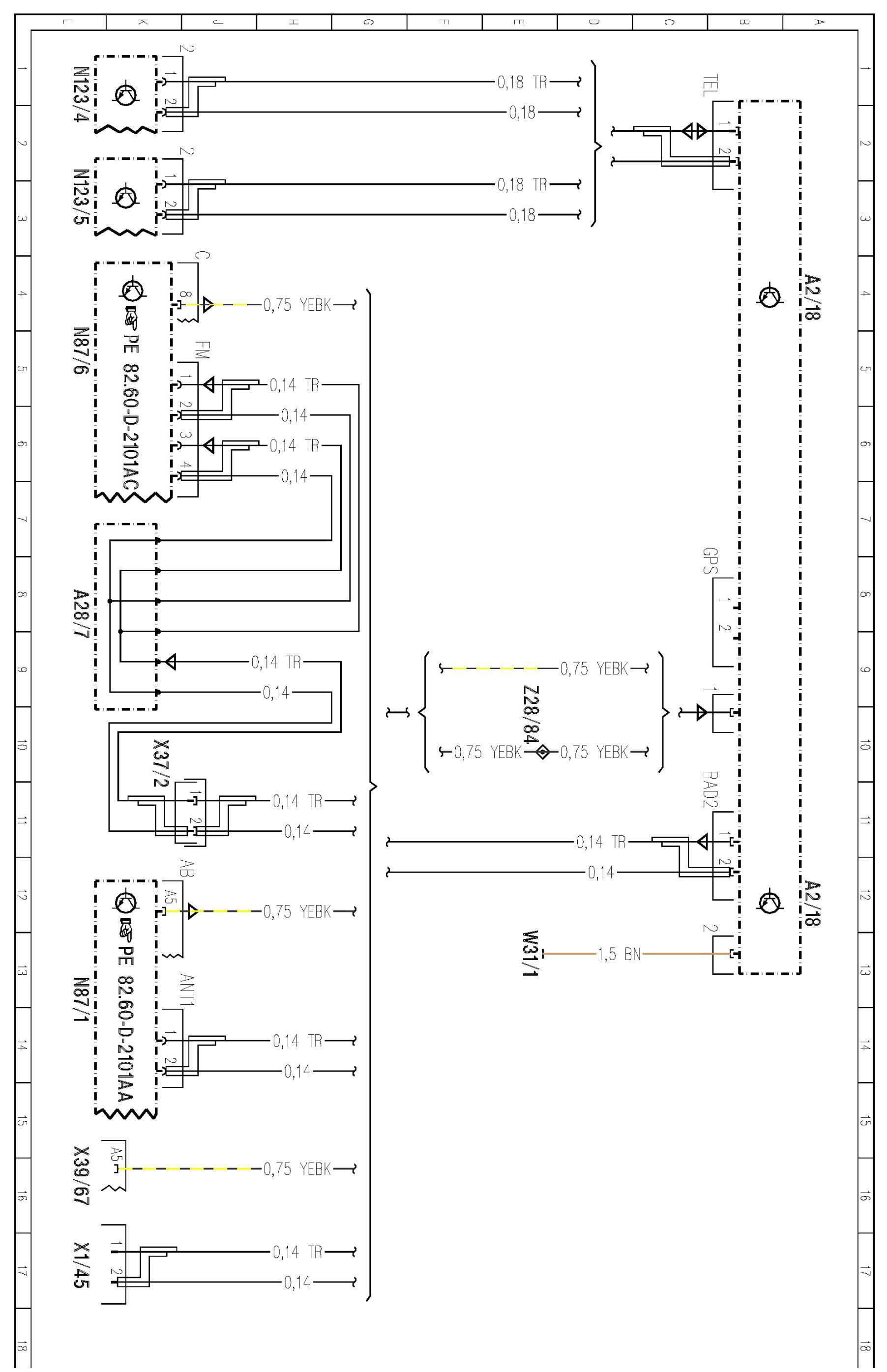

PE82.62-D-2103AB Antenna Module
906 82 Electrical Systems - Body
Model 906.1 /2 /6 /7 as of 09/01/09
