Parking Brake Shoe: Service and Repair

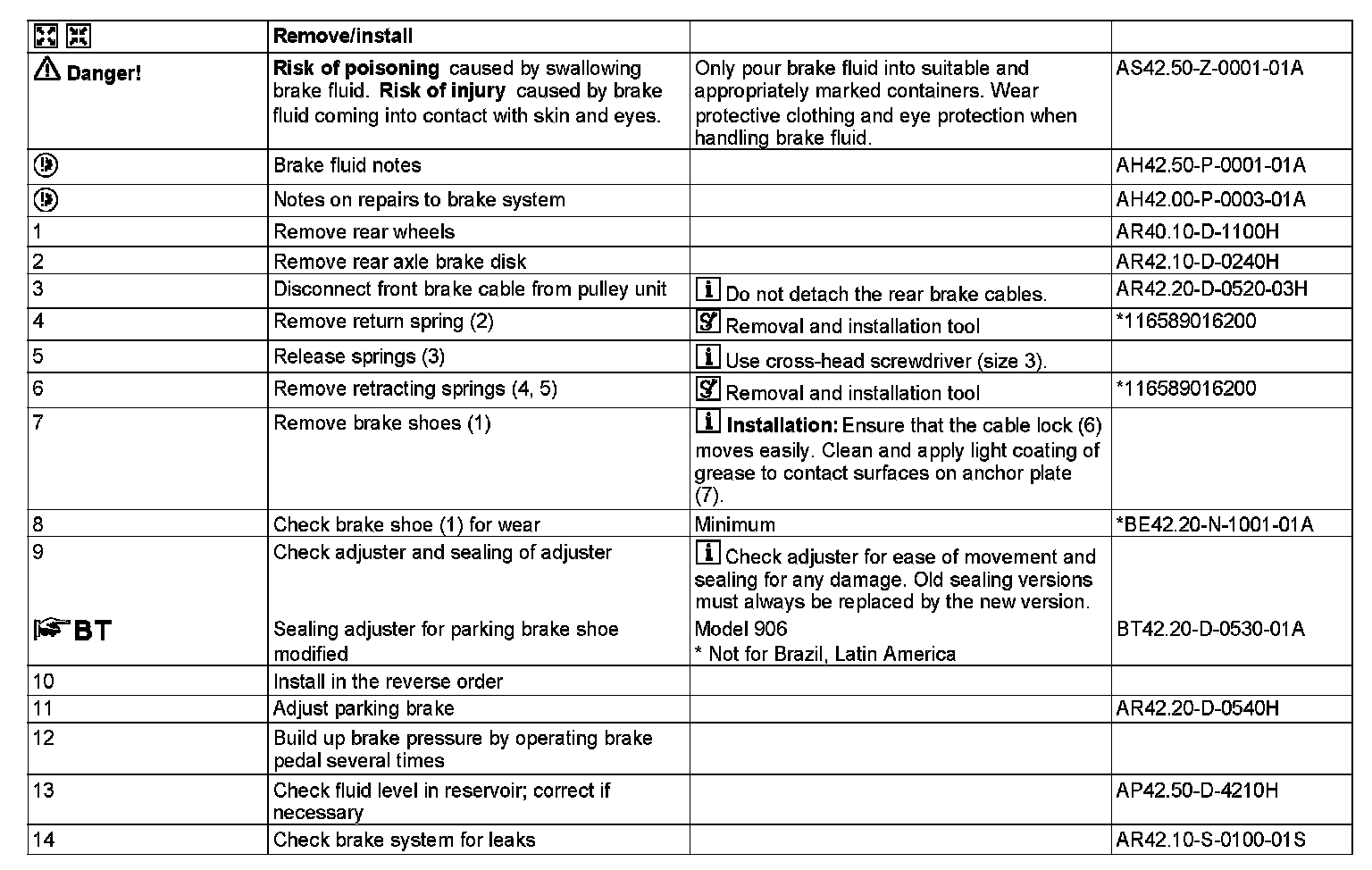

AR42.20-D-0530HA Remove/Install Brake Shoes Of Parking Brake

MODEL 906.15 /25 /65
- with REAR AXLE 741.413 /414 /416 /420

MODEL 900.65
- with REAR AXLE 741.413 /414 /420

MODEL 8AC906.153 /155 /655 /657
- with REAR AXLE 741.429
- with CODE (ZL3) National version for Latin America

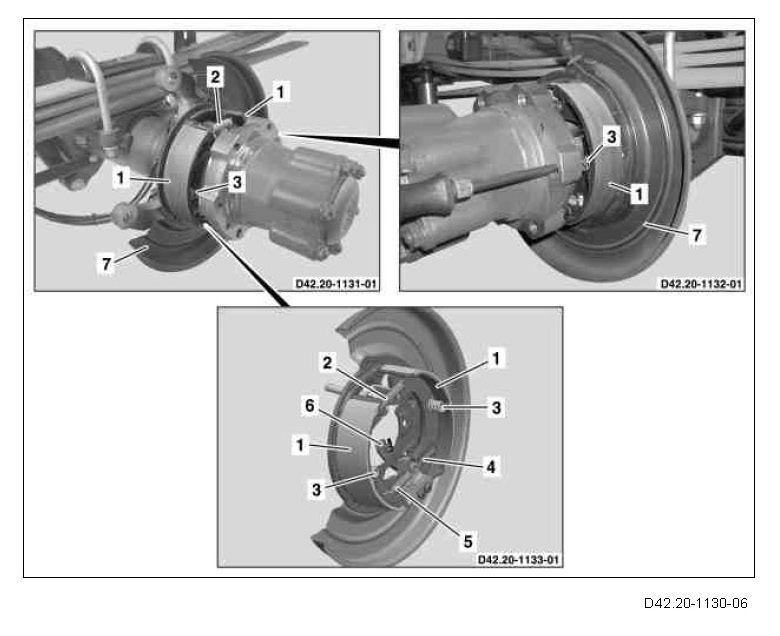

1 Brake shoes
2 Return spring
3 Pressure spring
4 Return spring
5 Return spring
6 Cable lock
7 Anchor plate










116 589 01 62 00, Removal and installation tool
